Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDM-20008SPEAKER 8OHM 300MW TOP PORT 92DB Same Sky (Formerly CUI Devices) |
3,898 |
|
Datasheet |
CDM | Tray | Active | Magnetic | General Purpose | 448 Hz ~ 7 kHz | 560Hz | 8 Ohms | 92.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
CMS-15113-076S-67SPEAKER 6OHM 700MW TOP PORT 92DB Same Sky (Formerly CUI Devices) |
2,506 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CVS-1508SPEAKER 8OHM 300MW TOP PORT 73DB Same Sky (Formerly CUI Devices) |
6,100 |
|
Datasheet |
CVS | Tray | Active | Magnetic | General Purpose | 1.36 kHz ~ 20 kHz | 1700Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.591" Dia (15.00mm) |
|
CVS-1708SPEAKER 8OHM 200MW TOP PORT 74DB Same Sky (Formerly CUI Devices) |
1,538 |
|
Datasheet |
CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.669" Dia (17.00mm) |
|
CMS-28528N-L152ASPEAKER 8OHM 2W TOP PORT 99DB Same Sky (Formerly CUI Devices) |
308 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|

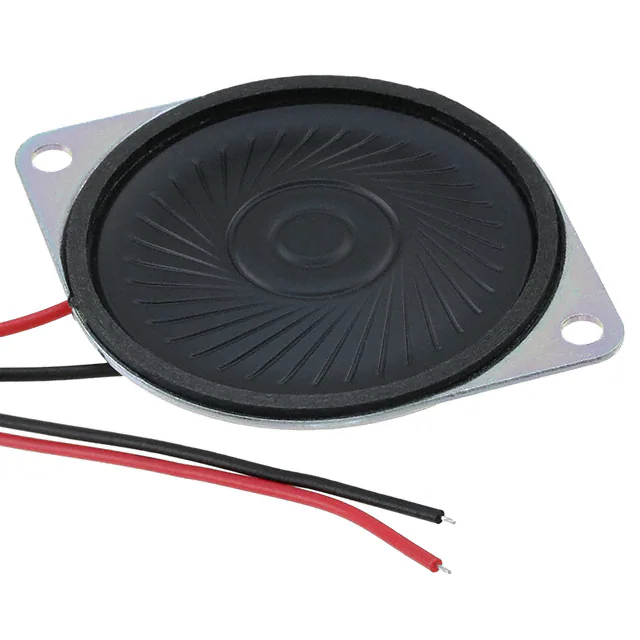

CMS-40504N-L152SPEAKER 4OHM 2W TOP PORT 100DB Same Sky (Formerly CUI Devices) |
7,645 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
CSS-66668NSPEAKER 8OHM 3W TOP PORT 101DB Same Sky (Formerly CUI Devices) |
405 |
|
Datasheet |
CSS | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 15 kHz | 200Hz | 8 Ohms | 101.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | Paper/Foam | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|

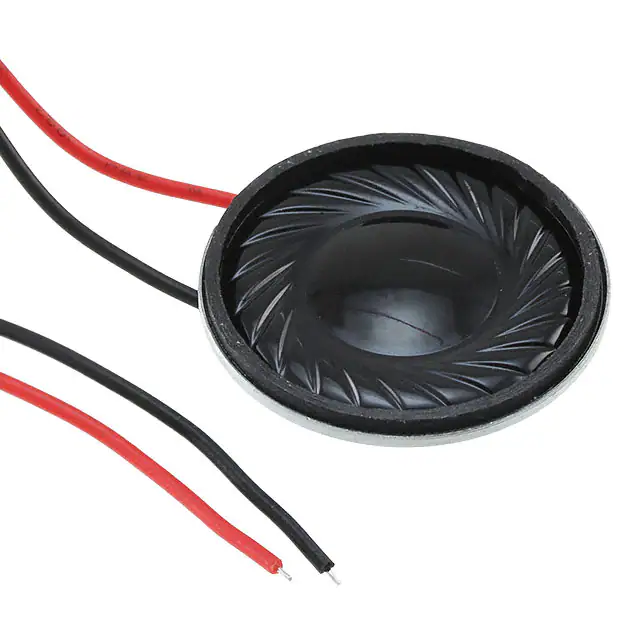

CMS-28588N-L152SPEAKER 8OHM 2W TOP PORT 99DB Same Sky (Formerly CUI Devices) |
24,963 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CLS0231MA-1-L152SPEAKER 8OHM 500MW TOP PORT 89DB Same Sky (Formerly CUI Devices) |
1,446 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 536 Hz ~ 20 kHz | 670Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CDS-25148-L100SPEAKER 8OHM 1.5W TOP PORT 73DB Same Sky (Formerly CUI Devices) |
15,531 |
|
Datasheet |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
