Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS-250F38CP01-04SPEAKR 6.26OHM 200W TOP 85.5DB |
0 |
|
Datasheet |
SBS | Bulk | Obsolete | Magnetic | Subwoofer | 40 Hz ~ 200 Hz | 49.96Hz | 6.26 Ohms | 85.50 | 1W/1M | Half Space Sensitivity | 200 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 10.374" Dia (263.50mm) |
|
SBS-300F38CP01-04SPEAKR 6.09OHM 250W TOP 85.4DB |
0 |
|
Datasheet |
SBS | Bulk | Active | Magnetic | Subwoofer | 40 Hz ~ 200 Hz | 36.23Hz | 6.09 Ohms | 85.40 | 1W/1M | Half Space Sensitivity | 250 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 12.047" Dia (306.00mm) |
|
SBS-300P00CP01-00SPEAKER TOP PORT ROUND 12 INCH |
0 |
|
Datasheet |
SBS | Bulk | Active | - | Passive Radiator | - | - | - | - | 1W/1M | Half Space Sensitivity | - | - | Top | Round | Paper, Coated | - | - | - | None | 12.047" Dia (306.00mm) |
|
SDS-135F25CP05-04SPEAKR 3.68OHM 40W TOP PT 85.8DB |
0 |
|
Datasheet |
SDS | Bulk | Obsolete | Magnetic | Subwoofer | 20 Hz ~ 3 kHz | 57.31Hz | 3.68 Ohms | 85.80 | 1W/1M | Half Space Sensitivity | 40 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 5.583" Dia (141.80mm) |
|
SDS-160F25CP01-06SPEAKER 6.44OHM 60W 88.5DB 6.5" |
0 |
|
- |
SDS | Bulk | Active | Magnetic | Woofer | 40 Hz ~ 4 kHz | 44.75Hz | 6.44 Ohms | 88.50 | 1W/1M | Half Space Sensitivity | 60 W | - | - | - | Paper, Coated | Ferrite | - | - | - | - |
|
SLS-135F32CP01-04SPEAKR 3.14OHM 50W TOP PT 82.6DB |
0 |
|
Datasheet |
SLS | Bulk | Obsolete | Magnetic | Woofer | 50 Hz ~ 5 kHz | 51.7Hz | 3.14 Ohms | 82.60 | 1W/1M | Half Space Sensitivity | 50 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | - |
|
|
SLS-160F32PR02-08SPEAKER 6.23OHM 25W TOP PORT |
0 |
|
Datasheet |
SLS | Bulk | Active | Magnetic | Woofer | 20 Hz ~ 3 kHz | 36.27Hz | 6.23 Ohms | - | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | - | Ferrite | - | - | Solder Eyelet(s) | - |
|
SLS-85S25CP04-08SPEAKR 8.45OHM 25W TOP PT 83.3DB |
0 |
|
- |
SLS | Bulk | Active | Magnetic | Woofer | 74 Hz ~ 2.5 kHz | 73.74Hz | 8.45 Ohms | 83.30 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.134" Dia (105.00mm) |
|
TC5FC02-04SPEAKER 4OHM 5W TOP PORT 86.3DB |
0 |
|
- |
TC | Bulk | Obsolete | Magnetic | Full Range | 200 Hz ~ 20 kHz | 203.04Hz | 4 Ohms | 86.30 | 1W/1M | Half Space Sensitivity | 5 W | - | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.594" L x 1.594" W (40.50mm x 40.50mm) |
|
TC8FD00-08SPEAKR 8.14OHM 25W TOP PT 85.1DB |
0 |
|
Datasheet |
TC | Bulk | Obsolete | Magnetic | Full Range | 130 Hz ~ 20 kHz | 124.86Hz | 8.14 Ohms | 85.10 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.189" L x 3.189" W (81.00mm x 81.00mm) |
|
TPY05W04O0089SPEAKR 5.08OHM 25W TOP PT 87.2DB |
0 |
|
Datasheet |
TPY | Bulk | Obsolete | Magnetic | General Purpose | 20 Hz ~ 4 kHz | 87.42Hz | 5.08 Ohms | 87.20 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Polypropylene (PP) | Ferrite | - | - | Solder Eyelet(s) | 5.181" L x 5.181" W (131.60mm x 131.60mm) |
|
XT19NC30-04SPEAKR 3.59OHM 80W TOP PT 85.9DB |
0 |
|
- |
XT | Bulk | Obsolete | Magnetic | Tweeter | 1 kHz ~ 20 kHz | 972.68Hz | 3.59 Ohms | 85.90 | 1W/1M | Half Space Sensitivity | 80 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.610" Dia (66.30mm) |
|
XT25SC30-04SPEAKR 3.58OHM 100W TOP 86.8DB |
0 |
|
Datasheet |
XT | Bulk | Active | Magnetic | Tweeter | 1 kHz ~ 20 kHz | 648.81Hz | 3.58 Ohms | 86.80 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 4.094" Dia (104.00mm) |
|
XXLS-300F50AL01-04SPEAKER 3.03OHM 120W TOP PT 85DB |
0 |
|
Datasheet |
XXLS | Bulk | Obsolete | Magnetic | Subwoofer | 20 Hz ~ 4 kHz | 22.4Hz | 3.03 Ohms | 85.00 | 1W/1M | Half Space Sensitivity | 120 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 12.122" Dia (307.90mm) |
|
HDS-P835023SPEAKR 5.78OHM 30W TOP PT 82.6DB |
0 |
|
Datasheet |
HDS | Bulk | Active | Magnetic | Woofer | 20 Hz ~ 5 kHz | 82.18Hz | 5.78 Ohms | 82.60 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 4.740" Dia (120.40mm) |
|
HDS-P835024SPEAKR 6.31OHM 30W TOP PT 85.2DB |
0 |
|
Datasheet |
HDS | Bulk | Active | Magnetic | Woofer | 20 Hz ~ 5 kHz | 72.29Hz | 6.31 Ohms | 85.20 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 5.976" Dia (151.80mm) |
|
HDS-P835025SPEAKR 7.03OHM 55W TOP PT 86.1DB |
0 |
|
Datasheet |
HDS | Bulk | Obsolete | Magnetic | Woofer | 20 Hz ~ 3 kHz | 38.24Hz | 7.03 Ohms | 86.10 | 1W/1M | Half Space Sensitivity | 55 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 6.693" Dia (170.00mm) |
|
HDS-P835026SPEAKR 6.98OHM 75W TOP PT 86.4DB |
0 |
|
Datasheet |
HDS | Bulk | Active | Magnetic | Woofer | 20 Hz ~ 3 kHz | 31.12Hz | 6.98 Ohms | 86.40 | 1W/1M | Half Space Sensitivity | 75 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 8.858" Dia (225.00mm) |
|

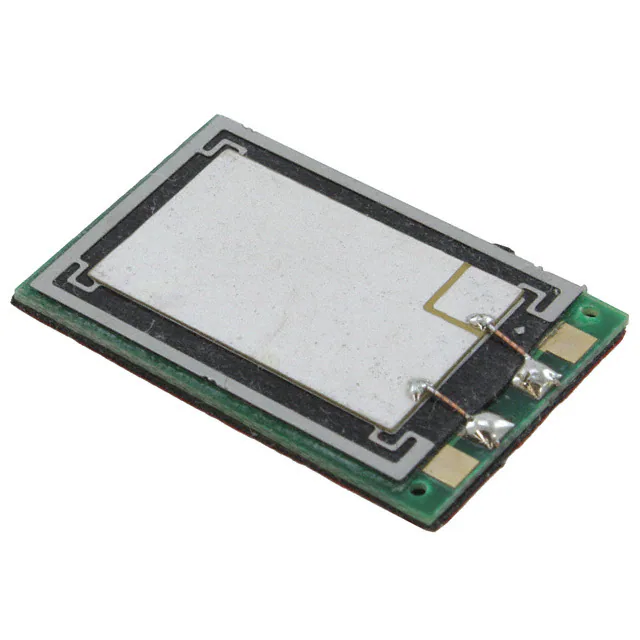

APS2513S-T-RSPEAKER 3OHM TOP PORT 83DB RECT |
0 |
|
Datasheet |
APS | Tray | Obsolete | Piezo | General Purpose | 300 Hz ~ 20 kHz | 1300Hz | 3 Ohms | 83.00 | 50mm | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.992" L x 0.654" W (25.20mm x 16.60mm) |
|
SDF-250F75PR01-06SPEAKR 4.92OHM 300W TOP 86.6DB |
0 |
|
Datasheet |
SDF | Bulk | Obsolete | Magnetic | Subwoofer | 25 Hz ~ 400 kHz | 33.50Hz | 4.92 Ohms | 86.60 | 1W/1M | Half Space Sensitivity | 300 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 10.598" Dia (269.20mm) |
