Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2334R 10 ND 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 120 Hz ~ 16 kHz | 165Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | - | 20 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
XT19TD00-04SPEAKR 3.28OHM 120W TOP 85.2DB |
0 |
|
Datasheet |
XT | Bulk | Active | Magnetic | Tweeter | 700 Hz ~ 20 kHz | 762.77Hz | 3.28 Ohms | 85.20 | 1W/1M | Half Space Sensitivity | 120 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 3.701" Dia (94.00mm) |
|
EH-23044-000SPEAKR 1.055 KOHM TOP PORT 103DB |
0 |
|
Datasheet |
EH | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.4 kHz | - | 1.055 kOhms | 103.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) |
|
|
EH-23052-000SPEAKER 2.15 KOHM TOP PORT 103DB |
0 |
|
Datasheet |
EH | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 2.15 kOhms | 103.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) |
|
|
EH-23063-000SPEAKR 1.055 KOHM TOP PORT 103DB |
0 |
|
Datasheet |
EH | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.4 kHz | - | 1.055 kOhms | 103.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) |
|
|
EH-27250-000SPEAKER RECT |
0 |
|
- |
EH | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) |
|
FED-27288-I06SPEAKER 100OHM SIDE PORT 102.5DB |
0 |
|
Datasheet |
FED | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 100 Ohms | 102.50 | - | - | - | - | Side | Rectangular | - | Ferrite | - | - | Solder Pads | - |
|
|
9003DT 94 4 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 1.2 kHz ~ 22 kHz | 1.9kHz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Quick Connect | 3.701" Dia (94.00mm) |
|
|
9004DT 94 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 1.2 kHz ~ 22 kHz | 1.9kHz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Quick Connect | 3.701" Dia (94.00mm) |
|
|
WS 17 E - 8 OHMSPEAKER 8OHM 60W TOP PORT 88DB |
0 |
|
Datasheet |
- | Bulk | Active | Magnetic | Woofer | 45 Hz ~ 7 kHz | 45Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 60 W | 90 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - |
|
|
WS 17 E - 4 OHMSPEAKER 4OHM 60W TOP PORT 88DB |
0 |
|
Datasheet |
- | Bulk | Active | Magnetic | Woofer | 45 Hz ~ 7 kHz | 45Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 60 W | 90 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | - |
|
|
FED-30048-I04SPEAKER 29OHM TOP PORT 102DB |
0 |
|
Datasheet |
FED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4.4 kHz | - | 29 Ohms | 102.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
4480PL 8 RV 4 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 140 Hz ~ 19 kHz | - | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | User Defined | Round | - | - | - | - | Wire Leads | 3.394" Dia (86.20mm) |
|

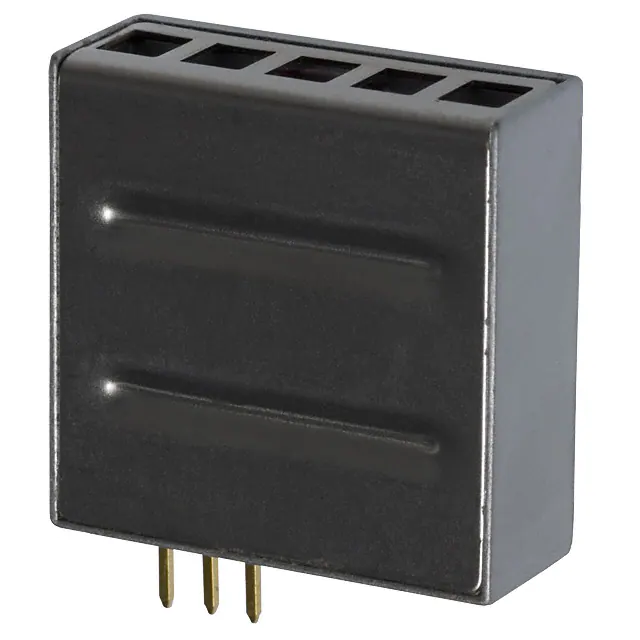

CB-22850-000SPEAKER 48OHM TOP PORT |
0 |
|
Datasheet |
CB | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 300 Hz ~ 4.5 kHz | - | 48 Ohms | - | - | Sensitivity | - | - | Top | Square | - | - | - | - | PC Pins | 0.990" L x 1.000" W (25.15mm x 25.40mm) |
|
CB-23817-000SPEAKER 48OHM TOP PORT 80DB |
0 |
|
Datasheet |
CB | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 700 Hz ~ 4 kHz | - | 48 Ohms | 80.00 | - | Sensitivity | - | - | Top | Square | - | - | - | - | PC Pins | 0.990" L x 1.000" W (25.15mm x 25.40mm) |
|
|
RDB-33608-000DUAL RECEIVER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FEH-23819-I02RECEIVER FERROFLUID DAMPED |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FEH-27233-I06RECEIVER FERROFLUID DAMPED |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FED-27926-I04SPEAKER RECVR FERROFLUID DAMPED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4572FX 16 4 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 60 Hz ~ 20 kHz | 105Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Polypropylene (PP) | - | - | - | Solder Eyelet(s) | 6.496" Dia (165.00mm) |
