Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2130FR 10 WP BLACK 4 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 80 Hz ~ 16 kHz | 120Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round | Plastic | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect | - |
|
|
EF-27428-116SPEAKER Z=92.5 OHMS PORT ON SIDE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EF-28395-055SPEAKER Z=74 OHMS PORT ON END |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BK-21604-000SPEAKER 6 KOHM TOP PORT 126DB |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 6 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|

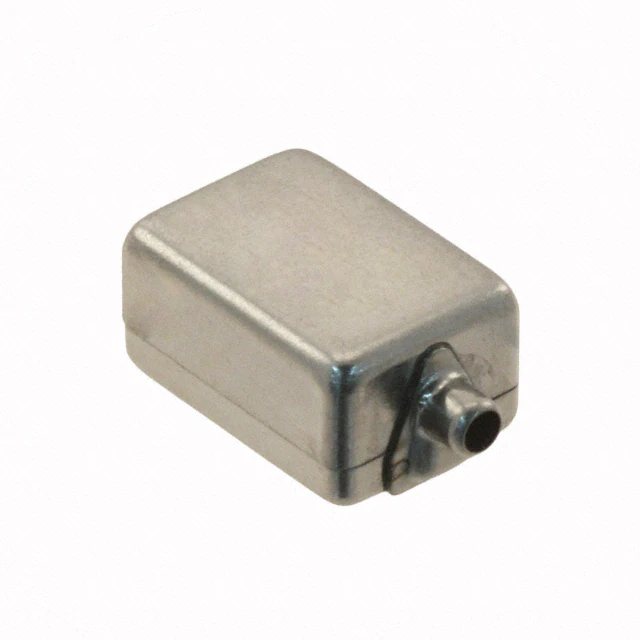

BK-28562-000SPEAKER 35OHM TOP PORT 123DB |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 35 Ohms | 123.00 | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
BK-21600-000SPEAKER 730OHM TOP PORT 126DB |
0 |
|
Datasheet |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 730 Ohms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|

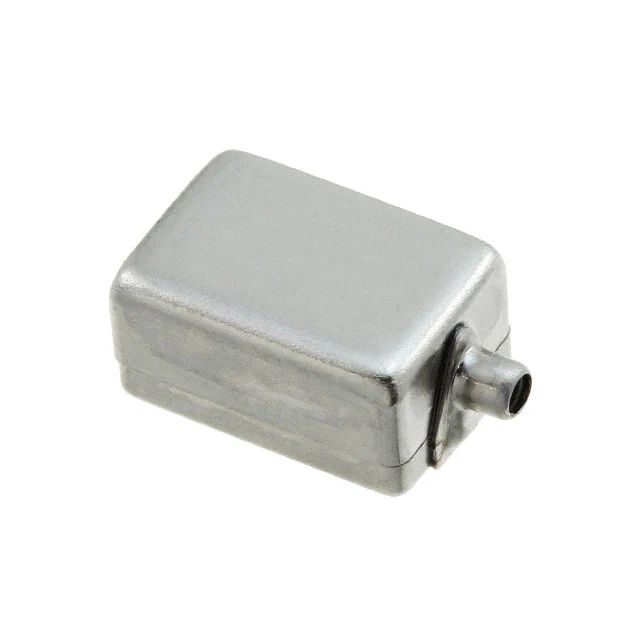

BK-21606-000SPEAKER 1.5 KOHM TOP PORT 126DB |
0 |
|
Datasheet |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 1.5 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
BK-21613-000SPEAKER 1.2 KOHM TOP PORT 126DB |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.2 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
BK-23134-000SPEAKER 730OHM TOP PORT 126DB |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 730 Ohms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
BK-26773-000SPEAKER RECTANGULAR |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - |
|
|
BK-28385-000SPEAKER RECTANGULAR |
0 |
|
Datasheet |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - |
|
|
BK-26833-000SPEAKER 48OHM 82DB |
0 |
|
Datasheet |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 300 Hz ~ 4.5 kHz | - | 48 Ohms | 82.00 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CI-22955-017SPEAKER Z=20 OHMS PORT ON END |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CI-28267-A01SPEAKER Z=75 OHMS PORT ON SIDE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CI-28268-028SPEAKER Z=51 OHMS PORT ON END |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2133FR 13 WP BLACK 4 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 16 kHz | 100Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 5.906" Dia (150.00mm) |
|
|
2113FR 13 WP WHITE 4 OHM |
0 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 16 kHz | 100Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Plastic | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 5.906" Dia (150.00mm) |
|

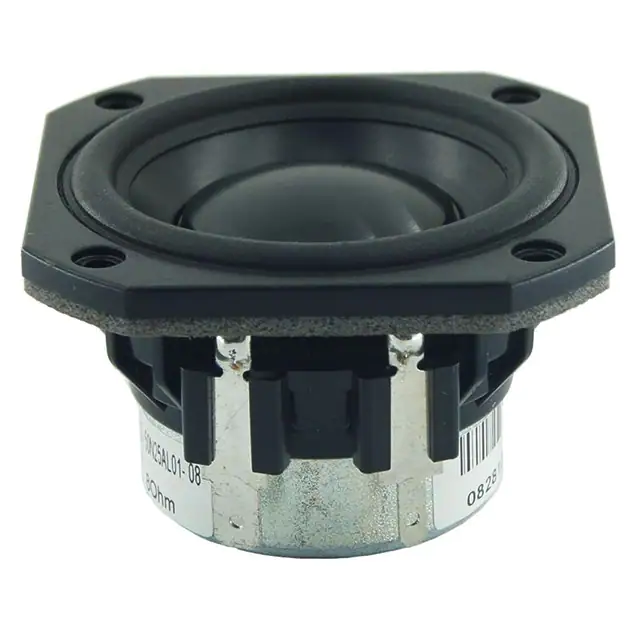

PLS-50N25AL01-08SPEAKR 6.91OHM 10W TOP PT 82.8DB |
0 |
|
Datasheet |
PLS | Bulk | Active | Magnetic | Full Range | 150 Hz ~ 20 kHz | 161.02Hz | 6.91 Ohms | 82.80 | 1W/1M | Half Space Sensitivity | 10 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd | - | - | Solder Eyelet(s) | 2.165" L x 2.165" W (55.00mm x 55.00mm) |
|

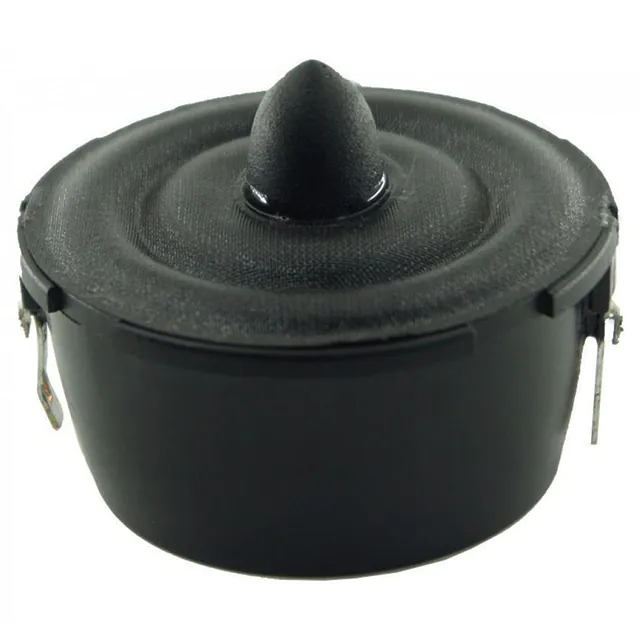

XT25SC40-04SPEAKR 3.79OHM 100W TOP 87.9DB |
0 |
|
Datasheet |
XT | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 1018.45Hz | 3.79 Ohms | 87.90 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 1.732" Dia (44.00mm) |
|

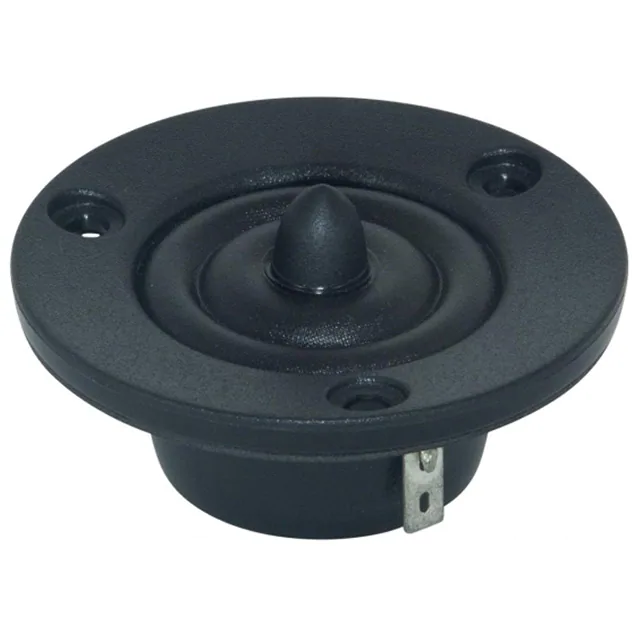

XT25SC50-04SPEAKER 3.68OHM 100W TOP PT 87DB |
0 |
|
Datasheet |
XT | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 874.91Hz | 3.68 Ohms | 87.00 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 2.559" Dia (65.00mm) |
