Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP4590A(D4,FSSR RELAY SPST-NC 1.2A 0-60V |
0 |
|
Datasheet |
TLP4590A | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.27VDC | 0 V ~ 60 V | 1.2 A | 600 mOhms | PC Pin | -40°C ~ 110°C | 6-DIP | cUL, UL, VDE | - | - |
|
|
TLP3146(FSSR RELAY SPST-NO 3.3A 0-30V |
20 |
|
Datasheet |
TLP3146 | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 30 V | 3.3 A | 50 mOhms | Gull Wing | -40°C ~ 110°C | 4-SOP | CSA, cUL, UL | - | - |
.JPG)
|
TLP3545A(FSSR RELAY SPST-NO 4A 0-60V |
0 |
|
Datasheet |
TLP3545A | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 60 V | 4 A | 60 mOhms | PC Pin | -40°C ~ 110°C | 6-DIP | CSA, cUL, UL, VDE | - | - |
|
|
TLP3109A(FSSR RELAY SPST-NO 3A 0-100V |
0 |
|
Datasheet |
TLP3109A | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 100 V | 3 A | 65 mOhms | Gull Wing | -40°C ~ 110°C | 6-SOP | UL | - | - |
|
|
TLP3825F(LF4,FSSR RELAY SPST-NO 1.5A 0-200V |
22 |
|
Datasheet |
TLP3825F | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 200 V | 1.5 A | 500 mOhms | Gull Wing | -40°C ~ 110°C | 8-SMD | CSA, cUL, UL | - | - |
|

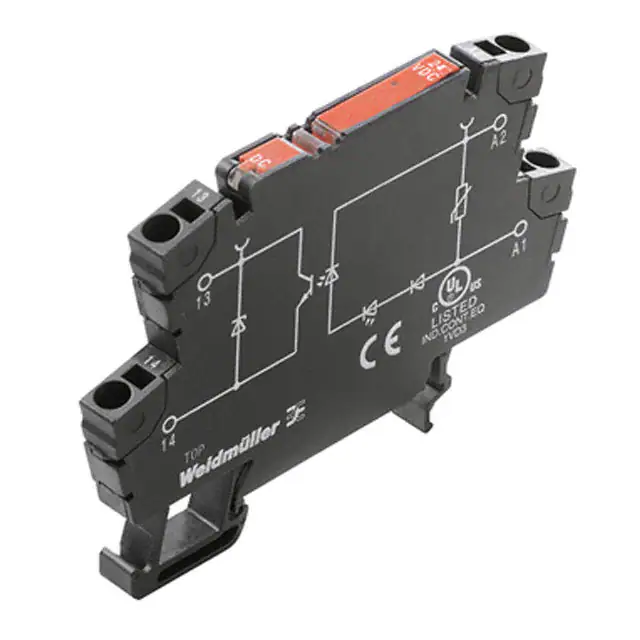

8950770000SSR RELAY SPST-NO 100MA 5-48V |
0 |
|
Datasheet |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
|
RSS-TD1A240ZPTRIAC OUTPUT SWITCHING DEVICE, D |
0 |
|
Datasheet |
RSS | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 480 V | 40 A | - | Screw Terminal | -30°C ~ 80°C | - | CE | - | - |
|

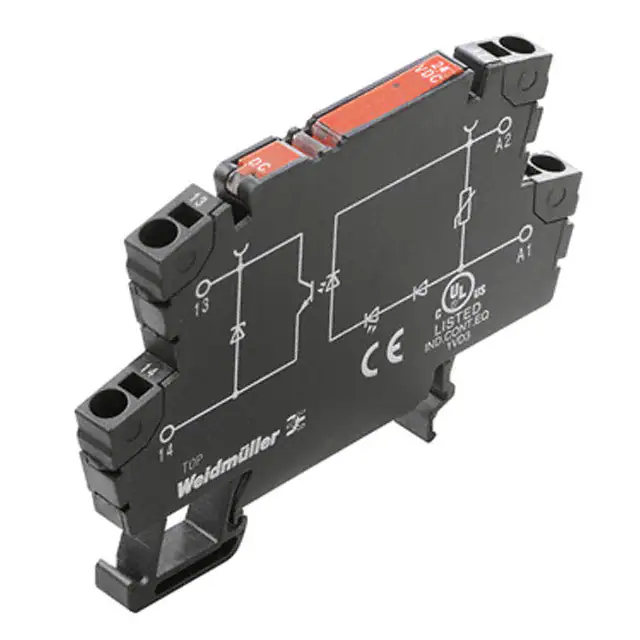

8950760000SSR RELAY SPST-NO 100MA 5-48V |
2 |
|
Datasheet |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 5 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8950970000SSR RELAY SPST-NO 500MA 5-48V |
0 |
|
Datasheet |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 48 V | 500 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8950960000SSR RELAY SPST-NO 500MA 5-48V |
0 |
|
Datasheet |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 5 V ~ 48 V | 500 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8951180000SSR RELAY SPST-NO 100MA 24-230V |
0 |
|
Datasheet |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 230 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
4061190000SSR RELAY SPST-NO 2A 3-33V |
1 |
|
Datasheet |
SSS | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 18 ~ 30VDC | 3 V ~ 33 V | 2 A | - | PC Pin | -20°C ~ 60°C | - | - | - | - |
|
4061180000SSR RELAY SPST-NO 100MA 3-48V |
0 |
|
Datasheet |
SSS | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 16 ~ 30VDC | 3 V ~ 48 V | 100 mA | - | PC Pin | -20°C ~ 60°C | - | - | - | - |
|
ED24D5RSSR RELAY SPST-NO 5A 24-280V |
5 |
|
Datasheet |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 24 V ~ 280 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
2618790000SSR RELAY SPST-NO 100MA 0-48V |
3 |
|
Datasheet |
TERMSERIES | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
|
ED10D5SSR RELAY SPST-NO 5A 1-80V |
0 |
|
Datasheet |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 5 ~ 15VDC | 1 V ~ 80 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
|
2905294SSR RELAY SPST-NO 100MA 3-48V |
0 |
|
Datasheet |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 19.2 ~ 28.8VDC | 3 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
2900361SSR RELAY SPST-NO 100MA 3-48V |
5 |
|
Datasheet |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 230VAC/DC | 3 V ~ 48 V | 100 mA | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
SSP1A110M7TSSR RELAY SPST-NO 10A 24-300V |
0 |
|
Datasheet |
Harmony | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 300 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, EAC, UL | - | - |
|
8937830000SSR RELAY SPST-NO 1A 12-300V |
2 |
|
Datasheet |
MOS | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 12 V ~ 300 V | 1 A | - | Screw Terminal | -25°C ~ 50°C | - | cULus | - | - |
Solid State Relays (SSR) Electronic Components
Explore Solid State Relays (SSR) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
