Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S202031MS02GSWITCH SLIDE DPDT 6A 125V |
51 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Gold | Through Hole | PC Pin | - |
|
1103M2S6CBE2SWITCH SLIDE SPDT 0.4VA 20V |
38 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 12.32mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GH39WW00001SWITCH SLIDE SPDT 0.4VA 20V |
54 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
1201M1T3ZQE2SWITCH SLIDE DPDT 6A 120V |
9 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
S802C31S2WCQSWITCH SLIDE DPDT 15A 125V |
40 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On | 15A (AC) | 125 V | - | Snap on Cap | 5.08mm | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Red Actuator |
|
1201M2S3V4QE2SWITCH SLIDE DPDT 6A 120V |
37 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
ES21MABESWITCH SLIDE DPDT 0.4VA 20V |
10 |
|
Datasheet |
ES | Tray | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
1201M2S4ABE2SWITCH SLIDE DPDT 0.4VA 20V |
9 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.88mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1203M2S3V3BE2SWITCH SLIDE DPDT 0.4VA 20V |
15 |
|
Datasheet |
1000 | Tray | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

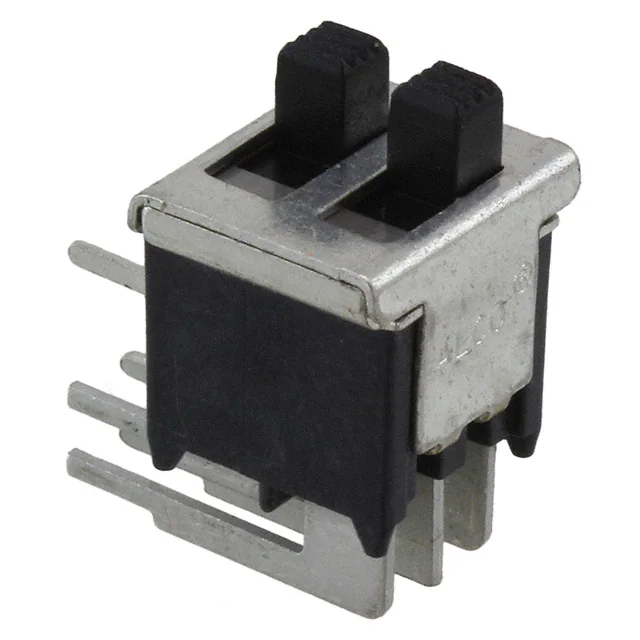

1825014-2SWITCH SLIDE SPDTX2 0.4VA 20V |
97 |
|
Datasheet |
TSS | Bulk | Active | SPDT x 2 | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
SQR31103LASWITCH SLIDE SPST 2.5A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
SQR31103GYSWITCH SLIDE SPST 2.5A 120V |
10 |
|
Datasheet |
Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
MFP 201 N-RASWITCH SLIDE ON - ON |
790 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 30 V | Standard | 7.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MFP 201 NSWITCH SLIDE ON - ON |
470 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | On-On | 350mA (DC) | - | 30 V | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 113 DSWITCH SLIDE ON - ON |
500 |
|
Datasheet |
MFP | Bag | Active | SPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 211 NSWITCH SLIDE ON - ON |
734 |
|
Datasheet |
MFP | Box | Active | DPDT | Non-Shorting (BBM) | On-On | 350mA (DC) | - | 30 V | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 223 PSWITCH SLIDE ON ON ON |
648 |
|
Datasheet |
MFP | Box | Active | DP3T | Shorting (MBB) | On-On-On | 350mA (DC) | - | 30 V | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 213 NSWITCH SLIDE ON - ON |
30 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MMP 1010 D-RASWITCH SLIDE ON - ON |
38 |
|
Datasheet |
MMP | Tube | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | - | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
MMP 1010 DSWITCH SLIDE ON - ON |
38 |
|
Datasheet |
MMP | Tube | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | - | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
Slide Switches Electronic Components
Explore Slide Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
