Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GS-115-0105SWITCH SLIDE SPDT 500MA 125V |
0 |
|
Datasheet |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper Alloy | Silver | Through Hole | Press-Fit | - |
|
|
48ASDP1S5M3RBTSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.02mm | Copper Alloy | Gold | Through Hole | Quick Connect - 0.062" (1.5mm) | Epoxy Sealed Terminals |
|
|
48ASDP3T1M6RATSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP3S1M2QATSWITCH SLIDE DPDT 5A 125V |
0 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | PC Pin | Epoxy Sealed Terminals |
|
|
M42ASWITCH SLIDE 4PDT 300MA 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | 4PDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 9.00mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
M43RSWITCH SLIDE 4P3T 300MA 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | 4P3T | Not Specified | On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 10.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSS24AGSWITCH SLIDE DP4T 0.4VA 20V |
0 |
|
- |
MSS | Tray | Obsolete | DP4T | Not Specified | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.40mm | - | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

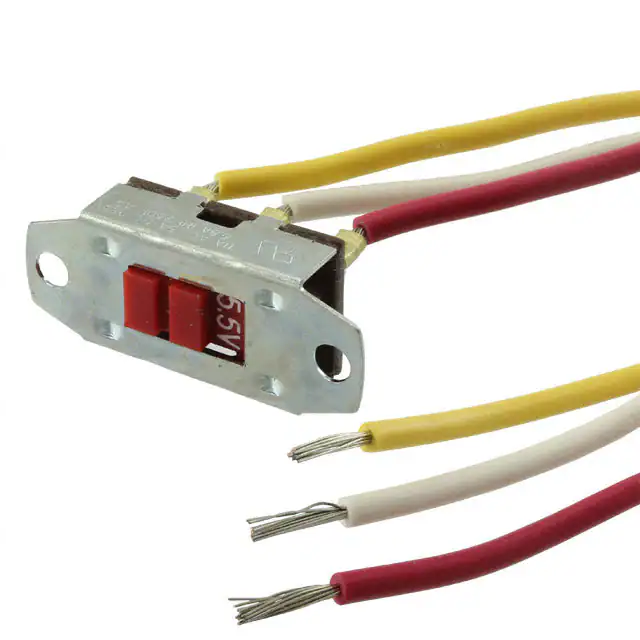

GF-1124-0012SWITCH SLIDE SPDT 11A 125V |
0 |
|
Datasheet |
GF | Bulk | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 11A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 0.79mm | Copper | Silver | Panel Mount | Wire Leads | 5.5V-12V Marking, Red Actuator |
|

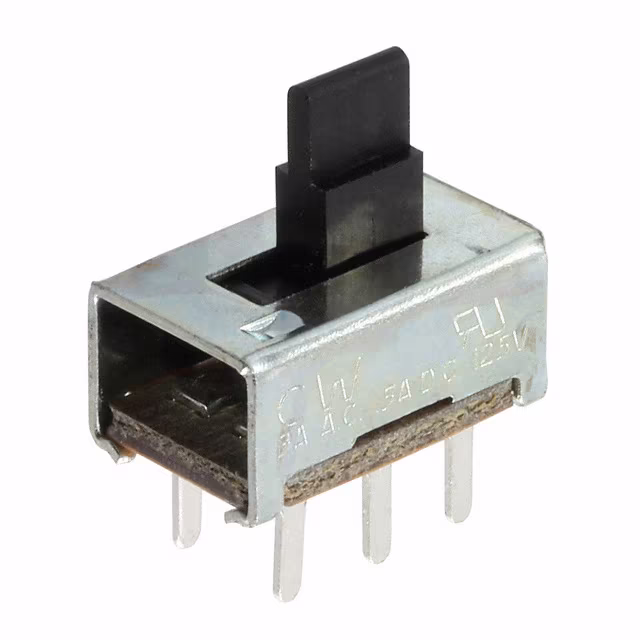

GF-126-0318SWITCH SLIDE DPDT 3A 125V |
0 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 7.75mm | Copper | Silver | Through Hole | PC Pin | - |
|

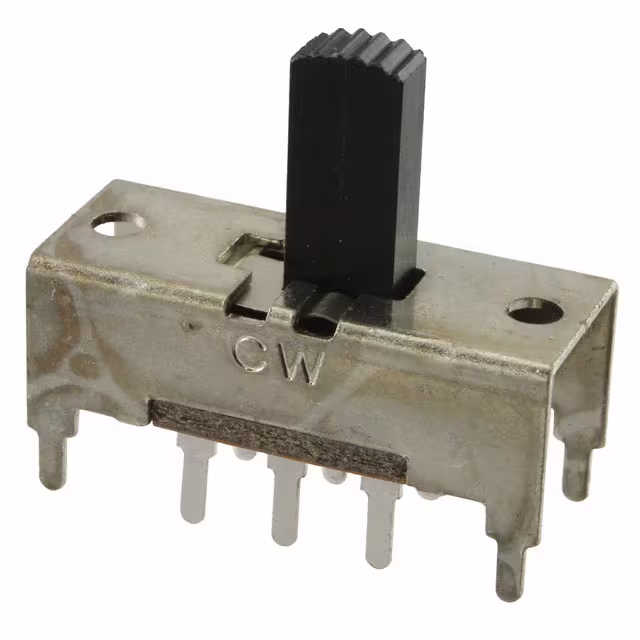

GPS-126-0002SWITCH SLIDE DPDT 500MA 125V |
0 |
|
Datasheet |
GPS | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 11.50mm | - | - | Through Hole | PC Pin | - |
|
|
AS23BH/328SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS12ASW30/USWITCH SLIDE SPDT 6A 125V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS13ASG13SWITCH SLIDE SPDT 0.4VA 28V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS20ASG13SWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
|
MS22ANW03/UCSWITCH SLIDE DPDT 6A 125V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS22BSA40SWITCH SLIDE DPDT 6A 125V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
MS22BSG13SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SS22SDP4/3SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
|
|
K2228ESWITCH SLIDE DPDT 16A 250V |
0 |
|
Datasheet |
2000 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | Flush | - | - | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|
AS2P-2M-10-ZSWITCH SLIDE DPDT 50MA 48V |
0 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
Slide Switches Electronic Components
Explore Slide Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
