Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SBH1147A2RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 104 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
3SBC1653A2RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/37 |
|
|
LSBW-2C-24ARELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
LSBW | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Max | 56W | 26.5 mA | Latching, Dual Coil | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 8 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
9-1617515-7RELAY GEN PURPOSE 4PDT 2A 18V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 18VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 64.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | 0.8 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617011-5RELAY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2-1617594-1RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Datasheet |
LS, CII | Bulk | Active | - | - | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Latching, Dual Coil | - | - | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

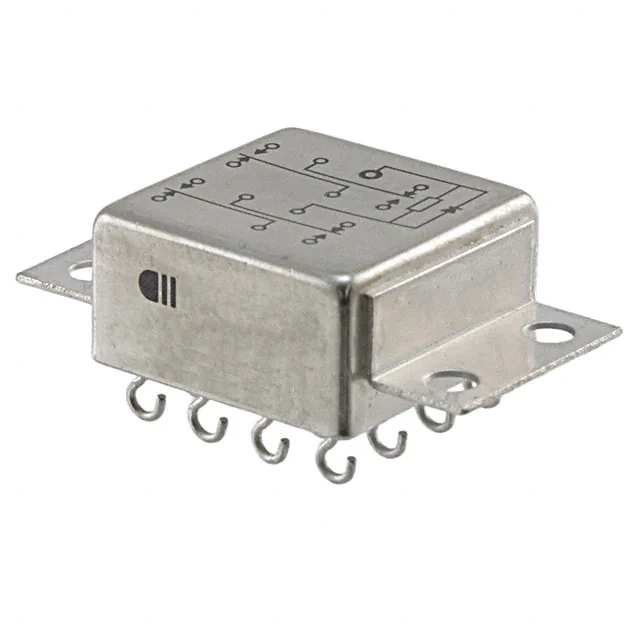

3SBH1230A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/53 |
|
3SBH1165A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/14 |
|
|
3SBM6004R2RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
- |
3SBM, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 82.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 7.6 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
|
6-1617090-1RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
- | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | - | - | Latching, Dual Coil | - | PC Pin | - | - | - | - | - | - | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBC2126A2RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Datasheet |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/38 |
|
|
4-1617090-2RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Datasheet |
LS, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 47.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 6 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
5-1617580-1RELAY GENERAL PURPOSE 4PDT 2A |
0 |
|
- |
3SBH, CII | Bulk | Active | Through Hole | - | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1261A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
0 |
|
- |
3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3-1617086-6RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
Datasheet |
3SBM, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 82.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 5.2 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
9-1617515-1RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 104.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 5.4 VDC | 0.6 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1393762-7RELAY GEN PURPOSE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4-1393819-7RELAY GEN PURPOSE 4PDT 200MA 20V |
0 |
|
Datasheet |
V23162, AXICOM | Bulk | Active | Socketable | 20VDC | 4PDT (4 Form C) | 200 mA | 30VAC, 36VDC - Max | - | 36.4 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617516-4RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 104.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 5.4 VDC | 0.6 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
2-1617076-9RELAY GENERAL PURPOSE 4PDT 2A 6V |
0 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 214.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.3 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
