Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-1617543-1RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7.4 VDC | 0.63 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617168-1RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7.4 VDC | 0.63 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
9-1617543-6RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10 VDC | 0.91 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617353-6RELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617170-5RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.22 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617162-5RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
1MS, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3 VDC | 0.24 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
4-1617520-4RELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Datasheet |
1MAD, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
7-1617543-0RELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Datasheet |
MST, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.7 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1393806-5RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
- |
V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
5-1617597-3RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
MAT, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Max | 28W | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.22 VDC | 3.5 ms | 7.5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
2960041RELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Datasheet |
REL-SG | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 141 mA | Non Latching | - | Plug In | - | - | - | - | 15 ms | 15 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
4-1617029-3RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
- |
HFW, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

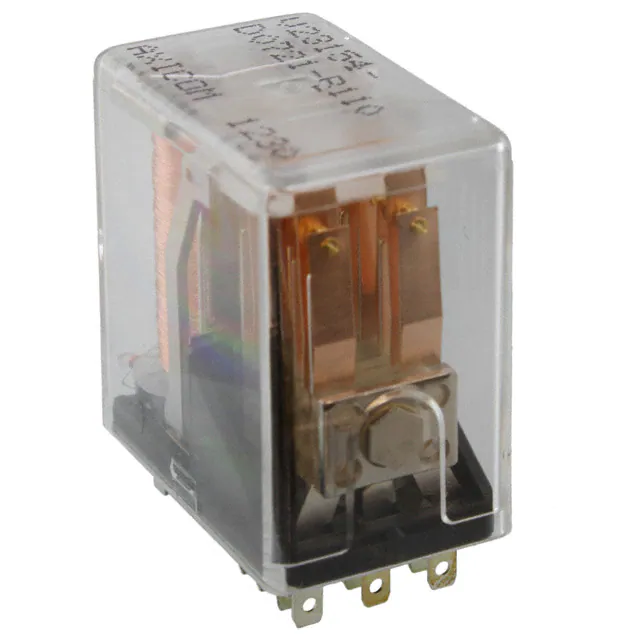

8-1393808-3RELAY GEN PURPOSE 4PDT 2A 24V |
1 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | 14.5 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617167-2RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7.8 VDC | 1.3 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
8-1617534-8RELAY GENERAL PURPOSE DPDT 2A 5V |
0 |
|
Datasheet |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
J1MAPT-18XLRELAY GEN PURPOSE SPDT 1A 18V |
0 |
|
- |
1MA, CII | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15.9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.7 VDC | 0.94 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
6-1617590-5RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
1MA, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3 VDC | 0.24 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617162-6RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Datasheet |
1MAT, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 89.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3 VDC | 0.24 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/5 |
|
|
1-1617162-5RELAY GEN PURPOSE SPDT 1A 18V |
0 |
|
Datasheet |
1MAT, CII | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.7 VDC | 0.94 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/5 |
|
|
JMSCT-12XLSRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Datasheet |
MST, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 16.7 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7.4 VDC | 0.63 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/3 |
