Selector Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Number of Positions | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Mounting Type | Termination Style | Panel Cutout Dimensions | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K16-422SWITCH SELECT 2POS DPDT 3A 250V |
36 |
|
Datasheet |
K16 | Bulk | Active | Standard | DPDT | 2 | On-On | 3A (AC/DC) | 250 V | 110 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP40 | - | -25°C ~ 55°C |
|
K16-512SWITCH SELECT 3POS DPDT 3A 250V |
24 |
|
Datasheet |
K16 | Bulk | Active | Standard | DPDT | 3 | On-On | 3A (AC/DC) | 250 V | 110 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP40 | - | -25°C ~ 55°C |
|
|
K16-522SWITCH SELECT 3POS DPDT 3A 250V |
23 |
|
Datasheet |
K16 | Bulk | Active | Standard | DPDT | 3 | On-On | 3A (AC/DC) | 250 V | 110 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP40 | - | -25°C ~ 55°C |
|
K16-432SWITCH SELECT 2POS DPDT 3A 250V |
21 |
|
Datasheet |
K16 | Bulk | Active | Standard | DPDT | 2 | On-On | 3A (AC/DC) | 250 V | 110 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP40 | - | -25°C ~ 55°C |
|
|
K16-532SWITCH SELECT 3POS DPDT 3A 250V |
20 |
|
Datasheet |
K16 | Bulk | Active | Standard | DPDT | 3 | On-On | 3A (AC/DC) | 250 V | 110 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP40 | - | -25°C ~ 55°C |
|
A22NS-3RM-NBA-G101-NNSWITCH SELECT 3POS DPST 10A 120V |
8 |
|
Datasheet |
A22NS | Bulk | Obsolete | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC/DC) | 120 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -25°C ~ 70°C |
|
A22NS-3RB-NBA-G101-NNSWITCH SELECT 3POS DPST 10A 120V |
6 |
|
Datasheet |
A22NS | Bulk | Obsolete | Standard | DPST-NO | 3 | Mom-Off-Mom | 10A (AC/DC) | 120 V | 24 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Black Knob | -25°C ~ 70°C |
|
SSO2-SHWE-NOSWITCH SELECT 2POS SPST 10A 72V |
82 |
|
Datasheet |
- | Bag | Active | Standard | SPST-NO | 2 | Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|

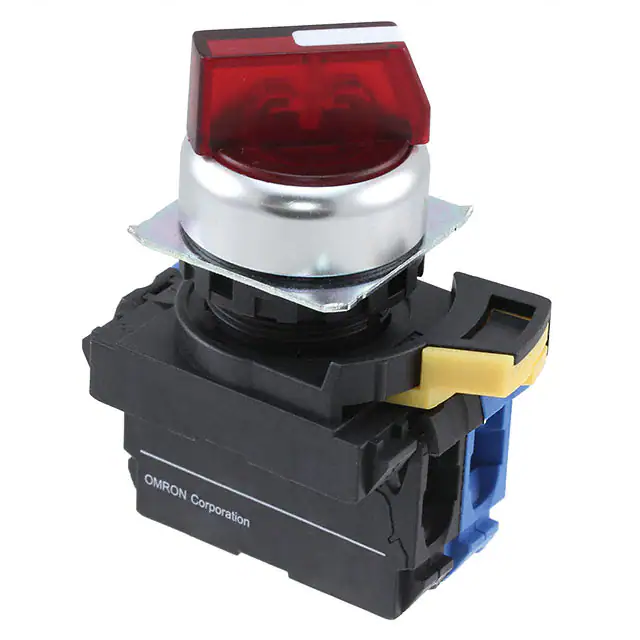

A22NW-2RL-TRA-G100-RDSWITCH SELECT 2POS SPST 10A 120V |
15 |
|
Datasheet |
A22NW | Bulk | Obsolete | Standard | SPST-NO | 2 | Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Illuminated | LED, Red | 100 ~ 120 VAC | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Red Knob | -25°C ~ 55°C |
|
|
SSO3-SHWE-NO/NOSWITCH SELECT 3POS DPST 10A 72V |
89 |
|
Datasheet |
- | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
SSO3-SLYW-NO/NOSWITCH SELECT 3POS DPST 10A 72V |
75 |
|
- |
- | Bag | Active | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
|
A22NW-3RM-TYA-G101-YCSWITCH SELECT 3POS DPST 10A 120V |
11 |
|
Datasheet |
A22NW | Bulk | Obsolete | Standard | DPST-NO | 3 | On-Off-Off, Off-Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Illuminated | LED, Yellow | 24 VAC/DC | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Yellow Knob | -25°C ~ 55°C |
|
A22NW-2RM-TAA-G102-ACSWITCH SELECT 2POS DPST 10A 120V |
0 |
|
Datasheet |
A22NW | Bulk | Obsolete | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Illuminated | LED, Blue | 24 VAC/DC | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 - Dust Tight, Water Resistant | Bezel - Round, Blue Knob | -25°C ~ 55°C |
|
500DL-300SWITCH SELECTOR 300A 48V |
14 |
|
Datasheet |
500 | Box | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 48 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 23.80mm Dia | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
503D-300SWITCH SELECTOR 300A 48V |
24 |
|
Datasheet |
503 | Box | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 48 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 20.62mm Dia | IP67 - Dust Tight, Waterproof | Key | -40°C ~ 85°C |
|
A165W-T2AR-24D-1SWITCH SELECT 2POS SPDT 5A 125V |
5 |
|
Datasheet |
A165W | Bulk | Obsolete | Standard | SPDT | 2 | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | LED, Red | 24 VDC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|

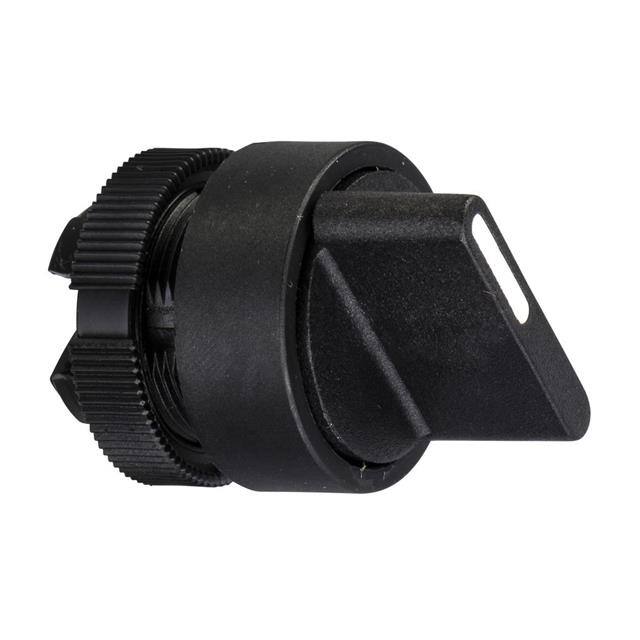

ZA2BD5SWITCH SELECTOR 3POS |
6 |
|
Datasheet |
Harmony XAC | Box | Active | Standard | - | 3 | - | - | - | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
XB6DD225BSWITCH SELECT 3POS DPST 3A 120V |
10 |
|
Datasheet |
Harmony XB6 | Box | Active | Standard | DPST-NO | 3 | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|

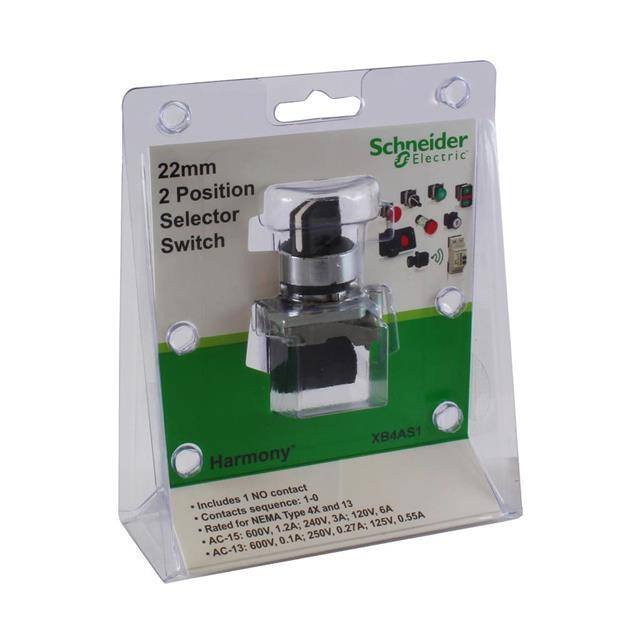

XB4AS1SWITCH SELECT 2POS SPST 6A 120V |
9 |
|
Datasheet |
Harmony XB4 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -25°C ~ 70°C |
|
XB4AS2SWITCH SELECT 2POS SPST 6A 120V |
3 |
|
Datasheet |
Harmony XB4 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -25°C ~ 70°C |
