Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT01-B120D-A104POT 100K OHM 1/20W CARBON LOG |
779 |
|
Datasheet |
PT01 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 285° | Carbon | PC Pins | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
PTV09A-4025F-A105POT 1M OHM 1/20W CARBON LOG |
777 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 1M | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-4225U-B103POT 10K OHM 1/20W CARBON LINEAR |
770 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PT01-D115D-B503POT 50K OHM 1/20W CARBON LINEAR |
763 |
|
Datasheet |
PT01 | Tray | Active | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 285° | Carbon | PC Pins | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
PTV09A-4020F-B502POT 5K OHM 1/20W CARBON LINEAR |
741 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-4015U-B102POT 1K OHM 1/20W CARBON LINEAR |
738 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 1k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4015U-B504POT 500K OHM 1/20W CARBON LINEAR |
731 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 500k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|

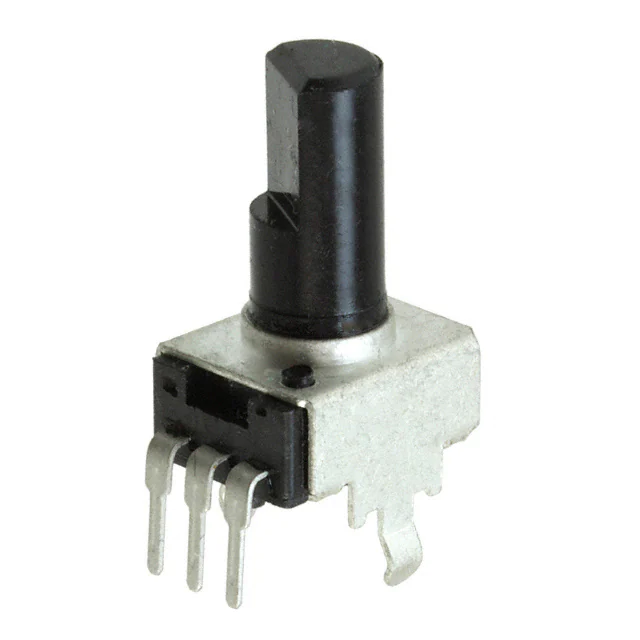

PTV09A-4020F-A203POT 20K OHM 1/20W CARBON LOG |
723 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PT01-B120D-B103POT 10K OHM 1/20W CARBON LINEAR |
704 |
|
Datasheet |
PT01 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 285° | Carbon | PC Pins | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|

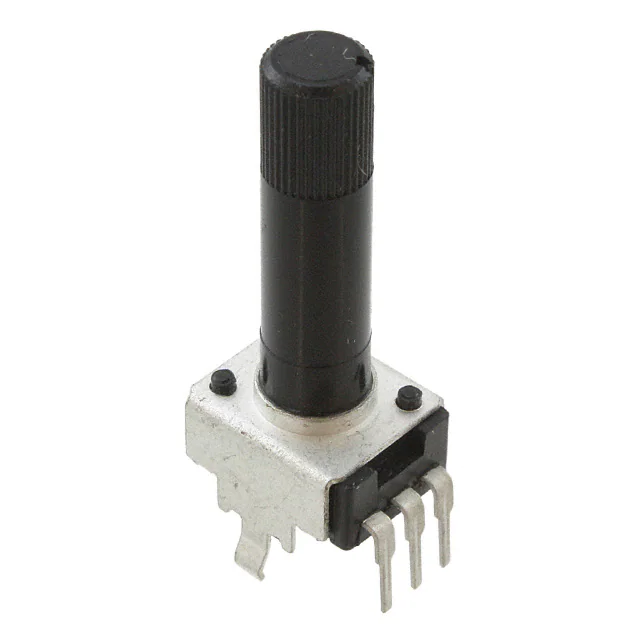

PTV09A-4030U-B204POT 200K OHM 1/20W CARBON LINEAR |
676 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 200k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 1.181" (30.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4030F-A104POT 100K OHM 1/20W CARBON LOG |
666 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 1.181" (30.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|

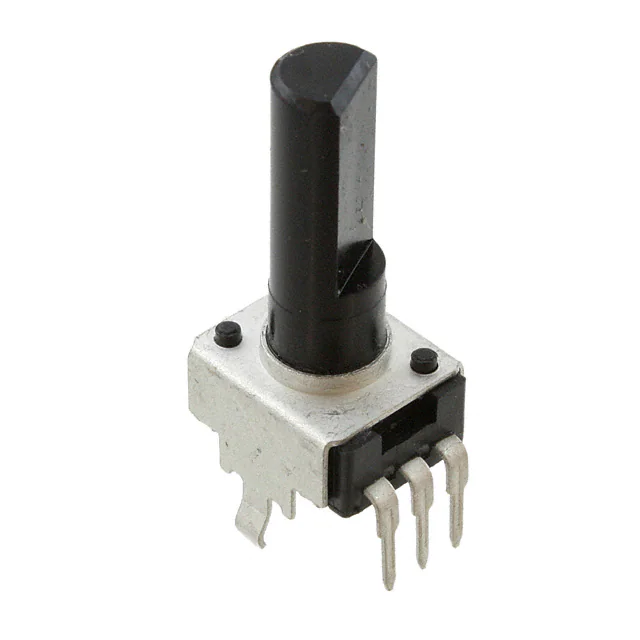

PTV09A-4225F-B102POT 1K OHM 1/20W CARBON LINEAR |
655 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 1k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-4015F-B503POT 50K OHM 1/20W CARBON LINEAR |
653 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PT01-D120D-B203POT 20K OHM 1/20W CARBON LINEAR |
624 |
|
Datasheet |
PT01 | Tray | Active | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 285° | Carbon | PC Pins | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PT01-D120K2-B103POT 10K OHM 1/20W CARBON LINEAR |
600 |
|
Datasheet |
PT01 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 285° | Carbon | PC Pins | Knurled | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PTV09A-4015F-B103POT 10K OHM 1/20W CARBON LINEAR |
594 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|

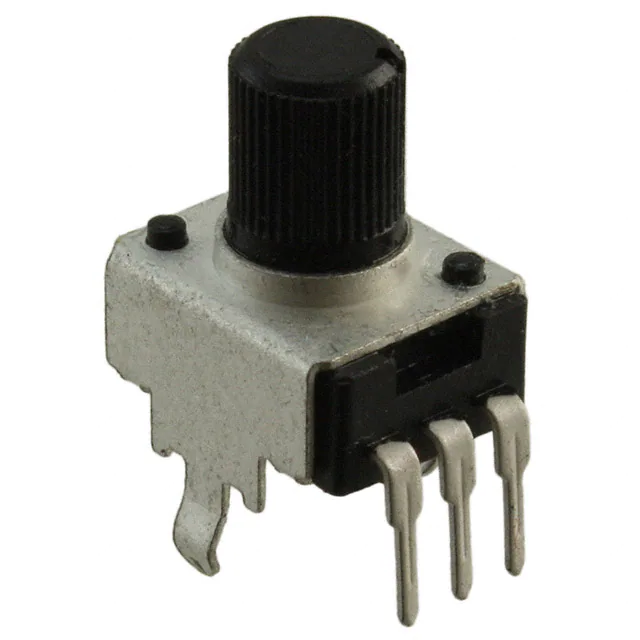

PTV09A-4015U-A204POT 200K OHM 1/20W CARBON LOG |
562 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 200k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4015F-B502POT 5K OHM 1/20W CARBON LINEAR |
528 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|

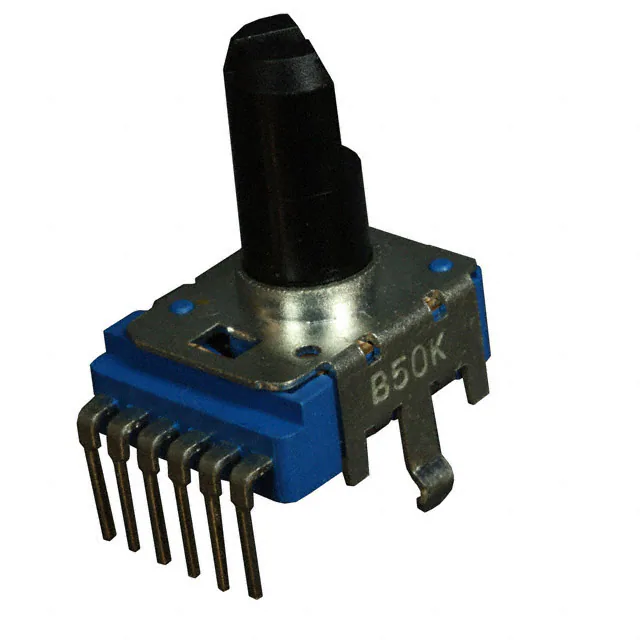

PTV112-4420A-B503POT 50K OHM 1/20W CARBON LINEAR |
523 |
|
Datasheet |
PTV | Bulk | Active | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Top Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-4015U-A104POT 100K OHM 1/20W CARBON LOG |
510 |
|
Datasheet |
Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
