Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7286R20KL.25POT 20K OHM 2W WIREWOUND LINEAR |
17 |
|
Datasheet |
7280 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
7286R100KL.25POT 100K OHM 2W WIREWOUND LINEAR |
91 |
|
Datasheet |
7280 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P13LFL472MAB10POT 4.7K OHM 1.5W CERMET LINEAR |
18 |
|
Datasheet |
P13 | Box | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3547H-1AA-502APOT 5K OHM 1W HYBRITRON LINEAR |
28 |
|
Datasheet |
Hybritron® 3547 | Tray | Active | 5k | ±10% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 1080° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
533B1103JLPOT 10K OHM 1W WIREWOUND LINEAR |
38 |
|
Datasheet |
533 | Box | Active | 10k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

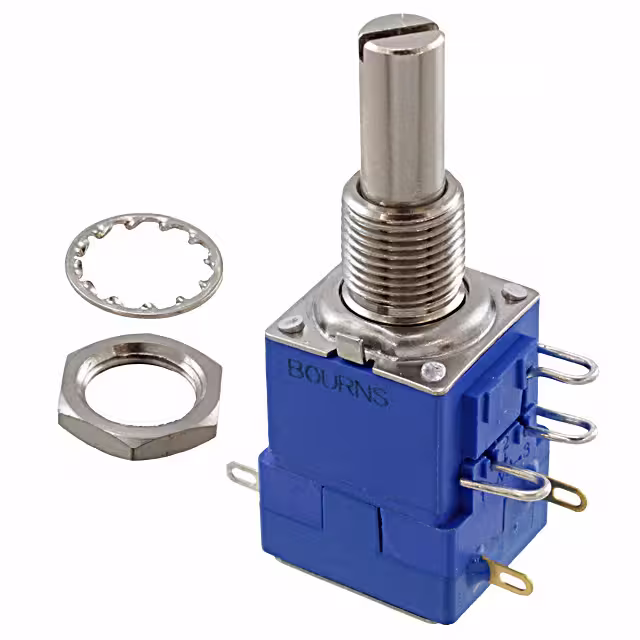

86A2A-B28-A15/R51LPOT 10K OHM 2W CERMET LINEAR |
48 |
|
Datasheet |
86 | Tray | Active | 10k | ±10% | 2W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Hook | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
249FGJS0XB25501KAPOT 500 OHM 1W CERMET LINEAR |
90 |
|
Datasheet |
249 | Box | Active | 500 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
249FGJS0XB25103KAPOT 10K OHM 1W CERMET LINEAR |
55 |
|
Datasheet |
249 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3549H-1AE-102BPOT 1K OHM 2W HYBRITRON LINEAR |
43 |
|
Datasheet |
Hybritron® 3549 | Tray | Active | 1k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Round | 0.375" (9.53mm) | 0.125" (3.18mm) | - | Servo Mount |
|
3548H-1AA-103BPOT 10K OHM 1.5W HYBRITRON LIN |
32 |
|
Datasheet |
Hybritron® 3548 | Tray | Active | 10k | ±10% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 1800° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

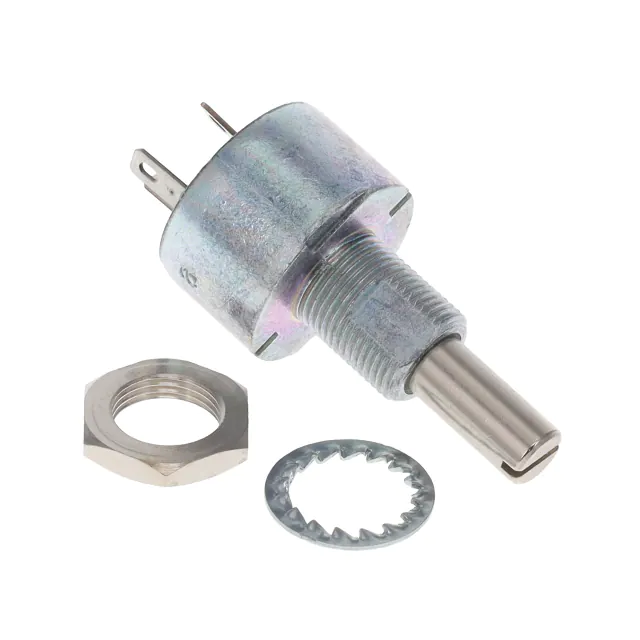

PE30L0FL502MABPOT 5K OHM 3W CERMET LINEAR |
16 |
|
Datasheet |
PE30 | Box | Active | 5k | ±20% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FR472MABPOT 4.7K OHM 3W CERMET LINEAR |
8 |
|
Datasheet |
PE30 | Box | Active | 4.7k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
6637S-1-103POT 10K OHM 1W PLASTIC LINEAR |
77 |
|
Datasheet |
6637 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.1248" (3.17mm) | 3/8-32 | Panel Mount |
|
6539S-1-103POT 10K OHM 1W PLASTIC LINEAR |
72 |
|
Datasheet |
6539 | Bulk | Active | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
535B1503JCPOT 50K OHM 1.5W WIREWOUND LIN |
50 |
|
Datasheet |
535 | Bulk | Active | 50k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
M22L10-000-502POT 5K OHM 2W WIREWOUND LINEAR |
13 |
|
Datasheet |
M22L10 | Tray | Active | 5k | ±5% | 2W | None | 10.0 | Long Life | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
3549S-1AG-103APOT 10K OHM 2W WIREWOUND LINEAR |
57 |
|
Datasheet |
3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
M-22E10-050 5KPOT 5K OHM 2W WIREWOUND LINEAR |
19 |
|
Datasheet |
M-22 | Bulk | Active | 5k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
PE30L0FL103MABPOT 10K OHM 3W CERMET LINEAR |
18 |
|
Datasheet |
PE30 | Bulk | Active | 10k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
M22L10-000-102POT 1K OHM 2W WIREWOUND LINEAR |
30 |
|
Datasheet |
M22L10 | Tray | Active | 1k | ±5% | 2W | None | 10.0 | Long Life | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
Rotary Potentiometers, Rheostats Electronic Components
Explore Rotary Potentiometers, Rheostats electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
