Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HR11D1A61BR1-11-TL001SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Seat Heater | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
VMD2GCCC-AACRZ-100SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | Master Light - High Beam, Vertical | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
B323J37ZQ22MSWITCH ROCKER 3PDT 6A 125V |
0 |
|
Datasheet |
B | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | CSA, UL |
|
|
VG12S00C-GZC00-000SWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-Off | 0.4VA (DC) | - | 28 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
KR49CAXEEGROCKER SWITCH KG PROTECTED |
0 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
VLD2YTTB-PZCUV-1NYSWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | High Beam - Low Beam, Vertical | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VLD2YTTB-PZCY8-1Z1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | High Beam - Low Beam, Vertical | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
W26B2Z881A1100000SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W25B2Z881A1100000SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W25B2W881-00000-000SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | No Marking | LED, White/White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W24D2W661-A7700-000SWITCH ROCKER DPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, White/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W25B2W881-A1100-000SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 10A (DC) | - | 24 V | Concave (Curved) - Illuminated | Black | No Marking | LED, White/White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|

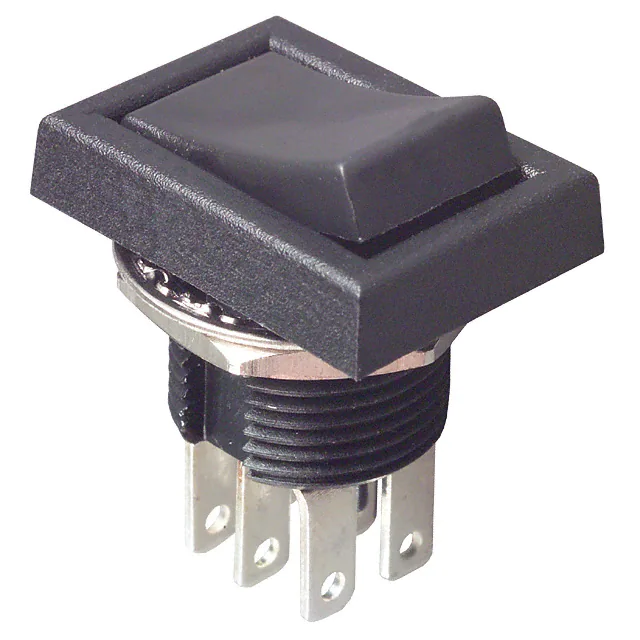

TRD23N10QCSWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
W22D2HWCJ-PPD00-0SWITCH ROCKER DPST-NC 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPST-NC | Off-Mom | 10A (DC) | - | 12 V | Locking - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
V4M4S00C-FAZCRB-1RCSWITCH ROCKER SPDT 0.4VA 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (DC), 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Interior Light, Vertical | - | - | Solder Lug | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
W24G2DMM1-A77RB-1RCSWITCH ROCKER DPDT 10A 6V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 6 V | Concave (Curved) - Illuminated | Black | Parking Brake, Vertical | LED, Amber/Amber | 6 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W26D2NHH1-A77Y9-1Z2SWITCH ROCKER DPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | Parking Brake, Vertical | LED, Green/Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
L61B1AJ01-3AZAH-300SWITCH ROCKER DP3T 15A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DP3T | On-On-On | 15A (DC) | - | 24 V | Concave (Curved) - Illuminated | - | Low Beam, Vertical | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
VM1JAC0C-00000-000SWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Off | 0.4VA (DC) | - | 28 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
B323J2CQ2SWITCH ROCKER 3PDT 6A 125V |
0 |
|
Datasheet |
B | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | CSA, UL |
