Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W11D2BC03-C7ZMB-100SWITCH ROCKER SPST 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | - | Parking Brake, Vertical | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
J3A2UT01-1SZ70-300SWITCH ROCKER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VGB2UJPB-G9CMC-300SWITCH ROCKER DPDT 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | Low Beam - High Beam, Vertical | LED, Amber/Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VRD2AH0B-G8C00-000SWITCH ROCKER DP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DP3T | Mom-On-On | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VLD2UCHB-G7S00-100SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Red | High Beam - Low Beam, Vertical | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VRD2AH0B-GGC00-000SWITCH ROCKER DP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DP3T | Mom-On-On | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VRD1AH0B-GGC00-000SWITCH ROCKER DP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DP3T | Mom-On-On | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VLD2UHCB-GAC00-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
L28A1AD01-AMZY9-1Z1SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Concave (Curved) - Illuminated | Black | Low Beam, Vertical | LED, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L28A1AJ02-BGZY9-1Z1SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Concave (Curved) - Illuminated | White | Low Beam, Vertical | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
VMD1AT0B-FA8C00-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
W17D2BC03-C7ZMJ-100SWITCH ROCKER SPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | - | Parking Brake, Vertical | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
L1811S001-AZZ00-000SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (DC) | - | 28 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L1813S001-AZZ00-000SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (DC) | - | 28 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
VA12UNNB-00000-000SWITCH ROCKER DPST 0.4VA 28V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 0.4VA (DC) | - | 28 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber/Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
W16D2AC01-AMZRA-100SWITCH ROCKER SPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | Parking Brake, Vertical | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W14D2AH01-A7ZUU-100SWITCH ROCKER SPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | Parking Brake, Vertical | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
L1713S001-DZZ00-000SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 0.4VA (DC) | - | 28 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
KG490A2XXA51XXCAHROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

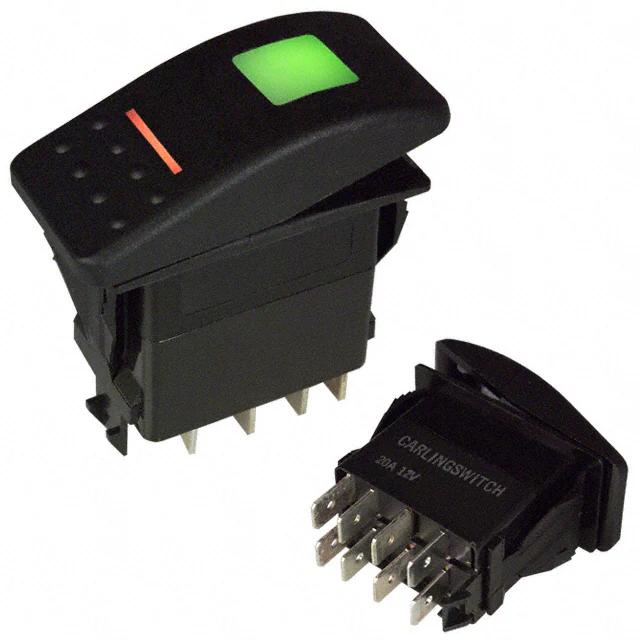

VED2GHNB-AAC00-000SWITCH ROCKER SP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Jumper needed to achieve triple throw | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
