Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L28D1S002-BZZRB-1RCSWITCH ROCKER DPDT 20A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Concave (Curved) | White | Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L28B1S001-AZZY8-1Z1SWITCH ROCKER DPDT 15A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Concave (Curved) | Black | Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L28E3S001-AZZRB-1RCSWITCH ROCKER DPDT 15A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (DC) | - | 12 V | Concave (Curved) | Black | Low Beam, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L28A1S001-AZZY8-1Z1SWITCH ROCKER DPDT 10A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Concave (Curved) | Black | Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
V2DAFHTC-00000-000SWITCH ROCKER SPST-NO 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIGL54-7S-RD-FWSWITCH ROCKER DPDT 15A 125V |
0 |
|
- |
TIG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 15A (AC/DC) | 125 V | 28 V | Paddle | Red | No Marking | - | - | Screw Terminal | - | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
L28D1S001-AZZY8-1Z1SWITCH ROCKER DPDT 20A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Concave (Curved) | Black | Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
L28E1S001-AZZA7-13GSWITCH ROCKER DPDT 15A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (DC) | - | 12 V | Concave (Curved) | Black | Low Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
V2D1FHHC-00000-000SWITCH ROCKER SPST-NO 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V2BAFJVC-00000-000SWITCH ROCKER SPST-NO 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

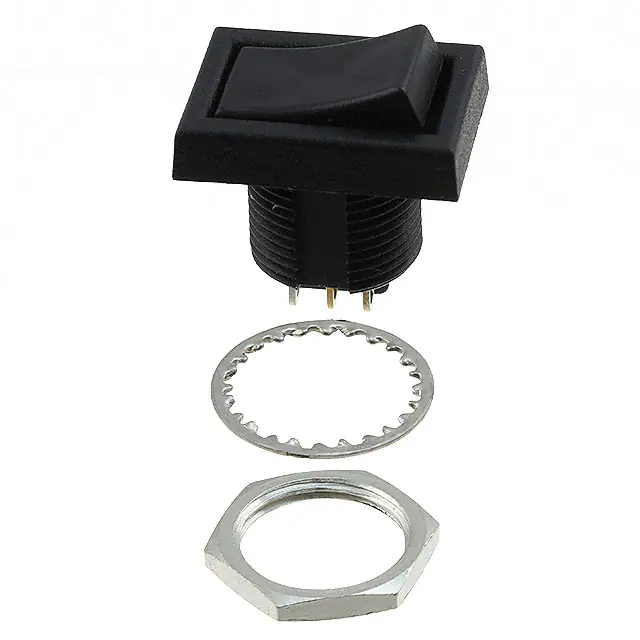

TRD23P10WLSWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | DPDT | On-Off-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
7303J3ZGE2SWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
VBD2AH0B-GJC00-000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIGG5M-6S-BL-WBL/ON-OFFSWITCH ROCKER DPDT 15A 125V |
0 |
|
- |
TIG | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 15A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
VBD2AT0B-GMC00-000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
LTIGK54-1L-BL-GN-FN/12VSWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
LTIG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Concave (Standard V) - Illuminated | Black | No Marking | Incandescent, Green | 12 VAC/DC | Screw Terminal | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
L11B1B0JH-DZ700-1D9SWITCH ROCKER SPST 15A 24V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Concave (Curved) - Illuminated | Red | Low Beam, Vertical | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
MN23TJW01-FA-3A-CFSWITCH ROCKER MINIATURE SNAP |
0 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 2.1, 2.2 VDC | Solder Lug | - | - | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | UL |
|
|
MN23TJW01-FA-3A-CCSWITCH ROCKER MINIATURE SNAP |
0 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red/Red | 2.1 VDC | Solder Lug | - | - | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | UL |
|
|
MN23TJW01-GC-3A-FFSWITCH ROCKER MINI PC MOUNT |
0 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Red | No Marking | LED, Green/Green | 2.2 VDC | Solder Lug | - | - | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | UL |
