Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W28D20002-BZZRB-1RCSWITCH ROCKER DPDT 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 12 V | Concave (Curved) | - | Parking Brake, Vertical | - | - | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W49B20001-AZZ00-000SWITCH ROCKER DP3T 10A 24V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DP3T | On-On-On | 10A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
W49D20001-AZZ00-000SWITCH ROCKER DP3T 10A 12V |
0 |
|
- |
W | Bulk | Active | Panel Mount, Snap-In | DP3T | On-On-On | 10A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
LTGQC501-TB-B-R/12VSWITCH ROCKER DPDT 15A 125V |
0 |
|
- |
LTG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Black | No Marking | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | 0°C ~ 85°C | CSA, UL |
|

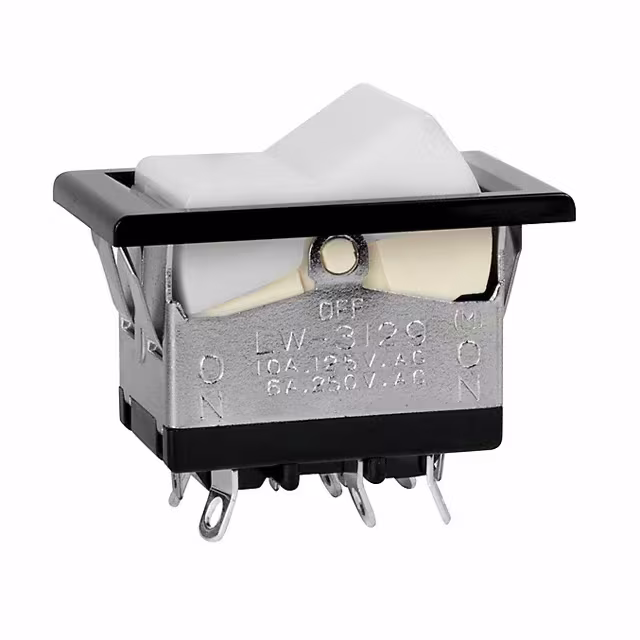

LW3129-0100-ASWITCH ROCKER DPDT 10A 125V |
1 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
VED1S001-MZZ00-000SWITCH ROCKER SP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 20A (DC) | - | 12 V | Paddle | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Jumper needed to achieve triple throw | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VED2S001-JZZ00-000SWITCH ROCKER SP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 20A (DC) | - | 12 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Jumper needed to achieve triple throw | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJD2H0CC-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V6D1DCCC-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V5D1KCCB-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VEB2S001-1ZZAH-100SWITCH ROCKER SP3T 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 15A (DC) | - | 24 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Jumper needed to achieve triple throw | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VA5AAJ01-4KZ13-000SWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Red | O - | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V4B2UDD1-00000-000SWITCH ROCKER SPDT 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red/Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VAB2AP0B-G8C3F-100SWITCH ROCKER DPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | High Beam - Low Beam, Vertical | LED, Amber | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDD1AH0C-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VAB2AP0B-GDCVU-100SWITCH ROCKER DPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | High Beam - Low Beam, Vertical | LED, Amber | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDDBAT0C-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDDAAT0C-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDD1A60C-6KZ00-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDD2AH0C-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
