Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGD1S00C-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B3BD0C-AMC00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 24 VDC | Solder Lug | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

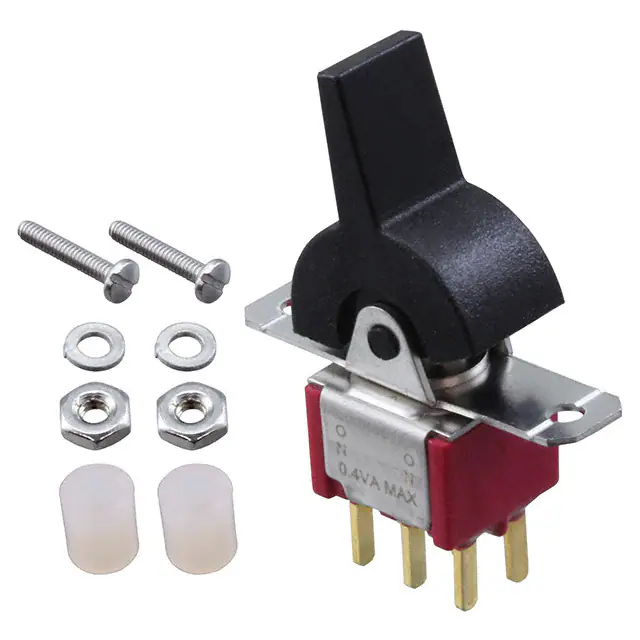

7201J2Z3BE2SWITCH ROCKER DPDT 0.4VA 20V |
4 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Flange | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
VA5AS004-2ZZ13-000SWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Gray | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJD2S00B-AZCAH-100SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJDAS00B-AZC5H-100SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VDD12C0B-00000-000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VAB1S004-6ZZ13-000SWITCH ROCKER DPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V4DAAN0C-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJD1S00B-AZCAC-100SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D2BT01-6RZ00-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1AH0B-AKC11-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | ON OFF, Vertical | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V4D1AC0C-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V6D1AC0C-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1BAAJ0B-C1C13-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | O - | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1BH01-1KZ00-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1BH01-6KZ00-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VA5AS004-6ZZ17-000SWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Convex (Reverse V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V4D1AN0C-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VAD1S004-4ZZ11-000SWITCH ROCKER DPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (DC) | - | 12 V | Concave (Standard V) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Rocker Switches?
This category includes related Rocker Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Rocker Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Rocker Switches and other electronic components.
