Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN18TXW13-DBSWITCH ROCKER MINIATURE PC MNT |
0 |
|
- |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN18TXW13-DCSWITCH ROCKER MINIATURE PC MNT |
0 |
|
- |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN12TYG01-HHSWITCH ROCKER MINI FLAT FRAME |
0 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | UL |
|
|
MN18TXW13-DASWITCH ROCKER MINIATURE PC MNT |
0 |
|
- |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
A25KB-CASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A24K1WSWITCH ROCKER SP3T 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
V1D12N0B-00000-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D12C0B-00000-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
L18D1S001-00000-000SWITCH ROCKER SPDT 20A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
2641LH/2A832021L0SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|
7103J21ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|

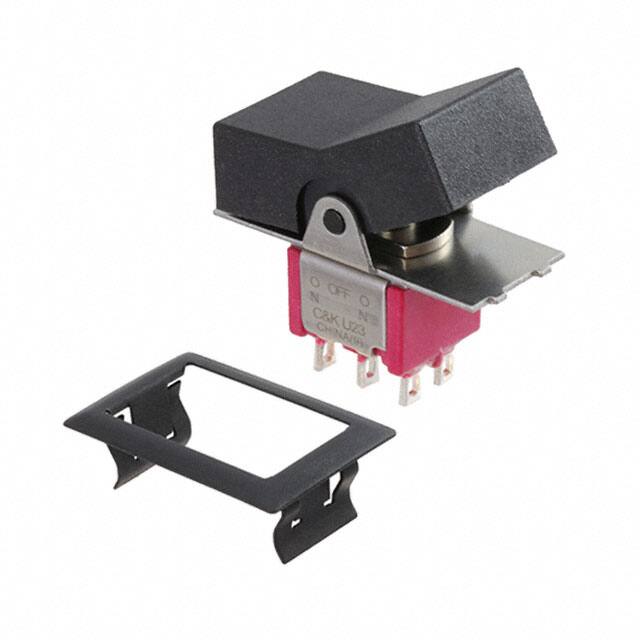

U23J37ZQE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | cULus |
|
|
2639LH/2A212000L0ROCKER SWITCH 2600 HIGH POWER |
0 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC), 8A (DC) | 125 V | 24 V | Flat | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UR, VDE |
|
|
U23J2AQE2SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
V1D2S00B-GZC17-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-GZC13-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIGC51-6S-BL-NBLSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
TIG | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
CRTL111A125V4MTSWITCH ROCKER DPST 20A 250VAC |
0 |
|
Datasheet |
CRT | Bulk | Active | Panel Mount, Snap-In | DPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Green | O - | Neon, Clear | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
E101J2V3QE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

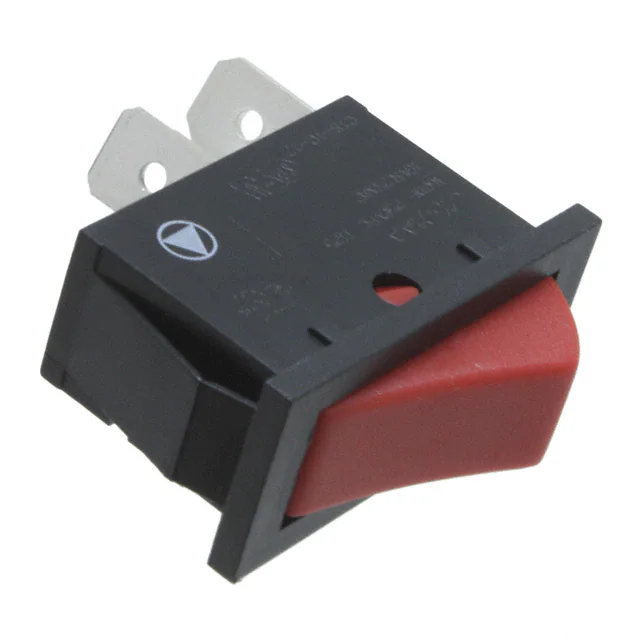

C1501AABR-BSWITCH ROCKER SPST-NO 16A 250V |
5 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
Rocker Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Rocker Switches?
This category includes related Rocker Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Rocker Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Rocker Switches and other electronic components.
