Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A29K1WSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
E201J1AQE2SWITCH ROCKER DPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7205J1AQE2SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

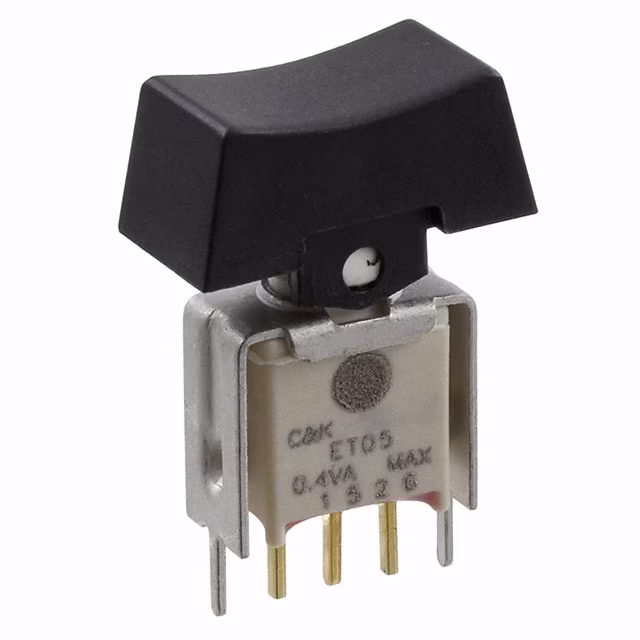

ET05J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
ET | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
7105J11ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
WRTP44A12M9SWITCH ROCKER DPST-NO 20A 125V |
0 |
|
Datasheet |
WRTP | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - | CSA, UL, VDE |
|
|
U11J21ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
V1D1S00B-CZCDD-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2S00B-BZCW9-300SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | High Beam - Master Light , Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-AZCWJ-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-AZC3L-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-AZHRW-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Gray | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-CZCBK-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-CZC50-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-AZCMT-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-AZCRW-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00B-CZC43-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2S00B-AZC5B-100SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2S00B-AZC50-100SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1S00B-BZS68-100SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Red | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Rocker Switches?
This category includes related Rocker Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Rocker Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Rocker Switches and other electronic components.
