Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E105J1ZQE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
C1560ABBBSWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
MLW3019/USWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
E101J3AV2BE2SWITCH ROCKER SPDT 20V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | cULus |
|
|
RTL1A125V1M9SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
CRTL | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Flat - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
|
DF62J12S2ADQASWITCH ROCKER DPST 125V |
0 |
|
Datasheet |
DF | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | Off-On | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | OFF ON, Vertical | - | - | PC Pin | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
|

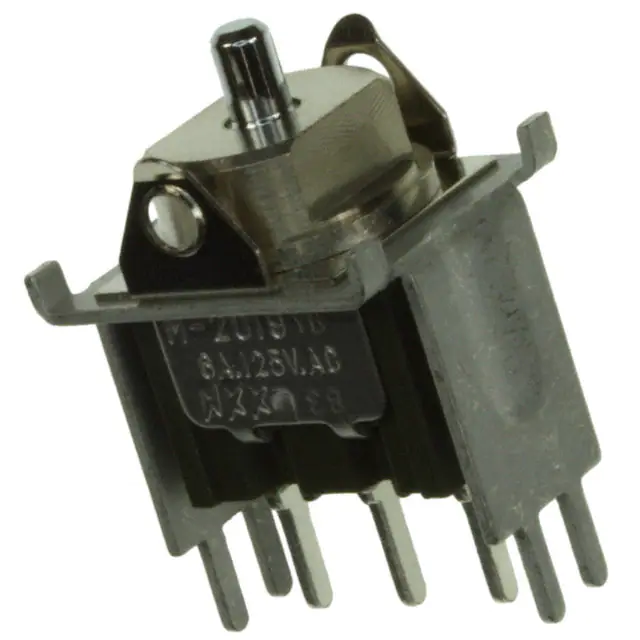

M2019TZW13SWITCH ROCKER SPDT 6A 125V |
8 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2T18TXG30-DBSWITCH ROCKER SPDT 0.4VA 28V |
4 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
58312-B1SWITCH ROCKER |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7105J62CQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle - Illuminated | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
A105J51ZQ0004SWITCH ROCKER SPDT |
12 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A18K1PSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18K1WSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
C1353AGBR8-602ABSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Red | O - | Incandescent, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
|
1MS-SP3-R3-U4GESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
7101J60ZQE2SWITCH ROCKER SPDT 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
MLW3012-00-LC-1ASWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
A25K1H-EASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
1MS-SP1-R3-U4GESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
RTP2A9M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRTP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC), 14A (DC) | 125 V | 14 V | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
