Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SS-WMSP3-R1/2-M6GESWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
1S | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
1SM-WMSP1-R2-S7GESWITCH ROCKER SPDT 3A 125V |
0 |
|
- |
1S | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
E108J1A3BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
M2022TXG15/108SWITCH ROCKER DPDT 0.4VA 28V |
10 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
7101J3ZBE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
7101J50V6BE1SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
RK8002SWITCH ROCKER DPDT 500MA 125V |
0 |
|
Datasheet |
RK8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 500mA (AC/DC) | 125 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | - | - | -20°C ~ 70°C | - |
|
|
RK8004SWITCH ROCKER DPDT 500MA 125V |
0 |
|
Datasheet |
RK8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 500mA (AC/DC) | 125 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | - | - | -20°C ~ 70°C | - |
|
|
1MS-SP3-R2-VS2KESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
FRN91-26BBSWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
FRN | Bulk | Obsolete | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Sealed | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
C1553PBBG3-M441SWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
3004P1R3BLKM1RESWITCH ROCKER 4PDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
|
|
652682-WB-HBSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
652 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black, White | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651681-RB-0NSWITCH ROCKER SPDT 8A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
CRSP6H9M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
C1560WABBSWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
A23K1B-DASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

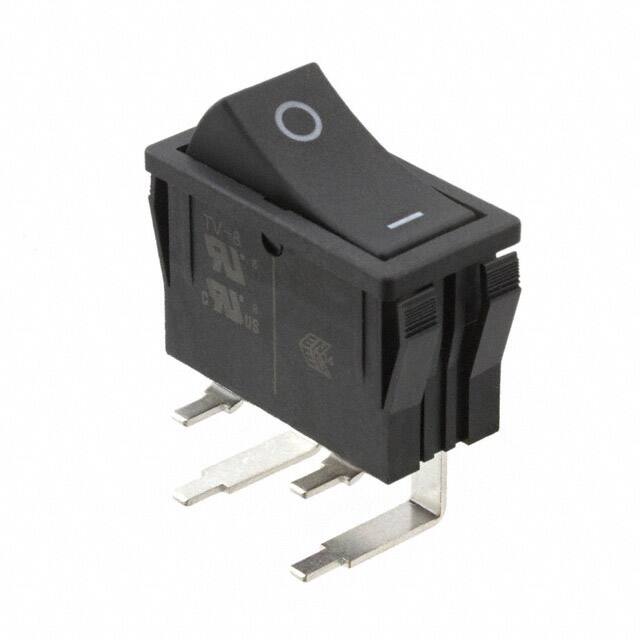

CF-LA-2KC5-3CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
651883-RB-0NSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651683-RB-0NSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
