Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGSCC205-R-B-B-0SWITCH ROCKER DPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
47ADP1R3M1QTSWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
A28K1BSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A23KP-CCSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
SRN91-26BBSWITCH ROCKER DPST-NO 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|

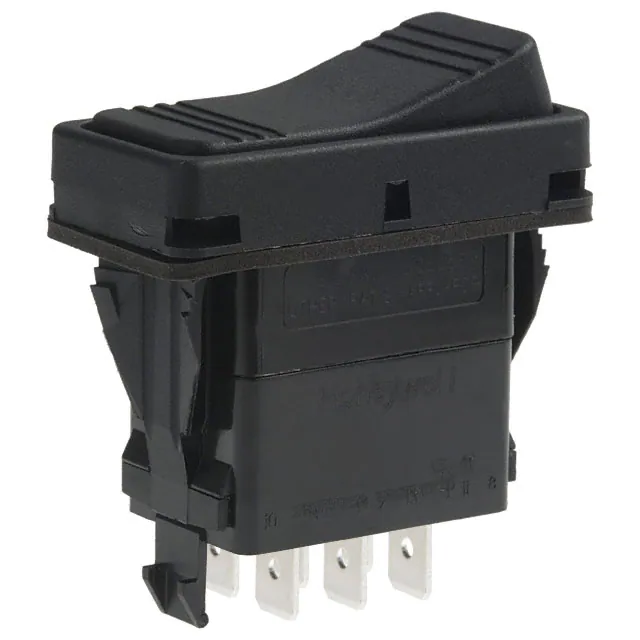

SRN91-23BBSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
SRN91-28BBSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
SRN91-21BBSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
SRN91-25BBSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
SRN91-27BBSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
V1D1000B-00000-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TA115-TB-B/ON-OFFSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Wire Leads | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
1MS-SP2-R3/2-VS2GESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
RK8006SWITCH ROCKER DPDT 500MA 125V |
0 |
|
Datasheet |
RK8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 500mA (AC/DC) | 125 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | - | - | -20°C ~ 70°C | - |
|
D601J11S205QASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
7101J50ZQE1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7101J2ZQE1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
632551-4B-1NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat | Green | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
R711FE1-SXXX3BDGNWSWITCH ROCKER SPST 16A 30V |
0 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
CRTP1A7M9-BSWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
CRTP | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
