Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D508J12S105QASWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
C1353ARBG21091WSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O I | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|
|
47ASP3R5M1QTSWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
A15K1H-DBSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

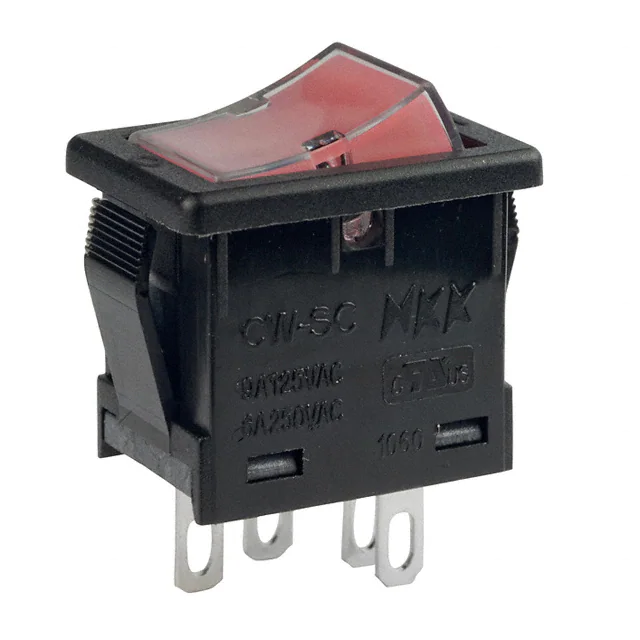

CWSC11JCACSSWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Red Filter/Diffuser) | No Marking | LED, Red | 1.95 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|
47DWMSP3R1M2RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
47D | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C1550AGBBSWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
|
47CMSP1R1V2RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
47C | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C1487BABBSWITCH ROCKER |
0 |
|
Datasheet |
1450 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
R711FC2-SXXX2BDGNWSWITCH ROCKER SPST 16A 30V |
0 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
G13KPSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
C1510WABB-G74SWITCH ROCKER SPDT 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | Protective Cover | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
|
A1RK1H-DBSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
3003P2J2BLKM2QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | 3PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3003P2R2BLKM2QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | 3PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
3003P3J1BLKM2QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3003P3R1BLKM1QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
3003P3R1REDM1QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
62112461-0-0-NSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
62115461-0-0-NSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
