Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR102J25S215QFSWITCH ROCKER SPST 16A 125V C&K |
3,996 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
D502J12S2AHQASWITCH ROCKER SPST 10A 125V C&K |
9,042 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
DF62J12S215PQASWITCH ROCKER DPST 16A 125V C&K |
1,992 |
|
Datasheet |
DF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|

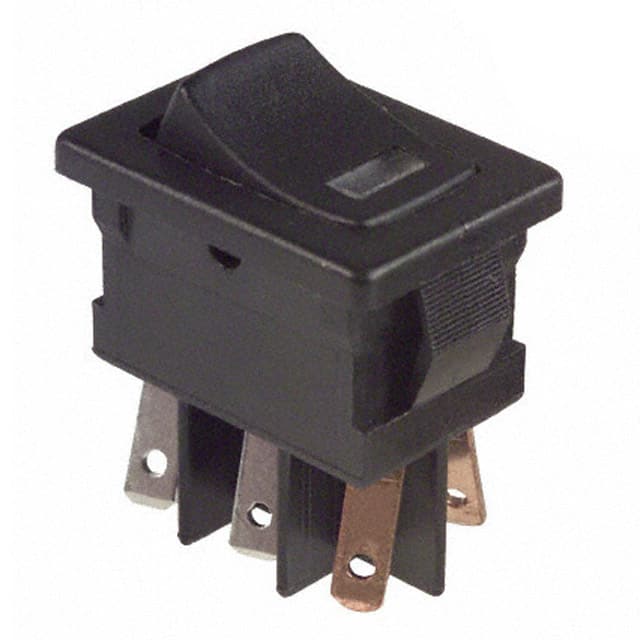

DM64J72S205Q3SWITCH ROCKER DPST 10A 125V C&K |
363 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

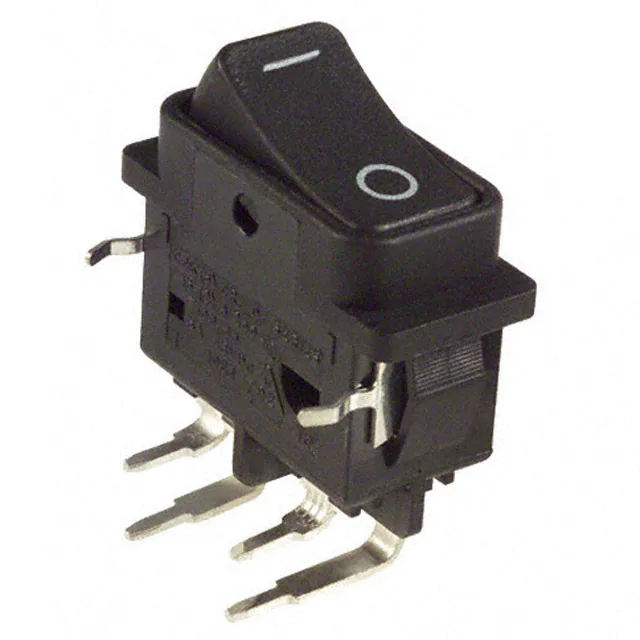

DF62J12S2AHQASWITCH ROCKER DPST 16A 125V C&K |
1,057 |
|
Datasheet |
DF | Tube | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
DM64J72S205Q6SWITCH ROCKER DPST 10A 125V C&K |
546 |
|
Datasheet |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

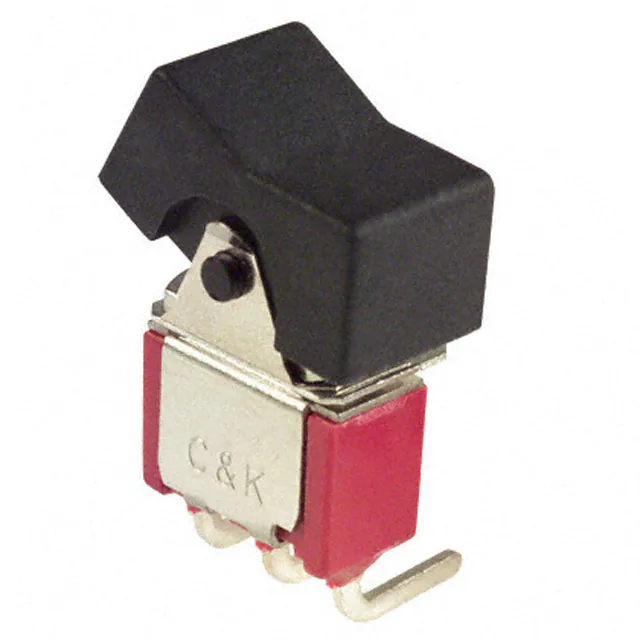

7101J1AQE2SWITCH ROCKER SPDT 5A 120V C&K |
389 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

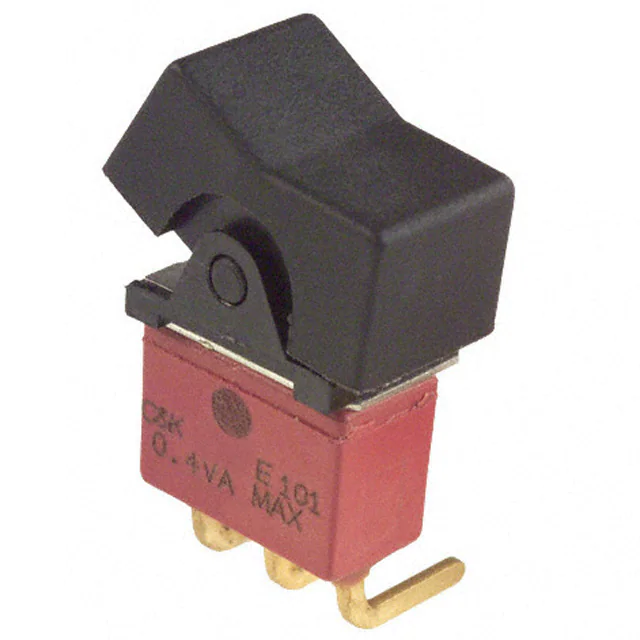

E101J1ABE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
200 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

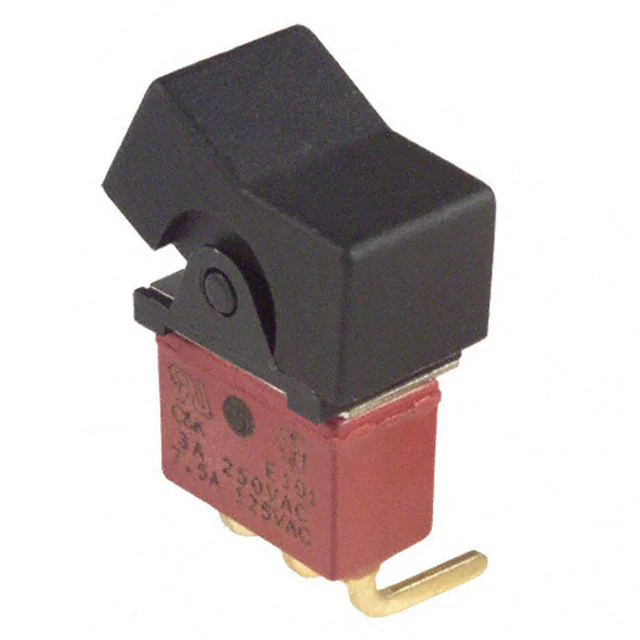

E101J1AQE2SWITCH ROCKER SPDT 7.5A 125V C&K |
874 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
ET01J6ABE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
612 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
