Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TB811-TB-BSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
TB200-TW-BSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
3003P1J1BLKVS5QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
LRA511-CR-B/024VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA511-CG-B/012VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA211-CR-1/125NSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA511-CA-B/012VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Amber | No Marking | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA511-CC-B/012VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA511-CR-B/018VSWITCH ROCKER SPST 10A 30V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 18 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA911-CB-B/012VSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | No Marking | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
LRA911-CR-1/250NSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
LRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
62115929-0-A-VSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
62135929-0-0-NSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | - | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
C1500AABB-BSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
C1500ARBB-BSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|

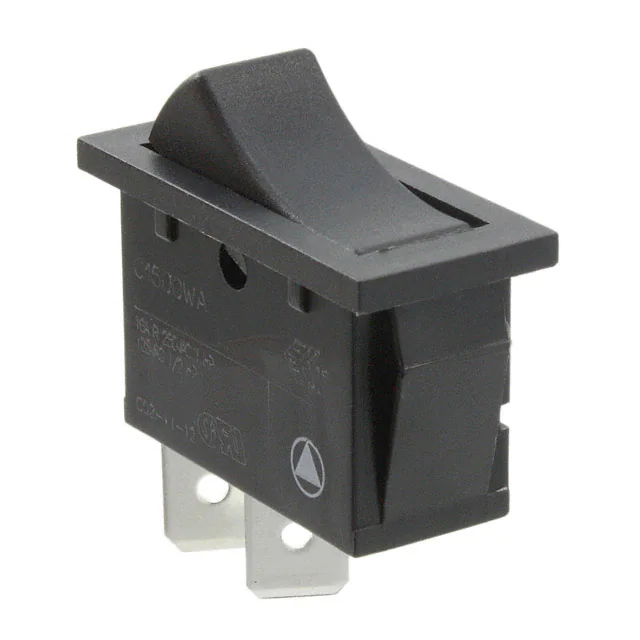

C1500WABB-BSWITCH ROCKER SPST 16A 250V |
0 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | Antimicrobial | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
GRB263D2BBGR2D1SWITCH ROCKER SPDT 21A 14V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 21A (DC) | - | 14 V | Oval - Illuminated | Black | No Marking | LED, Green/Red | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
A101J1AV2Q0SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
A | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RVW46D112SSWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RVW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
|
|
632322-2B-JNSWITCH ROCKER SPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
