Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
62151461-0-0-NSWITCH ROCKER SPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
61031231-E-0SWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
610 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC) | 125 V | - | Paddle | - | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.87mm x 13.08mm | 0°C ~ 85°C | CSA, UL |
|
|
61111414-0-0-NSWITCH ROCKER SPST 8A 125V |
0 |
|
- |
611 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 8A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|

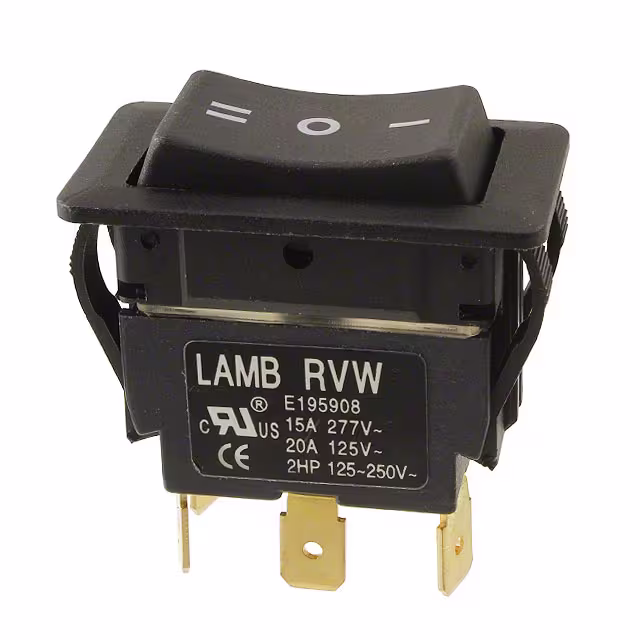

RVW4Z07D112SSWITCH ROCKER 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | - | - | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
AJ8241BFSWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
AJ8 | Bulk | Not For New Designs | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
|
651125-BB-ENSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
RD225-MB-B-0-NSWITCH ROCKER SPST-NO 12A 125V |
0 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Wire Leads | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
|
DF52J12S215QASWITCH ROCKER SPST 125V |
0 |
|
Datasheet |
DF | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
1-1437592-6SWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 5A (AC) | 125 V | - | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 85°C | - |
|
|
62135429-0-0-NSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | - | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
C1350ARAAGSWITCH ROCKER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSCB211-VB-B-0-GSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCB201-R-W-W-FSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | White | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA901-R-R-B-ESWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA201-R-R-B-ESWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RAH211-VB-B-1-VSWITCH ROCKER 16A 125V |
0 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | - | - | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
|
1S1-MSP1-R2/2-M6QESWITCH ROCKER SPDT 3A 125V |
0 |
|
- |
1S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP3J6BLKM7RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
FL1D-5M-ZSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
FL | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
|
300AWDP1J1VS3RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
