Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400AWMSP3R1M1QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

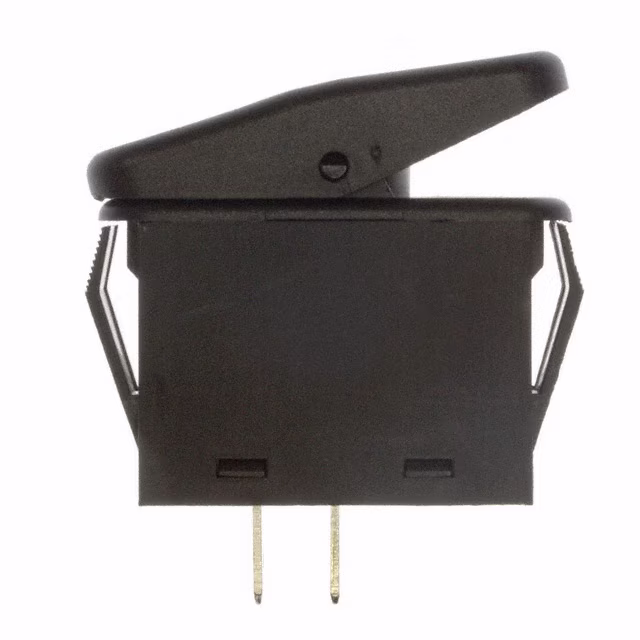

KTG2ANB1BBDNNNSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
KT | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.20mm | -20°C ~ 85°C | - |
|
|
300SP1J1GRYM7QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP1J5BLKM7QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP1R1BLKM7QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
RVW42D112RSwitches |
0 |
|
Datasheet |
RVW | Bulk | Active | Panel Mount, Snap-In | DPST | Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | cURus |
|
|
400AWMDP1R6M7RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
400A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
GR-2021-0013SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|
|
RVWG46D1100SWITCH ROCKER DPDT 20A 125V |
0 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
300SP1J3BLKM2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP1J1REDM2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RA901-RB-1-0-NSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
|
300SP2J1BLKM6QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300SP2J3BLKM6QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
VED1SW0B-AZ500-0SWITCH ROCKER SP3T 20A 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 20A (DC) | - | 12 V | Locking | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Jumper needed to achieve triple throw | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
300SP4R6BLKM2QEBLKSWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300SP4J1BLKM6RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400AWMSP4R1BLKM6RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400A | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP2R2BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300A | Tray | Active | Panel Mount, Flange | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
651122-BB-BWSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Horizontal | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
