Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

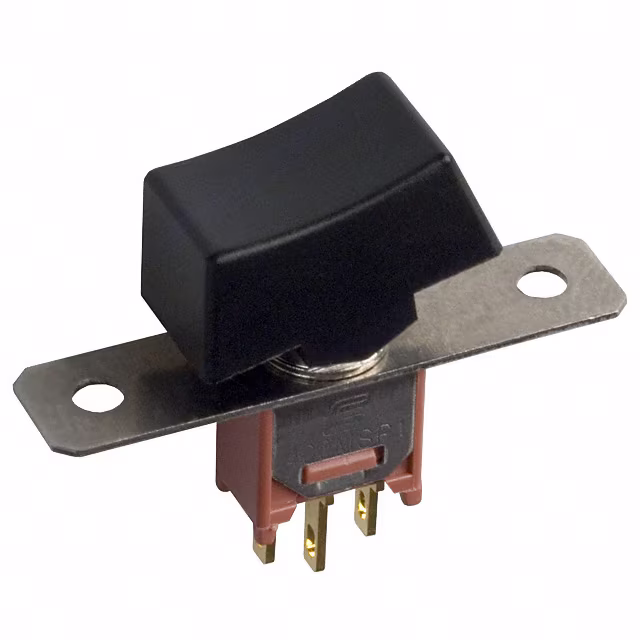

400MSP1R1BLKM1RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
400MSP1R1BLKM2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
400MSP1R1REDM1RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
300DP1J1BLKM7QE-IOSWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400AWMSP4R1BLKM1QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Tray | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400AWMSP4R1BLKM2QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400A | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
R2301C2NBBSWITCH ROCKER DPDT 20A 125V |
0 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|
|
400MSP4R6BLKM1QESWITCH ROCKER SPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 7.11mm | -30°C ~ 85°C | cULus |
|
|
C1300XRBBG-1091WSWITCH ROCKER SPST 20A 250V |
0 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
GRS-2013C-0000SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRS-2013C-0012SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
300DP1J1REDVS2QESwitches |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 24 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | - |
|
|
A8L-21-12N3SWITCH ROCKER |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
400AWMSP1R2M61RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
400A | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RA901-VB-B-8-VSWITCH ROCKER SPST 16A 125V |
0 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
|
V1B1B803-2RZ00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Concave (Standard V) - Illuminated | Gray | No Marking | Incandescent, Red | 24 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1B801-14Z00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Concave (Standard V) - Illuminated | Black | No Marking | Incandescent, Clear | 24 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2UJJC-BACMA-200SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | High Beam - Master Light , Horizontal | LED, Green/Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B1B801-6JZ00-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | Incandescent, Green | 24 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2UJJC-BACMF-100SWITCH ROCKER SPST 15A 24V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | Master Light - High Beam, Vertical | LED, Green/Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
