Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

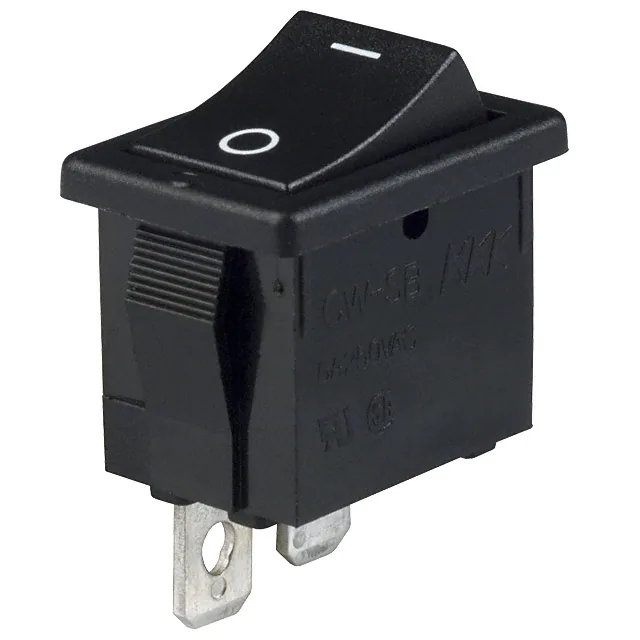

CWSB11AA1FSWITCH ROCKER SPST 6A 250V NKK Switches |
1,248 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

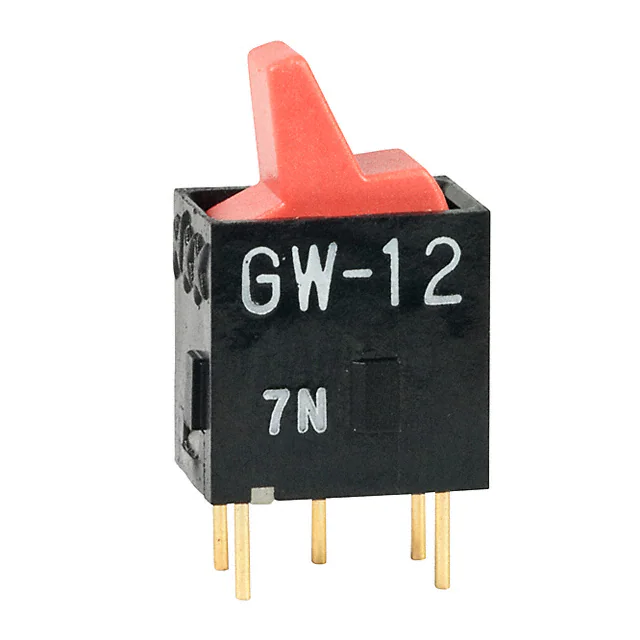

GW12LCPSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,089 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

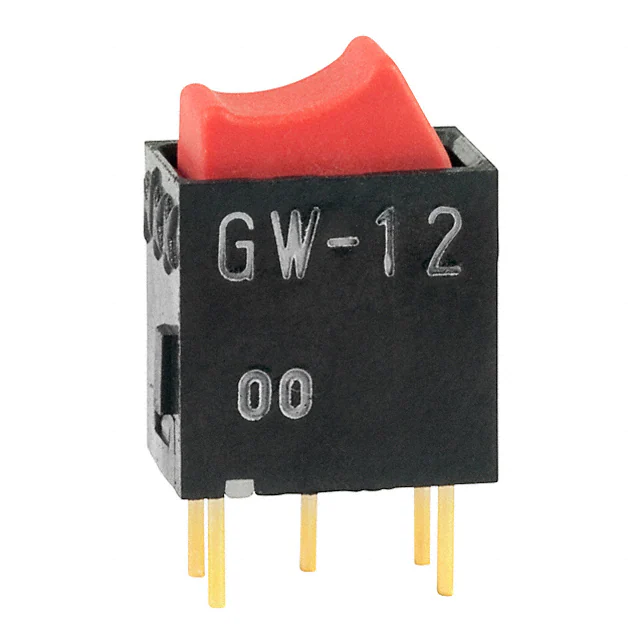

GW12RCPSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
0 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

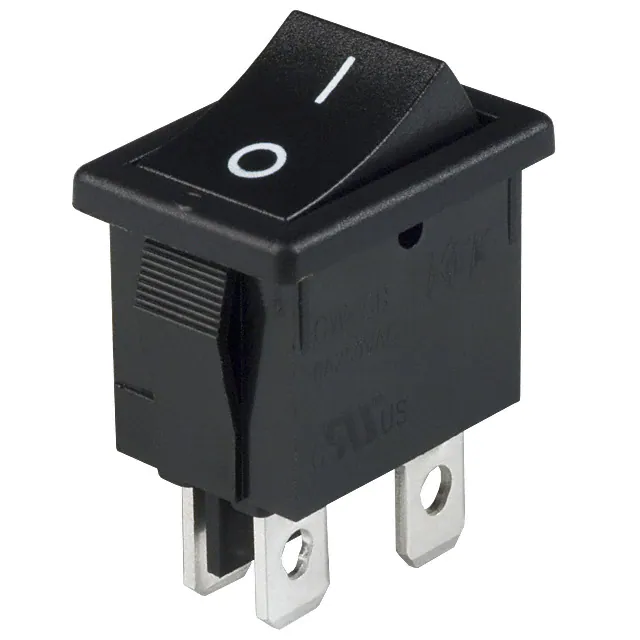

CWSB21AA2FSWITCH ROCKER DPST 6A 250V NKK Switches |
507 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

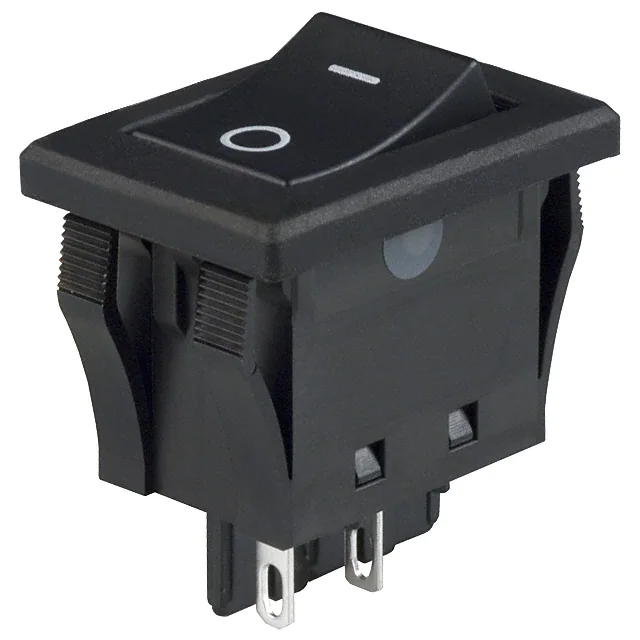

JWMW11RA1ASWITCH ROCKER SPST 10A 125V NKK Switches |
6,362 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

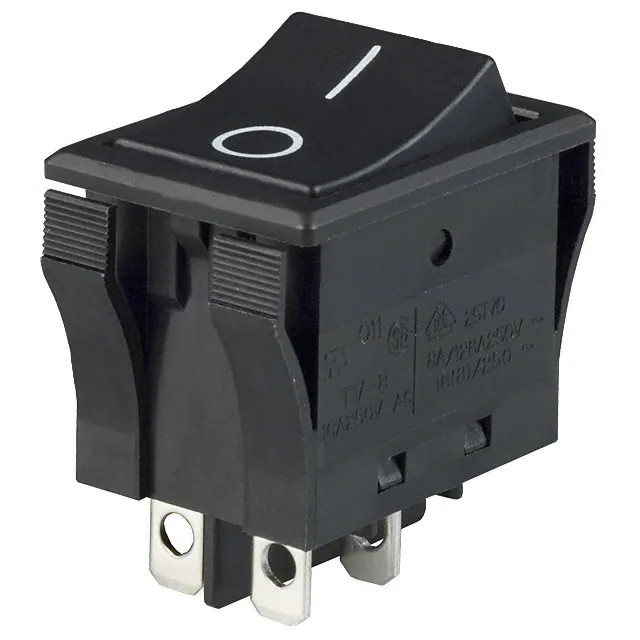

JWL21RA2ASWITCH ROCKER DPST 16A 125V NKK Switches |
1,973 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

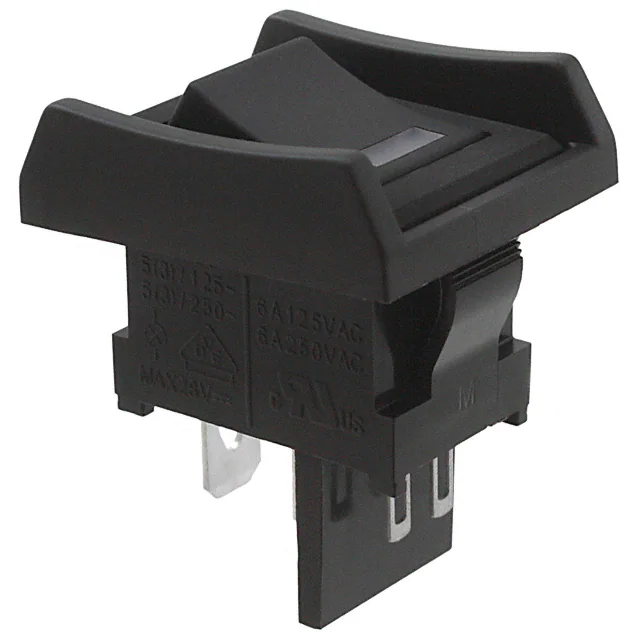

JWS11BAAF-ASWITCH ROCKER SPST 6A 125V NKK Switches |
1,392 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | With Barrier | Rectangular - 19.20mm x 12.90mm | -25°C ~ 50°C | CSA, UL, VDE |
|

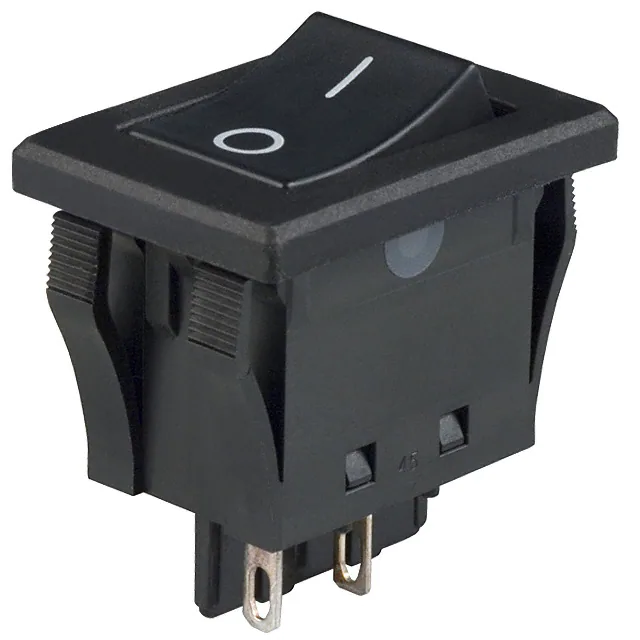

JWMW11RA2ASWITCH ROCKER SPST 10A 125V NKK Switches |
4,536 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

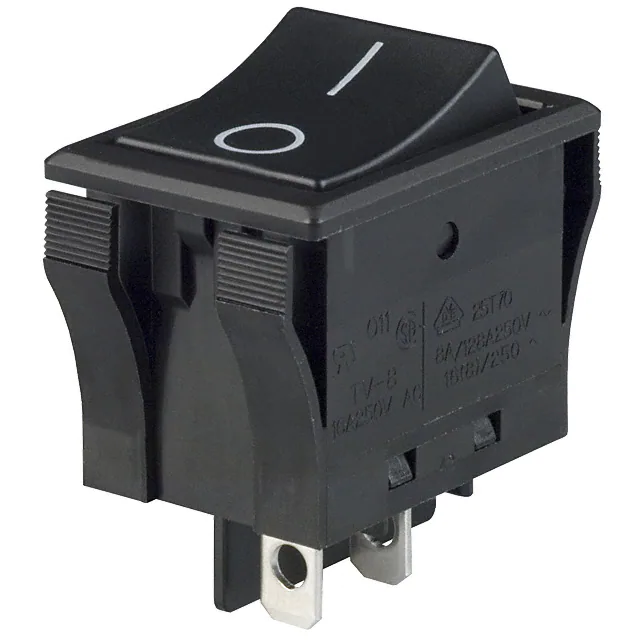

JWL11RA2ASWITCH ROCKER SPST 16A 125V NKK Switches |
587 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

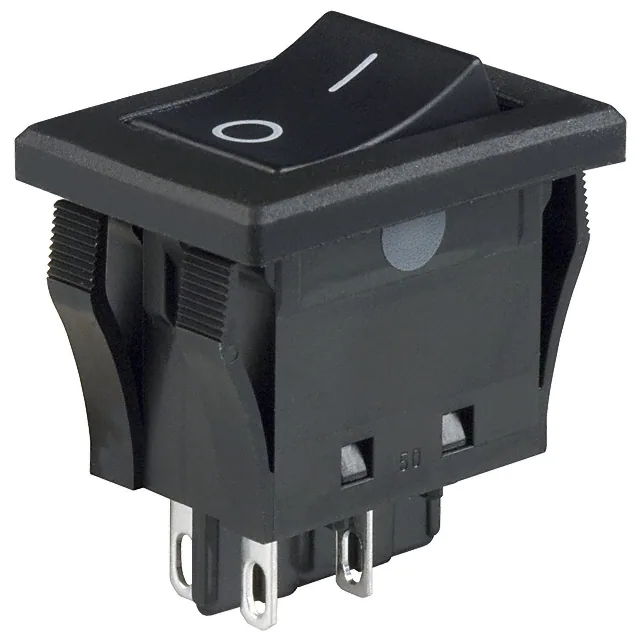

JWMW21RA2ASWITCH ROCKER DPST 10A 125V NKK Switches |
4,856 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
