Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201J26ZBE22SWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
A8A-213SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
ET05J6ABE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
7101J60V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7207J16Z3QE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7203J16ZQE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7205J16ZQE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
E201J1V6QE3SWITCH ROCKER DPDT 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7105J3V3QE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
7201J91ZQE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
U21J16Z3QE22SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7201J50AQE2SWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
KG492A2XXA21XXSWITCH ROCKER DPDT 10A 12V |
0 |
|
Datasheet |
KG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -10°C ~ 65°C | - |
|
7205J10ZQE2SWITCH ROCKER DPDT 5A 120V |
2 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
|

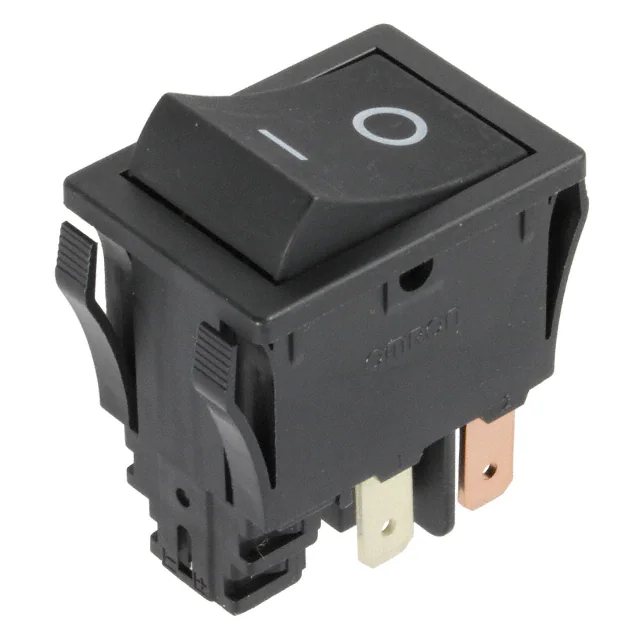

A8GS-T1385KSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8GS-T | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Connector, Quick Connect - 0.187" (4.7mm) | - | Delay - Off, Remote Reset Function | Rectangular - 27.70mm x 19.50mm | -10°C ~ 55°C | cULus, EN, UL |
|

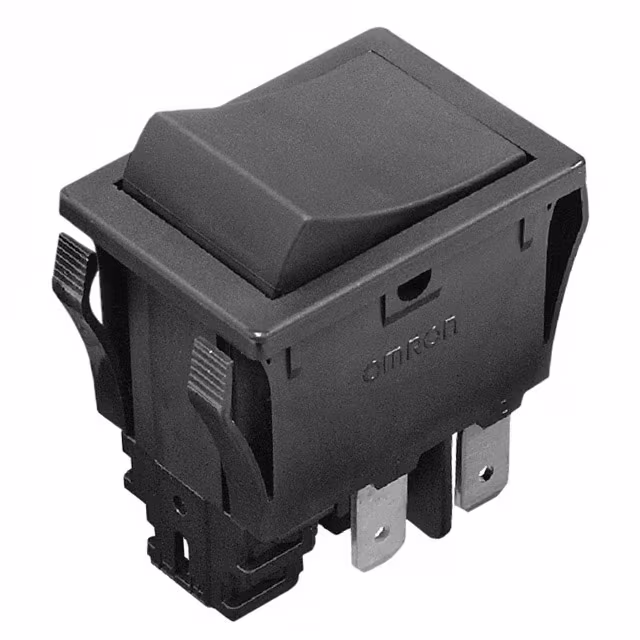

A8GS-T1115KSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8GS-T | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Connector, Solder Lug | - | Delay - Off, Remote Reset Function | Rectangular - 27.70mm x 19.50mm | -10°C ~ 55°C | cULus, EN, UL |
|
|
A8GS-T1185KSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
A8GS-T | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Connector, Quick Connect - 0.187" (4.7mm) | - | Delay - Off, Remote Reset Function | Rectangular - 27.70mm x 19.50mm | -10°C ~ 55°C | cULus, EN, UL |
|
7211J60V3GE2SWITCH ROCKER SP3T 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7303J21ZQI22SWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Potted | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
9221J37Z4QD22SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
9000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | cULus |
