Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2015TJW01-FC-1ASWITCH ROCKER SPDT 6A 125V |
34 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TJW01-FF-1ASWITCH ROCKER SPDT 6A 125V |
33 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TJW01-FB-1ASWITCH ROCKER SPDT 6A 125V |
17 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TJG03-FA-1ASWITCH ROCKER SPDT 0.4VA 28V |
58 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TNG01-DCSWITCH ROCKER SPDT 0.4VA 28V |
18 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TNG01-EASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TNG01-FASWITCH ROCKER SPDT 0.4VA 28V |
18 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TNG01-DBSWITCH ROCKER SPDT 0.4VA 28V |
18 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TJW03-FB-1ASWITCH ROCKER SPDT 6A 125V |
17 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TZW13-JBSWITCH ROCKER SPDT 6A 125V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2018TZW13-JFSWITCH ROCKER SPDT 6A 125V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
C1353AABG3-G72SWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | Sealing Boot | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
JWL12BAA-ASWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
JWL12BCA-ASWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
7105J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
13 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
M2022TXW13-EASWITCH ROCKER DPDT 6A 125V |
28 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2022TXW13-ECSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

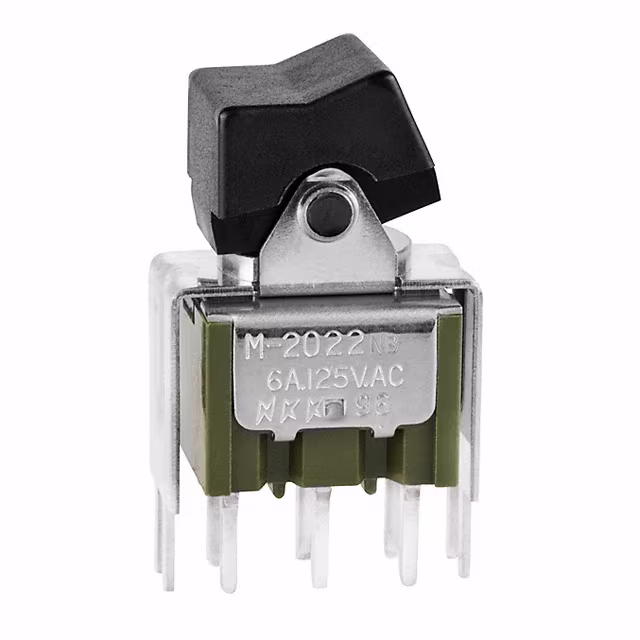

M2022TXW13-FASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2022TXW13-FHSWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2022TXW13-GASWITCH ROCKER DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
