Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

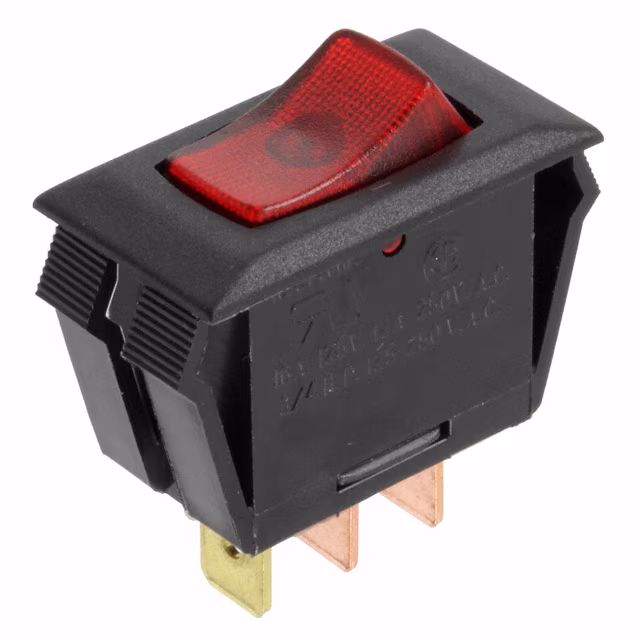

GRLH-2011-1600SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | - | - |
|

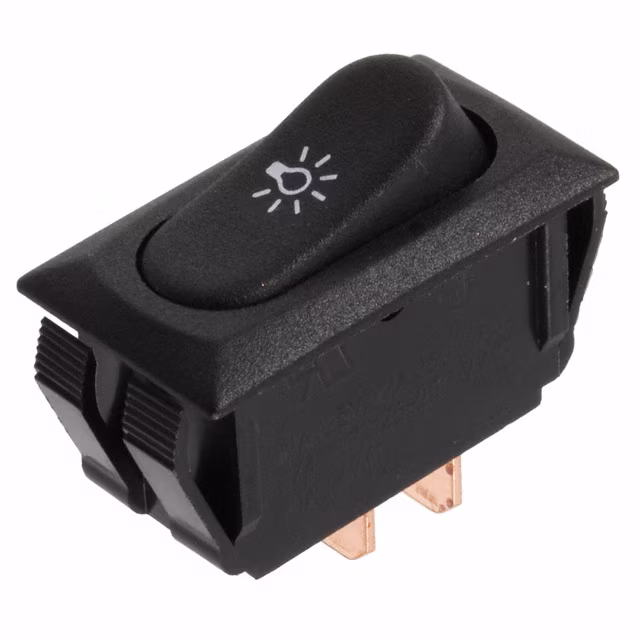

GRS-2011-2411SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | Light Bulb | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

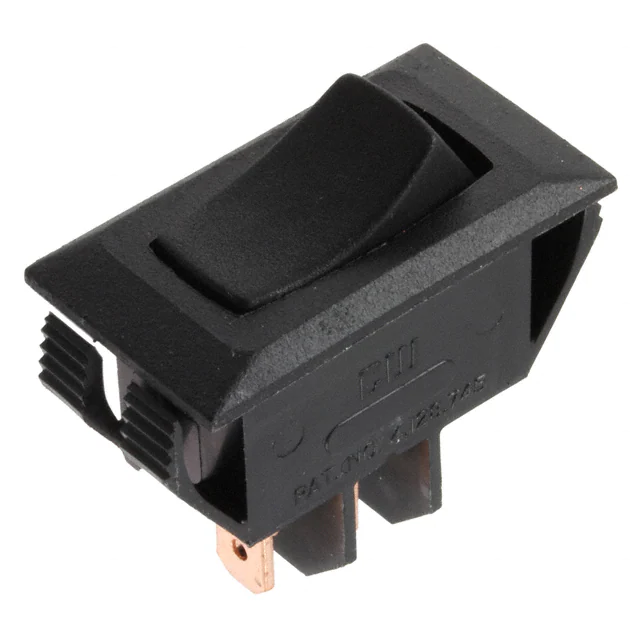

GRS-2011-3034SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|

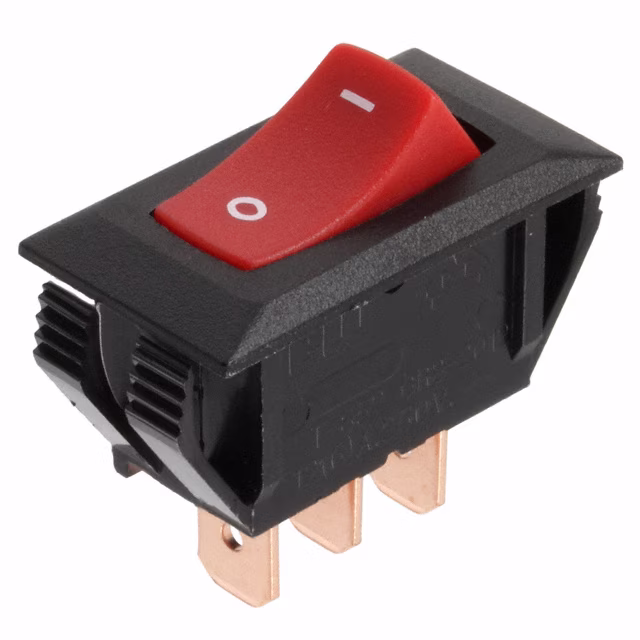

GRS-2012-2051SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRS-2012-2506SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Polarized | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRS-2013C-0014SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Brown | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Terminal Barriers | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRSN-2011-3005SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
GRSN 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Solder Hook | - | - | Rectangular - 27.23mm x 12.19mm | - | - |
|
GRSV-4011-0011SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Polarized, Terminal Barriers | Rectangular - 28.58mm x 12.90mm | - | - |
|
TIHK51-1S-BL-C/I-OSWITCH ROCKER 3PST 10A 250V |
0 |
|
Datasheet |
TIH | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 10A (AC), 15A (DC) | 250 V | 28 V | Concave (Standard V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL, VDE |
|
|
LW3122/CULSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3122/CUL-0100-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3122-E4CC-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red Filter/Diffuser) | No Marking | Incandescent, Red | 6 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3122-F4EE-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Yellow Filter/Diffuser) | No Marking | Incandescent, Yellow | 12 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|

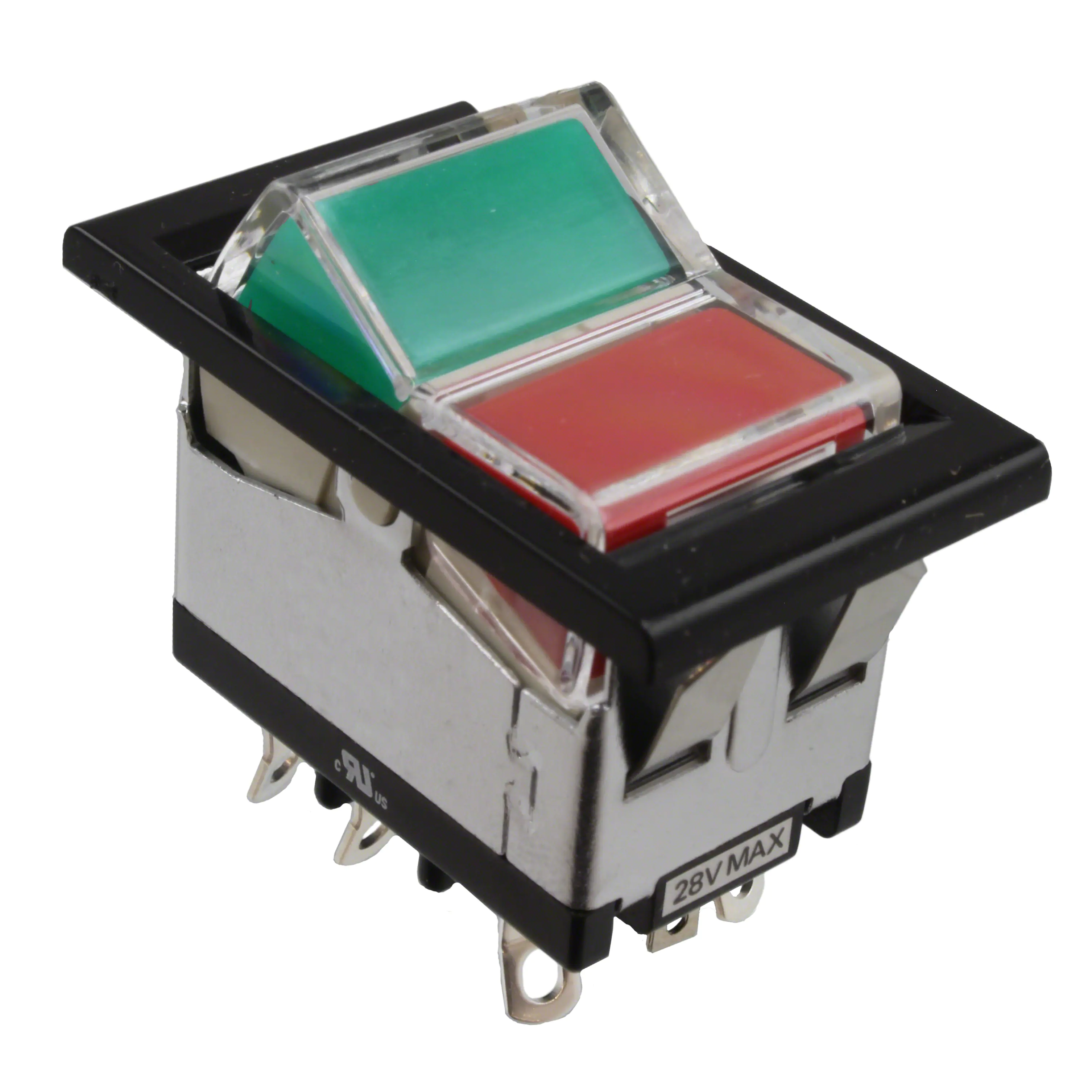

LW3122-K4CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 24 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3122-K4FF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Green Filter/Diffuser) | No Marking | Incandescent, Green | 24 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3123/CUL-L4CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 28 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
LW3123-F4GC-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Blue, White Filter/Diffuser) | No Marking | Incandescent, Blue/Red | 12 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3123-K4CF-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 24 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3125/CUL-0100-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
LW3125/U-0100-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
