Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML24GBE2CA04SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24GBE2CA02SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
4TP7-70SWITCH ROCKER 4PDT 10A 125V |
0 |
|
- |
TP | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | - | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP1-21SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP12-1SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP4-1SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP12-8SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP12-3SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
2TP8-7SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP201-6SWITCH ROCKER SPST-NO 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP8-8SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24GBE2DA05SWITCH ROCKER DPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
2TP77-7"SWITCH, TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2TP16-10SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On-On | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
AML24EBA3DC05SWITCH ROCKER 4PDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | 4PDT | Mom-On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
4TP12-7SWITCH ROCKER 4PDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Flange | 4PDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | - | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP1-1SWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
4TP7-1SWITCH ROCKER 4PDT 15A 125V |
0 |
|
- |
TP | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | - | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|

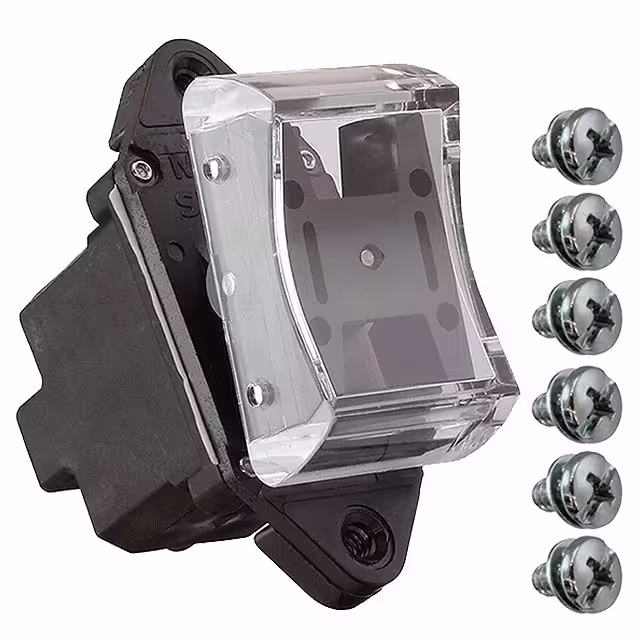

2TP4-5SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
2TP216-8SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
