RFI and EMI - Shielding and Absorbing Materials
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Length | Width | Thickness - Overall | Operating Temperature | Adhesive | Material | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2452676-1FNA CORD 1.0MM X 1M L |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452662-1SNA SHEET 50MM SQ X 1.6MM SAMPLE |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
FAM7-130-130-0.22-1ARF EMI ABSORB SHEET 130MMX5.118" |
6 |
|
Datasheet |
FAM7 | Bulk | Active | Absorbing Sheet | Square | 5.118" (130.00mm) | 5.118" (130.00mm) | 0.008" (0.22mm) | -30°C ~ 120°C | Non-Conductive, Single Sided | - | - | - |
-80X80T0800.jpg)
|
EFG3(03)-80X80T0800RF EMI ABSORB SHEET 3.15"X3.15" |
42 |
|
Datasheet |
EFG3 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 3.150" (80.00mm) | 3.150" (80.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
39430002RF EMI ABSORB SHEET 20MMX0.787" |
47 |
|
Datasheet |
WE-FAS | Bulk | Active | Absorbing Sheet | Square | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.118" (3.00mm) | -40°C ~ 160°C | Conductive | - | - | - |
-120X120T0800.jpg)
|

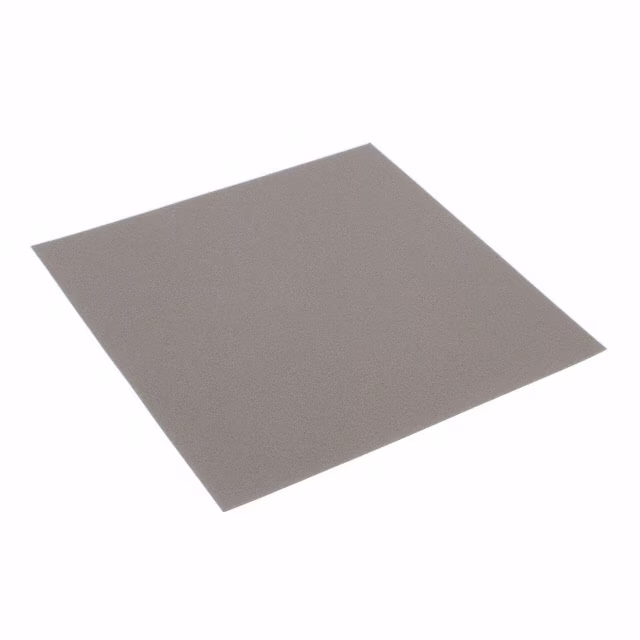

FF1(200)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
23 |
|
Datasheet |
FF1 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.009" (0.23mm) | -40°C ~ 125°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
|
EFW(01)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
39 |
|
Datasheet |
EFW - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
2452654-1SNA CORD 1.6MM X 1M L |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452657-1SNA TUBE 1.6MM OD X 0.5MM ID X 1 |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452684-1FNA SHEET 50MM SQ X 1.2MM SAMPLE |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
IFQ06S-100ND300X200RF EMI SHIELD SHEET 300MMX200MM |
35 |
|
Datasheet |
IFQ06S | Sheet | Active | Shielding Sheet | Sheet | 11.811" (300.00mm) | 7.874" (200.00mm) | 0.005" (0.13mm) | -40°C ~ 125°C | Conductive, Double Sided | - | - | - |
|
|
2452655-1SNA CORD 1.8MM X 1M L |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
39420001RF EMI ABSORB SHEET 2.362X2.362" |
19 |
|
Datasheet |
WE-FAS | Bulk | Active | Absorbing Sheet | Square | 2.362" (60.00mm) | 2.362" (60.00mm) | 0.079" (2.00mm) | -40°C ~ 160°C | Conductive | - | - | - |
-240X80T0800.jpg)
|
FF1(200)-240X80T0800RF EMI ABSORB SHEET 9.449"X3.15" |
26 |
|
Datasheet |
FF1 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 9.449" (240.00mm) | 3.150" (80.00mm) | 0.009" (0.23mm) | -40°C ~ 125°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
|
|
FG2(50)-240X240T2900RF EMI SHLD SHEET 9.449"X9.449" |
30 |
|
Datasheet |
FG2 - FLEX SUPPRESSOR® | Bulk | Active | Shielding Sheet | Sheet | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.002" (0.05mm) | -40°C ~ 105°C | Conductive, Double Sided | Polymer, Magnetic Powder | - | - |
|
|
2452656-1SNA CORD 2.0MM X 1M L |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452677-1FNA CORD 1.6MM X 1M L |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452685-1FNA SHEET 50MM SQ X 1.6MM SAMPLE |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
|
2452680-1FNA TUBE 1.6MM OD X 0.5MM ID X 1 |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
-185X70T0800.jpg)
|
EFS(01)-240X80T0800RF EMI ABSORB SHEET 9.449"X3.15" |
44 |
|
Datasheet |
EFS - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 9.449" (240.00mm) | 3.150" (80.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
