RFI and EMI - Shielding and Absorbing Materials
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Length | Width | Thickness - Overall | Operating Temperature | Adhesive | Material | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-120X120T2900.jpg)
|
EFS(03)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
19 |
|
Datasheet |
EFS - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
EFW(03)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
26 |
|
Datasheet |
EFW - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
374005RF FERRITE SHEET 2.362"X2.362" |
28 |
|
Datasheet |
WE-FSFS | Box | Active | Flexible Ferrite Sheet | Square | 2.362" (60.00mm) | 2.362" (60.00mm) | 0.011" (0.28mm) | -40°C ~ 85°C | Non-Conductive, Single Sided | Rubber, Ferrite Powder, PET Film | - | - |
|
|
374004RF FERRITE SHEET 2.362"X2.362" |
25 |
|
Datasheet |
WE-FSFS | Box | Active | Flexible Ferrite Sheet | Square | 2.362" (60.00mm) | 2.362" (60.00mm) | 0.007" (0.18mm) | -40°C ~ 85°C | Non-Conductive, Single Sided | Rubber, Ferrite Powder, PET Film | - | - |
|
AB5020HF-210X297RF ABSORB SHEET 11.693"X8.268" |
46 |
|
Datasheet |
AB-5000 | Box | Active | Absorbing Sheet | Rectangular | 11.693" (297.00mm) | 8.268" (210.00mm) | 0.008" (0.20mm) | - | Non-Conductive, Single Sided | Polymer Resin, Metal Flakes | - | - |
-80X80T0800.jpg)
|
EFS(10)-80X80T0800RF EMI ABSORB SHEET 3.15"X3.15" |
48 |
|
Datasheet |
EFS - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 3.150" (80.00mm) | 3.150" (80.00mm) | 0.041" (1.03mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
-240X240T0800.JPG)
|
EFG2(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
8 |
|
Datasheet |
EFG2 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
FFAM151*1T1RF FERRITE SHEET 100MMX3.937" |
36 |
|
Datasheet |
FFAM | Bulk | Active | Flexible Ferrite Sheet | Square | 3.937" (100.00mm) | 3.937" (100.00mm) | 0.059" (1.50mm) | -40°C ~ 85°C | Non-Conductive, Single Sided | Ferrite Powder | - | - |
|
|
EFW(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
57 |
|
Datasheet |
EFW - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
1183-11.5-12(6)RF EMI SHLDING SHEET 12" X 11.5" |
6 |
|
Datasheet |
1183 | Box | Active | Shielding Sheet | - | 12.000" (304.80mm) | 11.500" (292.00mm) | 0.003" (0.07mm) | -40°C ~ 130°C | Conductive, Single Sided | Tin-Plated Copper Foil | - | - |
|
|
EFR(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
10 |
|
Datasheet |
EFR - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
IFL05K-200ND300X200RF EMI SHIELD SHEET 300MMX200MM |
13 |
|
Datasheet |
Flexield IFL | Bulk | Active | Shielding Sheet | Rectangular | 11.811" (300.00mm) | 7.874" (200.00mm) | 0.009" (0.24mm) | -40°C ~ 85°C | Non-Conductive, Double Sided | - | - | - |
|
33402RF FERRITE SHEET 11.693"X8.268" |
24 |
|
Datasheet |
WE-FAS | Bag | Active | Flexible Ferrite Sheet | Rectangular | 11.693" (297.00mm) | 8.268" (210.00mm) | 0.009" (0.23mm) | -20°C ~ 60°C | Non-Conductive, Single Sided | Rubber, Ferrite Powder | - | - |
|
|
33401RF FERRITE SHEET 11.693"X8.268" |
89 |
|
Datasheet |
WE-FAS | Bag | Active | Flexible Ferrite Sheet | Rectangular | 11.693" (297.00mm) | 8.268" (210.00mm) | 0.005" (0.13mm) | -25°C ~ 90°C | Non-Conductive, Single Sided | Rubber, Ferrite Powder | - | - |
|

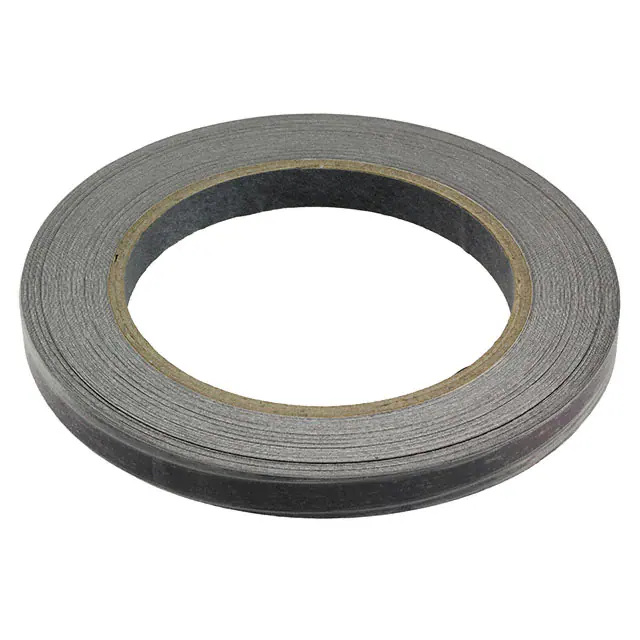

46J8501020.NN00RF EMI SHLD TAPE 65.617'X0.394" |
10 |
|
Datasheet |
86285 | Bulk | Active | Shielding Tape | - | 65.617' (20.00m) | 0.394" (10.00mm) | 0.005" (0.12mm) | - | Conductive, Single Sided | Nickel-Copper (NI/CU) Fabric | - | - |
|
|
1170SQ-12(6)RF EMI SHIELDING SHEET 12" X 12" |
7 |
|
Datasheet |
1170 | Box | Active | Shielding Sheet | Square | 12.000" (304.80mm) | 12.000" (304.80mm) | 0.003" (0.08mm) | -40°C ~ 130°C | Conductive, Single Sided | Aluminum Foil | - | - |
|
|
1182-11.5-12(6)RF EMI SHLDING SHEET 12" X 11.5" |
6 |
|
Datasheet |
1182 | Box | Active | Shielding Sheet | - | 12.000" (304.80mm) | 11.500" (292.00mm) | 0.004" (0.09mm) | - | Conductive, Double Sided | Copper Foil | - | - |
-120X120T0800.jpg)
|
EFS(05)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
23 |
|
Datasheet |
EFS - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.021" (0.53mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFF4(05)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
20 |
|
Datasheet |
EFF4 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.021" (0.53mm) | -40°C ~ 125°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
|

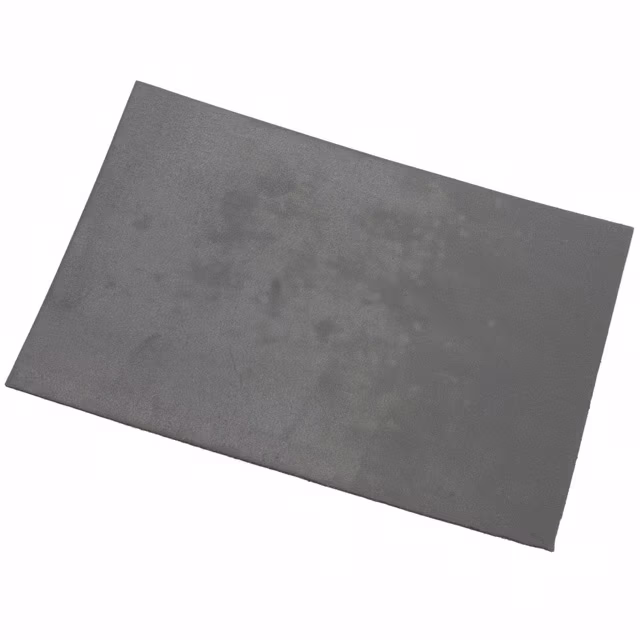

2238-SRF EMI ABSORBING SHEET 6" X 4" |
18 |
|
Datasheet |
Q-Zorb | Bulk | Active | Absorbing Sheet | Square | 6.000" (152.40mm) | 4.000" (101.60mm) | 0.040" (1.02mm) | - | Pressure Sensitive Adhesive (PSA) | Silicone Elastomer | - | - |
RFI and EMI - Shielding and Absorbing Materials Electronic Components
Explore RFI and EMI - Shielding and Absorbing Materials electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
