RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB-02RF TXRX MOD BT PCB TH SMD |
93 |
|
Datasheet |
- | 20-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 10dBm | -93dBm | ADC, GPIO, PWM, SPI | PCB Trace | PHY6212 | 138kB SRAM | 2.7V ~ 3.6V | 7mA | 25mA | Surface Mount | -40°C ~ 85°C |
|
PB-01RF TXRX MOD BT PCB TH SMD |
87 |
|
Datasheet |
- | 20-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 10dBm | -93dBm | ADC, GPIO, PWM, SPI | PCB Trace | PHY6212 | 138kB SRAM | 2.7V ~ 3.6V | 7mA | 25mA | Surface Mount | -40°C ~ 85°C |
|

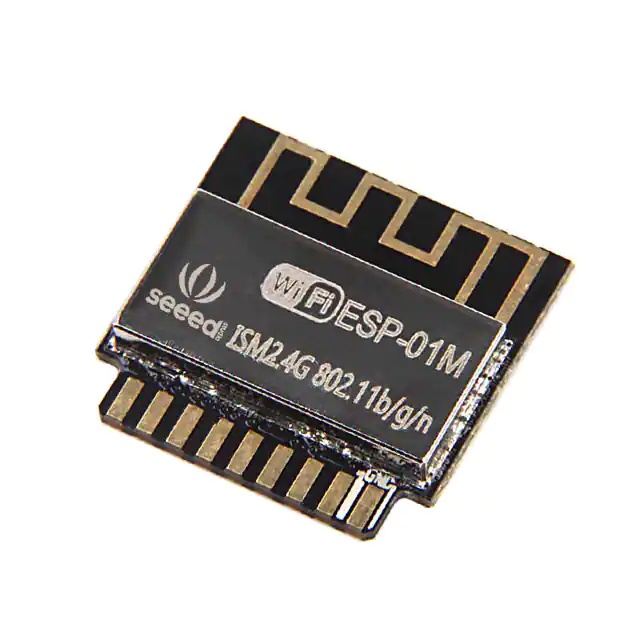

102990965RF TXRX MOD WIFI THCARD EDGE |
74 |
|
Datasheet |
- | Module | Bulk | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 54Mbps | 16dBm | -90dBm | UART | Integrated, Trace | ESP8285 | 1MB Flash | 3V ~ 3.6V | 300mA | 300mA | Card Edge | -20°C ~ 85°C |
|
MDBT42TV-PATRF TXRX MOD BT PCB TH SMD |
100 |
|
Datasheet |
- | 19-SMD Module | Retail Package | Active | - | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -96dBm | UART | PCB Trace | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
MDBT42TV-ATRF TXRX MOD BLUETOOTH CHIP SMD |
93 |
|
Datasheet |
- | 19-SMD Module | Retail Package | Active | - | Bluetooth | Bluetooth v5.4 | - | 2.36GHz ~ 2.5GHz | 2Mbps | 4dBm | -96dBm | UART | Integrated, Chip | nRF52805 | 192kB Flash, 24kB RAM | 1.7V ~ 3.6V | 3.5mA ~ 11.2mA | 2.1mA ~ 15.4mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
AI-WB2-01MRF TXRX MOD BT WIFI PCB THTH |
48 |
|
Datasheet |
- | 18-DIP Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, PWM, SDIO, SPI, UART | PCB Trace | BL602 | 2MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Through Hole | -40°C ~ 85°C |
|
|
AI-WB2-13RF TXRX MOD BT WIFI PCB TH SMD |
50 |
|
Datasheet |
- | 18-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, PWM, SDIO, SPI, UART | PCB Trace | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-12SRF TXRX MOD BT WIFI PCB TH SMD |
50 |
|
Datasheet |
- | 16-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, PWM, SDIO, SPI, UART | PCB Trace | BL602 | 2MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-07SRF TXRX MOD BT WIFIIPEX SMD |
48 |
|
Datasheet |
- | 16-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, PWM, SDIO, SPI, UART | Antenna Not Included, I-PEX | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-13URF TXRX MOD BT WIFIIPEX SMD |
50 |
|
Datasheet |
- | 18-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, PWM, SDIO, SPI, UART | Antenna Not Included, I-PEX | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|
TB-02RF TXRX MOD BT PCB TH SMD |
100 |
|
Datasheet |
- | 13-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 10dBm | -93dBm | ADC, GPIO, PWM, SPI | PCB Trace | - | - | 2.7V ~ 3.6V | - | 12.62mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-01SRF TXRX MOD BT WIFI PCB THTH |
35 |
|
Datasheet |
- | 8-DIP Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, PWM, SPI, UART | PCB Trace | BL602 | 2MB Flash | 2.7V ~ 3.6V | 63mA | 240mA ~ 320mA | Through Hole | -40°C ~ 85°C |
|
TB-04RF TXRX MODULE BLUETOOTH SMD |
49 |
|
Datasheet |
- | 20-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 10dBm | -93dBm | ADC, GPIO, PWM, SPI | Antenna Not Included | - | - | 2.7V ~ 3.6V | - | 20.69mA | Surface Mount | -20°C ~ 70°C |
|
TB-03FRF TXRX MOD BT PCB TH SMD |
77 |
|
Datasheet |
- | 22-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 10dBm | -93dBm | ADC, GPIO, I2S, PWM, SPI | PCB Trace | - | - | 2.7V ~ 3.6V | - | 6.36mA ~ 20.54mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-M1RF TXRX MOD BT WIFI PCB TH SMD |
50 |
|
Datasheet |
- | 61-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, JTAG, PWM, SDIO, SPI, UART | PCB Trace | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|
|
AI-WB2-M1-IRF TXRX MOD BT WIFIIPEX SMD |
50 |
|
Datasheet |
- | 61-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, JTAG, PWM, SDIO, SPI, UART | Antenna Not Included, I-PEX | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | - |
|
|
AI-WB2-32SRF TXRX MOD BT WIFIIPEX TH SMD |
47 |
|
Datasheet |
- | 38-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72.2Mbps | 19dBm | -98dBm | GPIO, I2C, JTAG, PWM, SDIO, SPI, UART | Antenna Not Included, I-PEX, PCB Trace | BL602 | 4MB Flash | 2.7V ~ 3.6V | 65mA | 230mA ~ 260mA | Surface Mount | -40°C ~ 85°C |
|

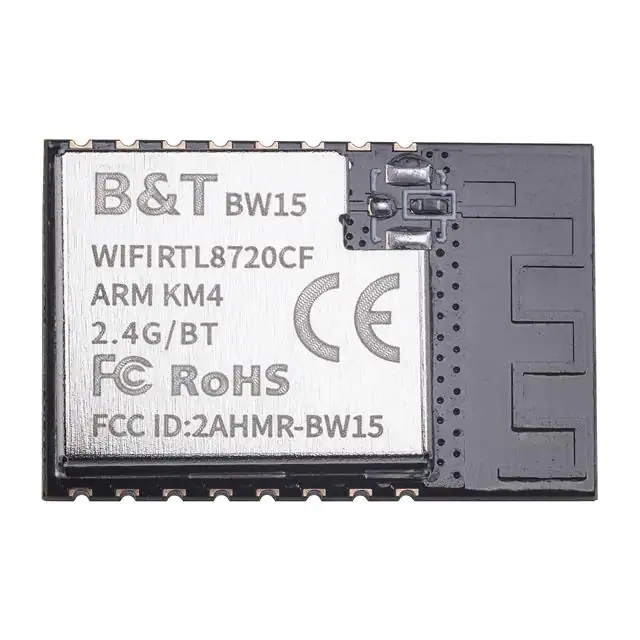

BW15RF TXRX MOD BT PCB TRACEIPEX SMD |
50 |
|
Datasheet |
- | 16-SMD Module | Cut Tape (CT) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | 64-QAM, BPSK, CCK | 2.4GHz | 54Mbps | 18dBm | -98dBm | ADC, GPIO, I2C, PWM, SPI, UART | PCB Trace, Antenna Not Included, I-PEX | - | 2MB Flash | 3V ~ 3.6V | - | 600mA | Surface Mount | -40°C ~ 85°C |
|
ZM3102AM-CME1RF TXRX MOD ISM<1GHZSMD |
61 |
|
Datasheet |
Z-Wave® | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | FSK | 868MHz | 40kbps | -2dBm | -102dBm | SPI, UART | Antenna Not Included | - | 32kB Flash, 2kB SRAM | 2.1V ~ 3.6V | 23mA | 24mA ~ 36mA | Surface Mount | -15°C ~ 85°C |
|
DA14531MOD-00F0100CRF TXRX MOD BT TH SMD |
88 |
|
- |
SmartBond™ | Module | Tape & Reel (TR) | Active | Verified | Bluetooth | Bluetooth v5.1 | - | 2.4GHz ~ 2.4835GHz | - | 2.2dBm | -93dBm | ADC, GPIO, I2C, SPI, UART | Integrated, Trace | DA14531 | 128kB Flash, 144kB ROM, 48kB RAM | 1.8V ~ 3.3V | 2mA | 4mA | Surface Mount | -40°C ~ 85°C |
