RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WIZFI360IO-HRF TXRX MOD WIFI THTHROUGH HOLE |
26 |
|
Datasheet |
- | 20-DIP Module | Box | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 2Mbps | - | - | UART | Integrated, Trace | - | - | 3V ~ 3.6V | 110mA | 230mA | Through Hole | -40°C ~ 85°C |
|

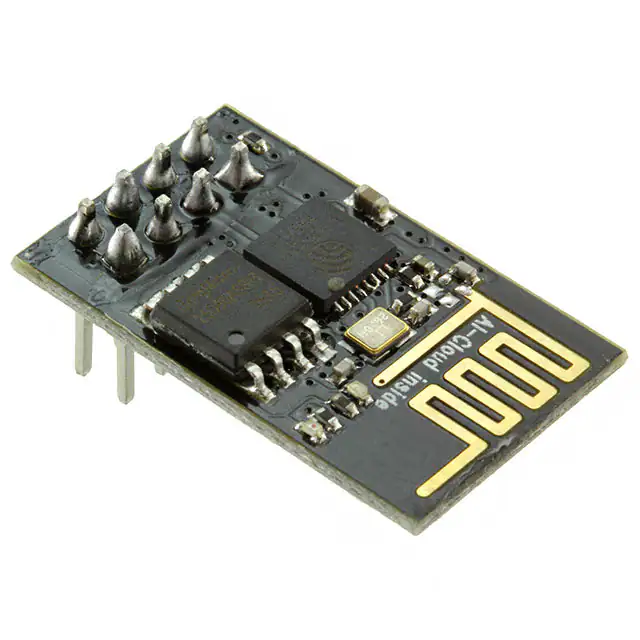

317060016RF TXRX MOD WIFI THTHROUGH HOLE |
71 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz ~ 2.48GHz | 72.2Mbps | 15dBm | -98dBm | UART | Integrated, Trace | ESP8266 | 1MB Flash | 3.3V | 62mA | 215mA | Through Hole | -20°C ~ 100°C |
|
2491RF TXRX MOD WIFI TH SMD |
26 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz ~ 2.5GHz | 72.2Mbps | 20.5dBm | -98dBm | I2C, I2S, SDIO, SPI, UART | Integrated, Trace | ESP8266 | 4MB Flash | 3V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | Surface Mount | -40°C ~ 125°C |
|
CYBLE-333074-02RF TXRX MOD BLUETOOTHU.FL SMD |
62 |
|
Datasheet |
AIROC™ Bluetooth® | 43-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz | 6Mbps | 12dBm | -94.5dBm | ADC, I2C, PWM, SPI, UART | Antenna Not Included, U.FL | CYW20835 | 512kB Flash, 384kB RAM | 2.5V ~ 3.6V | 8mA | 18mA | Surface Mount | -30°C ~ 85°C |
|
BM70BLES1FC2-0B05BARF TXRX MOD BLUETOOTH CHIP SMD |
86 |
|
Datasheet |
- | 33-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.402GHz ~ 2.48GHz | - | 0dBm | -90dBm | ADC, GPIO, I2C, PWM, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 10mA | 10mA | Surface Mount | -40°C ~ 85°C (TA) |
|
WFI32E01PE-IRF TXRX MOD WIFI PCB TRACE SMD |
80 |
|
Datasheet |
- | 54-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz ~ 2.4835GHz | 54Mbps | 20.5dBm | -99dBm | I2C, JTAG, SPI, UART, USB | PCB Trace | WFI32E01 | 1MB Flash, 256kB SRAM | 3V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
BGM220PC22WGA2RF TXRX MOD BLUETOOTH CHIP SMD |
86 |
|
Datasheet |
- | 31-SMD Module | Strip | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 8dBm | -98.9dBm | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART | Integrated, Chip | EFR32BG22 | 352kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.3mA ~ 4.8mA | 4.8mA ~ 10.8mA | Surface Mount | -40°C ~ 85°C (TA) |
|
ATWINC1510-MR210PB1976RF TXRX MOD WIFI TH SMD |
66 |
|
Datasheet |
- | 28-SMD Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DSSS, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 8MB Flash, 128kB RAM | 3V ~ 4.2V | 61mA | 264mA ~ 269mA | Surface Mount | -40°C ~ 85°C |
|
ESP-12SRF TXRX MOD WIFI PCB TRACE SMD |
42 |
|
Datasheet |
- | Module | Bag | Active | Not Verified | WiFi | 802.11b/g/n | 64-QAM, BPSK, CCK | 2.412GHz ~ 2.484GHz | 54Mbps | 16dBm | -90dBm | ADC, I2C, PWM, SPI, UART | PCB Trace | - | - | 3V ~ 3.6V | - | 11.1mA | Surface Mount | -20°C ~ 85°C |
|
BM78SPPS5MC2-0006AARF TXRX MOD BLUETOOTH CHIP SMD |
49 |
|
Datasheet |
- | 33-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | 115.2kBaud | 2dBm | -92dBm | I2C, UART | Integrated, Chip | - | 4MB Flash, 320kB ROM, 28kB SRAM | 3.3V ~ 4.2V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
MGM240PA32VNA3RF TXRX MOD 802.15.4 BT TH SMD |
81 |
|
- |
- | Module | Strip | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz | 2Mbps | 20dBm | -106dBm | GPIO, I2C, I2S, IrDA, JTAG, PWM, SPI, UART, USART | PCB Trace | EFR32MG24 | 1.5MB Flash, 256kB RAM | 1.8V ~ 3.8V | 4.5mA ~ 5.2mA | 4.8mA ~ 158mA | Surface Mount | -40°C ~ 105°C |
|
|
MGM240PB32VNA3RF TXRX MOD 802.15.4 BT TH SMD |
59 |
|
- |
- | Module | Strip | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz | 2Mbps | 20dBm | -106dBm | GPIO, I2C, I2S, IrDA, JTAG, PWM, SPI, UART, USART | PCB Trace | EFR32MG24 | 1.5MB Flash, 256kB RAM | 1.8V ~ 3.8V | 4.5mA ~ 5.2mA | 4.8mA ~ 158mA | Surface Mount | -40°C ~ 105°C |
|
TANGO-24PA-PCBANTRF TXRX MOD ISM > 1GHZ TRACE SMD |
48 |
|
Datasheet |
Tango | Module | Bulk | Active | Not Verified | General ISM > 1GHz | - | - | 2.4GHz | 2Mbps | 20dBm | - | SPI | Integrated, Trace | nRF24L01 | - | 1.8V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

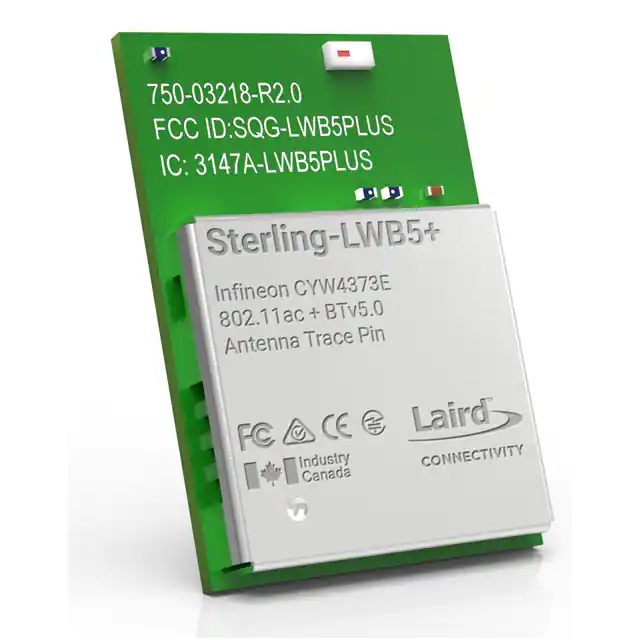

453-00047CRF TXRX MOD BT WIFI THPIN SMD |
13 |
|
Datasheet |
Sterling-LWB5+ | 68-SMD Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n/ac, Bluetooth v5.0 | 16QAM, 64QAM, 256QAM, 4DPSK, BPSK, CCK, DSSS, DQPSK, GFSK, OFDM, QPSK | 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.825GHz | 433.3Mbps | 18dBm | -96dBm | GPIO, HCI, PCM, SDIO, SPI, UART, USB | Trace Pin | CYW4373EUBGT | - | 3.2V ~ 4.8V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
EMBC22-F141-H0001RF TXRX MOD BT PCB THCHAS MNT |
12 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 6dBm | - | - | PCB Trace | - | - | 2V ~ 3.6V | - | - | Chassis Mount | -20°C ~ 60°C |
|
|
XBRR-24DMUMRF TXRX MOD BT TRACE + U.FL SMD |
90 |
|
Datasheet |
XBee® 802.15.4 | 34-SMD Module | Tray | Active | Not Verified | 802.15.4, Bluetooth | Zigbee® | DSSS | 2.4GHz | 250kbps | 8dBm | -103dBm | I2C, SPI, UART | Integrated, Trace + U.FL | EFR32MG | 1MB Flash, 96kB RAM | 1.71V ~ 3.8V | 14mA | 193mA | Surface Mount | -40°C ~ 85°C |
|

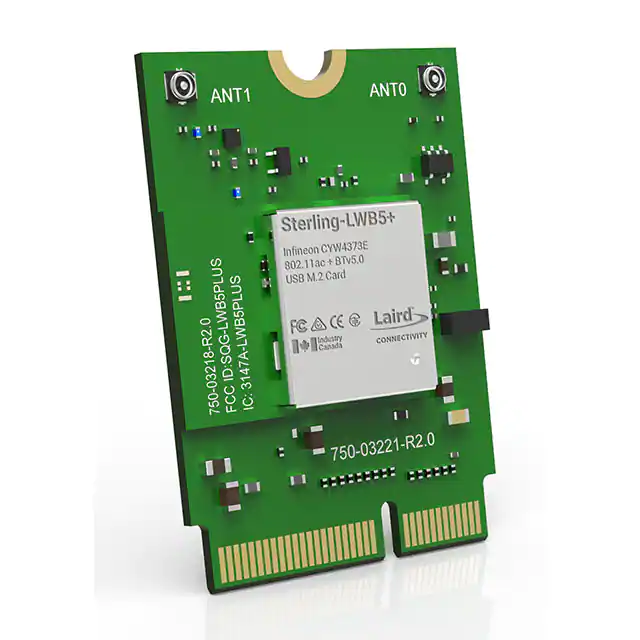

453-00048RF TXRX MOD BT IU.FL CARD |
96 |
|
Datasheet |
Sterling-LWB5+ | Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11ac, Bluetooth v5.0 | 256QAM | 2.4GHz, 5GHz | 433.3Mbps | 18dBm | - | SDIO, UART | Antenna Not Included, U.FL | - | - | 3.3V | - | - | Card Edge | -40°C ~ 85°C |
|
|
BT122-A-V2RF TXRX MOD BT TH SMD |
79 |
|
Datasheet |
BT122 | 20-SMD Module | Strip | Active | Not Verified | Bluetooth | Bluetooth v4.2 +EDR | - | 2.402GHz ~ 2.48GHz | - | 11dBm | -95dBm | ADC, GPIO, I2C, UART | Integrated Trace | - | 256kB Flash, 32kB RAM | 2.2V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|
|
XBRR-24Z8ST-JRF TXRX MOD 802.15.4 BTSMA TH |
48 |
|
Datasheet |
XBee® 802.15.4 | 20-DIP Module | Tray | Active | Not Verified | 802.15.4, Bluetooth | Zigbee® | DSSS | 2.4GHz | 250kbps | 8dBm | -103dBm | I2C, SPI, UART | Antenna Not Included, SMA | EFR32MG | 1MB Flash, 96kB RAM | 1.71V ~ 3.8V | 14mA | 32mA | Through Hole | -40°C ~ 85°C |
|
RF-LORA-868-SORF TXRX MOD ISM<1GHZSMD |
12 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | General ISM < 1GHz | LoRa™ | FSK, GFSK, GMSK, MSK | 868MHz | 300kbps | 20dBm | -130dBm | SDIO, SPI | Antenna Not Included | SX1272 | - | 2.2V ~ 3.7V | 10mA | 18mA ~ 125mA | Surface Mount | 0°C ~ 55°C |
