RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EG06ELA-512-SGARF TXRX MOD CELL NAV SMD |
148 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA | - | - | 300Mbps | - | - | ADC, GPIO, I2C, PCM, UART, USB | Antenna Not Included | MDM9240-1 | - | 3.3V ~ 4.3V | 18mA | 18mA | Surface Mount | -35°C ~ 75°C |
|
MTSMC-LVW3-U.R4RF TXRX MODULE CELL/NAV U.FL TH |
50 |
|
Datasheet |
SocketModem® Cell | 64-DIP Module, 45 Leads | Box | Obsolete | Not Verified | Cellular, Navigation | 4G LTE CAT-1 (Verizon), GNSS | - | 700MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | USB | Antenna Not Included, U.FL | - | - | 3.3V ~ 5V | 104mA | 104mA | Through Hole | -40°C ~ 85°C |
|

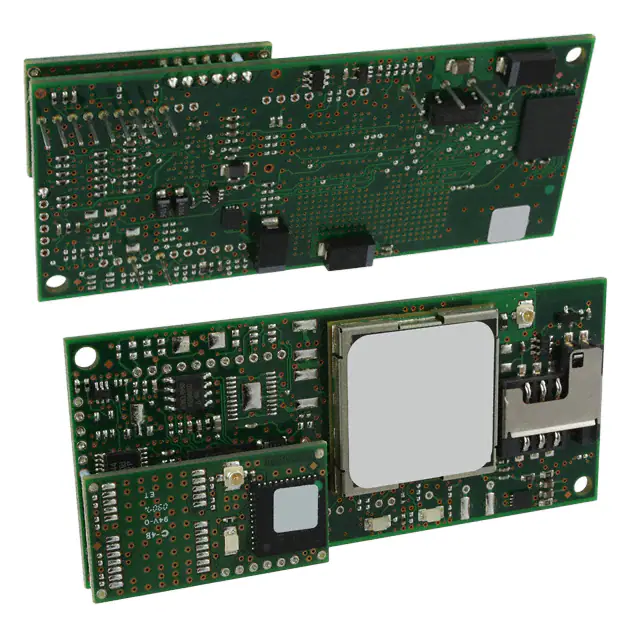

MTSMC-G2-GP-EDRF TXRX MODULE CELL/NAV U.FL TH |
35 |
|
Datasheet |
SocketModem® iCell | Module | Tray | Obsolete | Not Verified | Cellular, Navigation | GPRS, GPS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 921.6kbps | 33dBm | -108dBm | UART | Antenna Not Included, U.FL | - | - | 5V | 280mA | 280mA | Through Hole | -40°C ~ 85°C |
|
|
MTQ-LEU7-B02.R2RF TXRX MOD CELL U.FL CHAS MNT |
65 |
|
Datasheet |
MultiTech Dragonfly™ | Module | Bulk | Obsolete | Not Verified | Cellular | LTE CAT-4 | - | 700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 150Mbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3.3V, 5V | 792mA | 792mA | Chassis Mount | -40°C ~ 85°C |
|
|
EG06ALA-512-SGASRF TXRX MOD CELL NAV SMD |
241 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA | - | - | 300Mbps | - | - | ADC, GPIO, I2C, PCM, UART, USB | Antenna Not Included | MDM9240-1 | - | 3.3V ~ 4.3V | 20mA | 20mA | Surface Mount | -35°C ~ 75°C |
|
|
MTSMC-LAT3-U.R4RF TXRX MOD CELL U.FL TH |
50 |
|
Datasheet |
SocketModem® Cell | 64-DIP Module, 45 Leads | Box | Obsolete | Not Verified | Cellular | 4G LTE CAT-3 (AT&T/T-Mobile) | - | 700MHz, 850MHz, 1.7GHz, 1.9GHz | 10Mbps | - | - | USB | Antenna Not Included, U.FL | - | - | 3.3V ~ 5V | 32mA | 32mA | Through Hole | -40°C ~ 85°C |
|
SC200RNANA-E51-UGNDARF TXRX MOD BT NAV WIFISMD |
85 |
|
Datasheet |
SC200R | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Navigation, WiFi | 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS | - | 2.4GHz, 5GHz | 150Mbps | - | - | ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB | Antenna Not Included | Qualcomm® Snapdragon QCM2150 | - | 3.55V ~ 4.2V | - | - | Surface Mount | -35°C ~ 75°C |
|
EP06ALA-512-SGADRF TXRX MOD CEL/NAV CARD |
53 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Cellular, Navigation | BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, WCDMA | - | - | 300Mbps | - | - | I2C, PCM, USB | Antenna Not Included | MDM9240-1 | - | 3.1V ~ 4.4V | 32.12mA | 32.12mA | Card Edge | -35°C ~ 75°C |
|

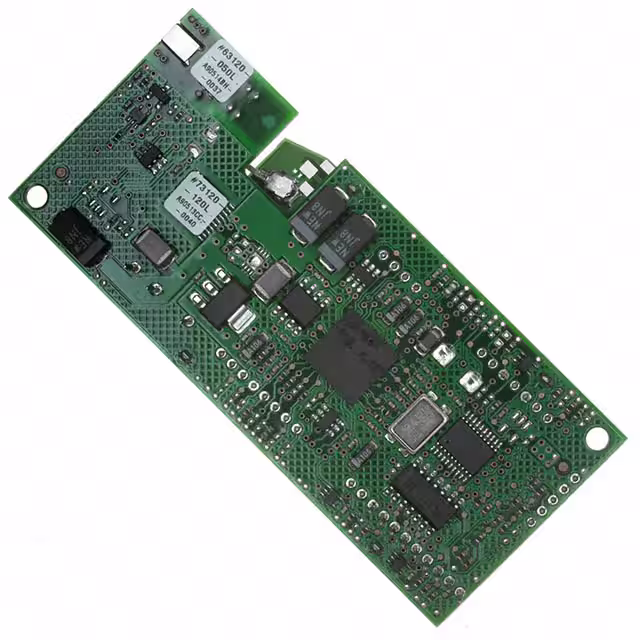

MTSMC-G-F4-IP-ED.R1RF TXRX MOD CELLMMCX TH |
47 |
|
Datasheet |
SocketModem® GPRS | Module | Tray | Obsolete | Not Verified | Cellular | GPRS, GSM | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 115.2kbps | - | - | UART | Antenna Not Included, MMCX | - | - | 5V | 400mA | 400mA | Through Hole | -30°C ~ 70°C |
|

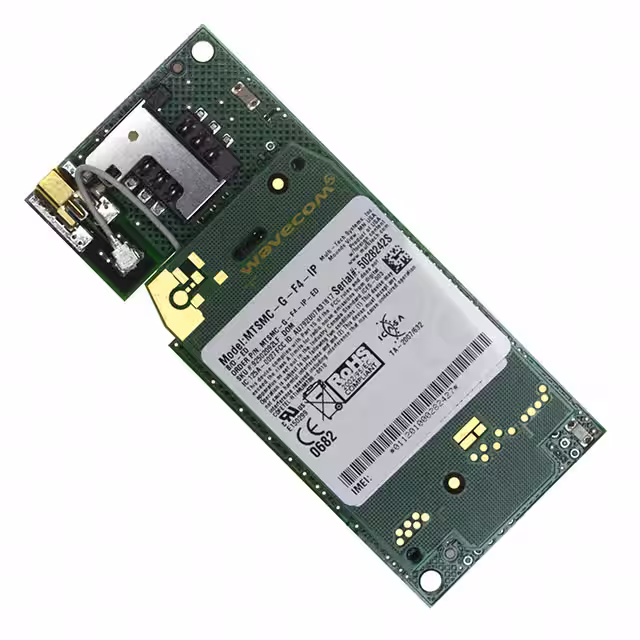

MTSMC-G-F4-IP-EDRF TXRX MOD CELLMMCX TH |
42 |
|
Datasheet |
SocketModem® GPRS | Module | Tray | Obsolete | Not Verified | Cellular | GPRS, GSM | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 115.2kbps | - | - | UART | Antenna Not Included, MMCX | - | - | 5V | 400mA | 400mA | Through Hole | -30°C ~ 70°C |
|

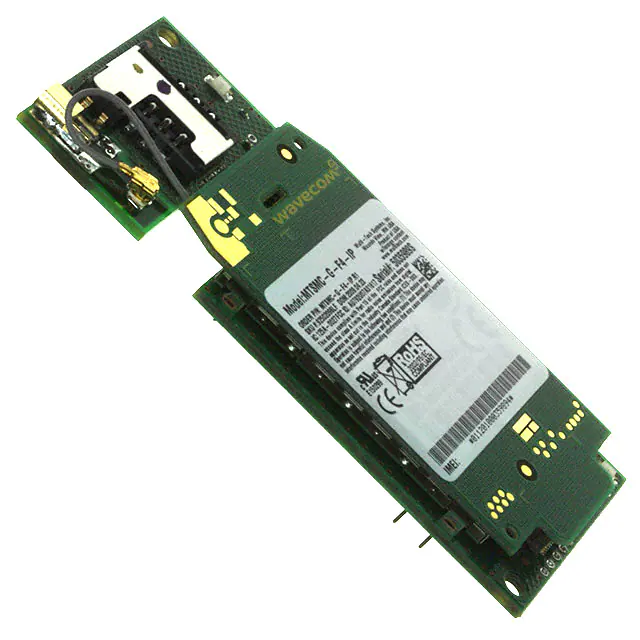

MTSMC-G-F4-IP.R1RF TXRX MOD CELLMMCX TH |
34 |
|
Datasheet |
SocketModem® GPRS | Module | Tray | Obsolete | Not Verified | Cellular | GPRS, GSM | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 115.2kbps | - | - | UART | Antenna Not Included, MMCX | - | - | 5V | 400mA | 400mA | Through Hole | -30°C ~ 70°C |
|
PLAS9-W REL.1RF TXRX MODULE CELL SMD |
49 |
|
Datasheet |
Cinterion PLAS9 | 208-BLGA Module | Tape & Reel (TR) | Obsolete | Not Verified | Cellular | EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSUPA, LTE, UMTS | 64-QAM | 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 300Mbps | 33dBm | - | USB | Antenna Not Included | Qualcom MDM9230 | - | 3.3V ~ 4.2V | - | 30mA ~ 800mA | Surface Mount | -40°C ~ 95°C |
|

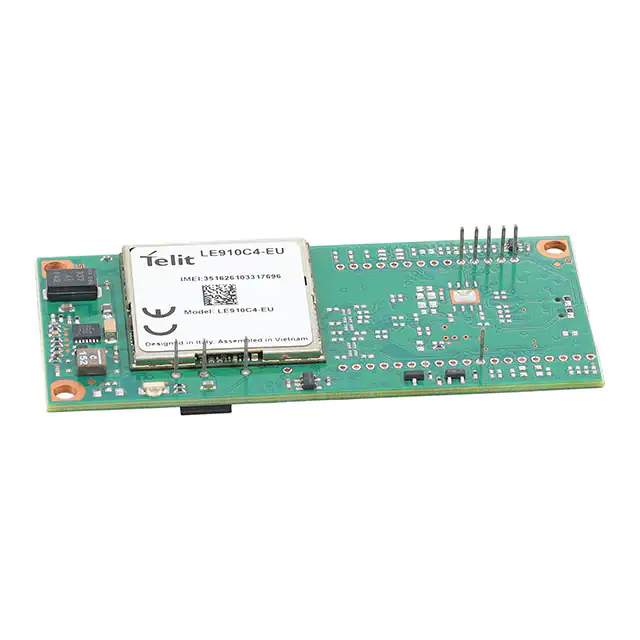

MTSMC-L4E1-U.R2RF TXRX MODULE CELL/NAV U.FL TH |
71 |
|
Datasheet |
SocketModem® Cell | 64-DIP Module, 45 Leads | Box | Obsolete | Not Verified | Cellular, Navigation | 4G LTE CAT-3 | - | 700MHz, 800MHz, 900MHz, 2.1GHz, 2.6GHz | 150Mbps | - | - | USB | Antenna Not Included, U.FL | - | - | 3.3V ~ 5V | - | - | Through Hole | -40°C ~ 85°C |
|
SC600TWFPA-E53-UNNNARF TXRX MOD BT NAV WIFISMD |
848 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Navigation, WiFi | 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 300Mbps | 33dBm | - | ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8953-B | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 65°C |
|
EG12GTPA-512-SGASRF TXRX MODULE CELL SMD |
247 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Cellular | HSPA+, LTE, UMTS | 256-QAM | - | 600Mbps | - | - | USB | Antenna Not Included | SDX20-2 | - | - | - | - | Surface Mount | - |
|
MTSMC-MNG2.R1RF TXRX MODULE CELL/NAV U.FL TH |
171 |
|
Datasheet |
SocketModem® Cell | Module | Box | Not For New Designs | Not Verified | Cellular, Navigation | GNSS, GPS, LTE | - | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | 375kbps | - | - | Serial | Antenna Not Included, U.FL | - | - | 3.3V, 5V | 14mA | 14mA | Through Hole | -40°C ~ 85°C |
|
|
SC600TEMPA-E53-UGADARF TXRX MOD BT NAV WIFISMD |
998 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, Navigation, WiFi | 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS | - | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 300Mbps | 33dBm | - | ADC, GPIO, I2C, I2S, SDIO, UART, SPI, USB | Antenna Not Included | Qualcomm® Snapdragon MSM8953-B | - | 3.55V ~ 4.4V | - | - | Surface Mount | -35°C ~ 65°C |
|
|
MPCI-L220-02SRF TXRX MOD CELLULARCARD EDGE |
76 |
|
Datasheet |
MPCI-L2 | Module | Tray | Obsolete | Not Verified | Cellular | EDGE, GSM, HSDPA, HSUPA, LTE | 8PSK, GMSK | 850MHz, 900MHz, 2.1GHz | 150Mbps | 18dBm | - | mPCIe, USB | Antenna Not Included | - | - | 3V ~ 3.6V | 880mA | 880mA | Card Edge | -20°C ~ 65°C |
|
MPCI-L280-03S-03RF TXRX MOD CELLULARCARD EDGE |
139 |
|
Datasheet |
MPCI-L2 | Module | Tray | Obsolete | Not Verified | Cellular | EDGE, GSM, GPRS, HSDPA, HSUPA, LTE, UMTS | 8PSK, GMSK | 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 150Mbps | 33dBm | - | USB | Antenna Not Included | - | - | 3V ~ 3.6V | 245mA ~ 880mA | 245mA ~ 880mA | Card Edge | -40°C ~ 85°C |
|

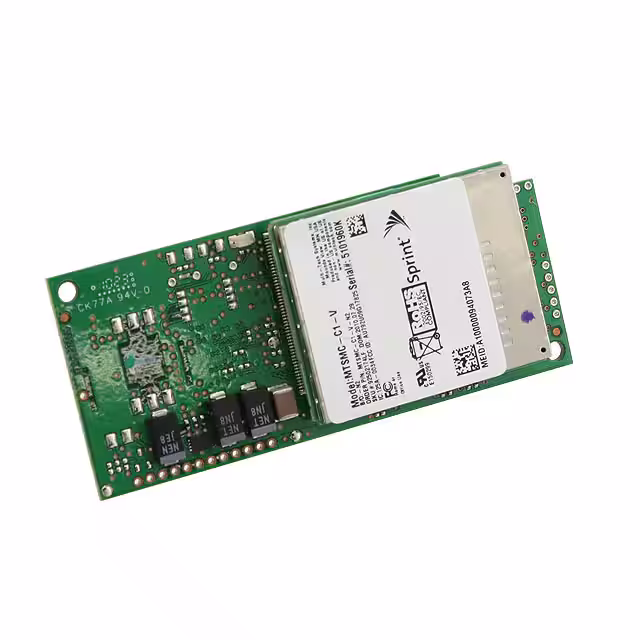

MTSMC-C1-V-N2RF TXRX MOD CELL U.FL TH |
40 |
|
- |
SocketModem® Cell | Module | Tray | Obsolete | Not Verified | Cellular | CDMA | - | 800MHz, 1.9GHz | 153.6kbps | - | - | UART | Antenna Not Included, U.FL | - | - | 5V | 585mA | 585mA | Through Hole | -30°C ~ 70°C |
RF Transceiver Modules and Modems Electronic Components
Explore RF Transceiver Modules and Modems electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
