RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XA1110_1103891RF TXRX MODULE NAVIGATION SMD |
0 |
|
Datasheet |
XA - AirPrime® | Module | Tape & Reel (TR) | Obsolete | Not Verified | Navigation | GPS, GLONASS | - | 1.598GHz ~ 1.575GHz, 1.605GHz | 9.6kbps | - | -165dBm | I2C, SPI, UART | Antenna Not Included | MT3333 | - | 3V ~ 4.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
BX3105_1103841RF TXRX MOD BT WIFI TH SMD |
0 |
|
Datasheet |
BX - AirPrime® | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | DSSS, CCK, OFDM | 2.4GHz ~ 2.485GHz | 150Mbps | 18dBm | -97.5dBm | I2C, I2S, PWM, SPI, UART | Integrated, Trace | - | - | 2.3V ~ 3.6V | 85mA | 224mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
AWA24RRF TXRX MODULE ISM W/ANT |
0 |
|
- |
* | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZM5304AE-CME3RF TXRX MOD ISM<1GHZ SMD |
0 |
|
Datasheet |
Z-Wave® | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | - | 868MHz | 100Kbps | 4dBm | -103dBm | SPI, UART, USB | - | SD3503 | - | 2.3V ~ 3.6V | 33mA | 36mA | Surface Mount | - |
|

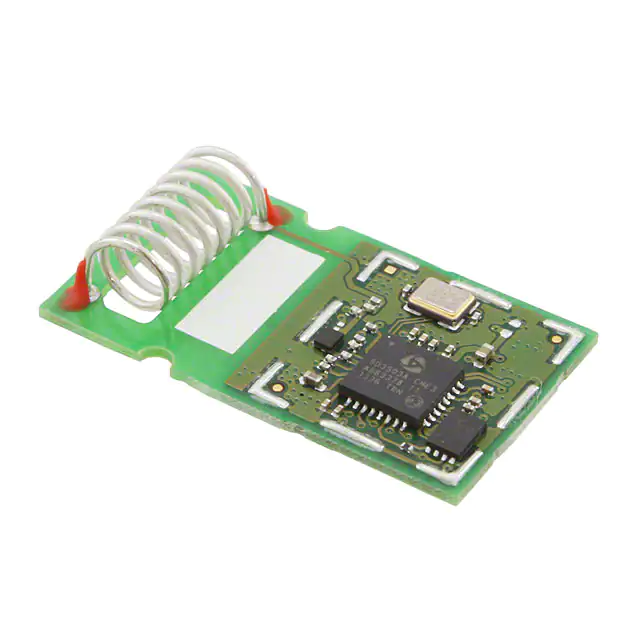

ZM5304AH-CME3RF TXRX MOD ISM<1GHZ SMD |
0 |
|
Datasheet |
Z-Wave® | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | - | 921MHz | 100Kbps | 4dBm | -103dBm | SPI, UART, USB | - | SD3503 | - | 2.3V ~ 3.6V | 33mA | 36mA | Surface Mount | - |
|
ZM5304AU-CME3RF TXRX MOD ISM<1GHZ SMD |
0 |
|
Datasheet |
Z-Wave® | Module | Tray | Obsolete | Not Verified | General ISM < 1GHz | Z-Wave® | - | 908MHz | 100Kbps | 4dBm | -103dBm | SPI, UART, USB | - | SD3503 | - | 2.3V ~ 3.6V | 33mA | 36mA | Surface Mount | - |
|
WIZFI250-HRF TXRX MOD WIFI TH+ U.FL SMD |
0 |
|
Datasheet |
- | 73-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b/g/n | 16QAM, 64QAM, BPSK, CCK, DSSS, OFDM, QPSK | 2.4GHz | 65Mbps | 16.5dBm | -96dBm | SPI, UART | Integrated, Trace + U.FL | - | 1MB Flash, 128kB SRAM | 3V ~ 3.6V | 120mA | 385mA | Surface Mount | -20°C ~ 85°C |
|
WIZFI250-PARF TXRX MOD WIFI PCB TRACE SMD |
0 |
|
Datasheet |
- | 73-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | - | 16.5dBm | -97dBm | SPI, UART | PCB Trace | - | 1MB Flash, 128kB SRAM | - | 120mA | 265mA ~ 430mA | Surface Mount | -20°C ~ 85°C |
|
WIZFI310-CONRF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet |
- | 35-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DSSS, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 150Mbps | 16dBm | -78dBm | UART | Integrated, Trace | - | - | 3.3V | 62mA | 162mA | Surface Mount | -20°C ~ 85°C |
|

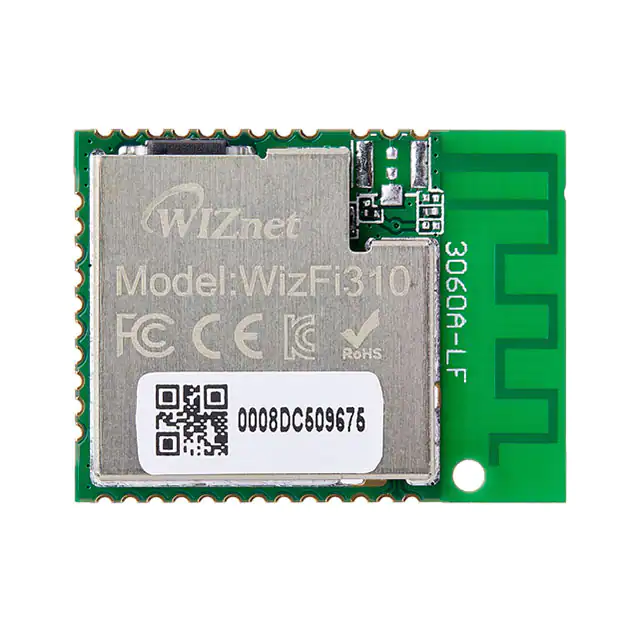

WIZFI310-PARF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet |
- | 35-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DSSS, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 150Mbps | 16dBm | -78dBm | UART | Integrated, Trace | - | - | 3.3V | 62mA | 162mA | Surface Mount | -20°C ~ 85°C |
|
|
WIZFI210-CARF TXRX MOD WIFI CHIP + U.FL SMD |
0 |
|
Datasheet |
- | 49-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b | CCK, DSSS | 2.4GHz ~ 2.497GHz | 11Mbps | 8dBm | -94dBm | SPI, UART | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 125mA | 125mA | Surface Mount | -40°C ~ 85°C |
|
WIZFI210-CONRF TXRX MOD WIFI CHIP + U.FL SMD |
0 |
|
Datasheet |
- | 49-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b | CCK, DSSS | 2.4GHz ~ 2.497GHz | 11Mbps | 8dBm | -94dBm | SPI, UART | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 125mA | 125mA | Surface Mount | -40°C ~ 85°C |
|
|
WIZFI210-EXRF TXRX MOD WIFI CHIP + U.FL SMD |
0 |
|
Datasheet |
- | 49-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b | CCK, DSSS | 2.4GHz ~ 2.497GHz | 11Mbps | 8dBm | -94dBm | SPI, UART | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 125mA | 125mA | Surface Mount | -40°C ~ 85°C |
|
|
WIZFI220-CONRF TXRX MOD WIFI CHIP + U.FL SMD |
0 |
|
Datasheet |
- | 49-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b | CCK, DSSS | 2.4GHz ~ 2.497GHz | 11Mbps | 17dBm | -94dBm | SPI, UART | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 135mA | 250mA | Surface Mount | -40°C ~ 85°C |
|
|
WIZFI220-EXRF TXRX MOD WIFI CHIP + U.FL SMD |
0 |
|
Datasheet |
- | 49-SMD Module | Box | Obsolete | Not Verified | WiFi | 802.11b | CCK, DSSS | 2.4GHz ~ 2.497GHz | 11Mbps | 17dBm | -94dBm | SPI, UART | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 135mA | 250mA | Surface Mount | -40°C ~ 85°C |
|
|
DNT2400SRF TXRX MODULE FHSS SPREAD SPECT |
0 |
|
- |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WSG-DN242-00S-001RF TXRX MOD |
0 |
|
- |
* | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WSM-BL241-ADP-004SRF TXRX MOD |
0 |
|
- |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

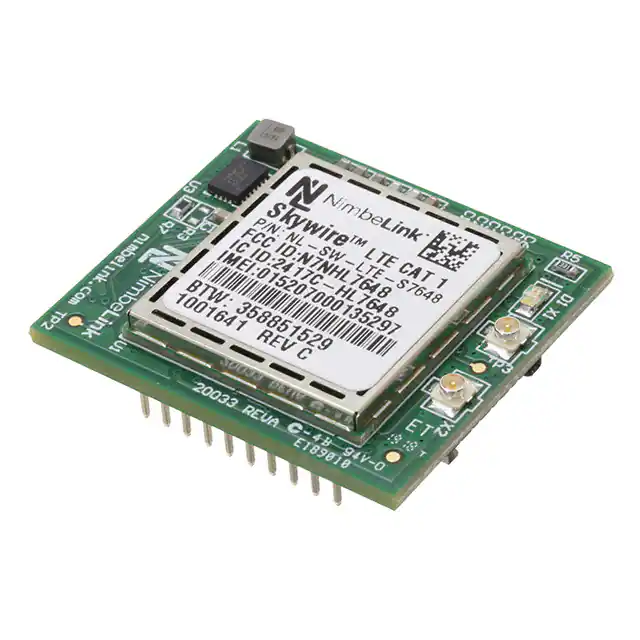

NL-SW-LTE-S7648RF TXRX MOD CELL U.FL TH |
0 |
|
Datasheet |
Skywire® LTE CAT 1 | 20-DIP Module | Tray | Obsolete | Not Verified | Cellular | 4G LTE CAT-1 (AT&T/T-Mobile) | - | 700MHz, 1.7GHz, 2.1GHz | 10Mbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3V ~ 5.5V | - | - | Through Hole | -40°C ~ 85°C |
|

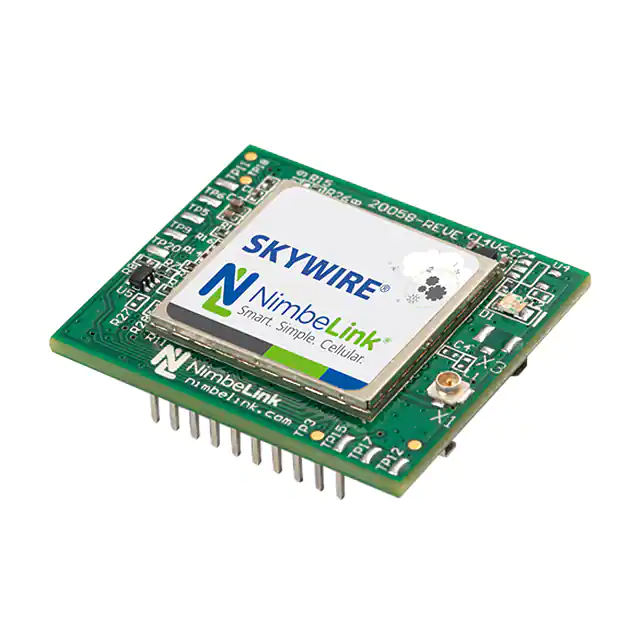

NL-SW-LTE-SVZM20-BRF TXRX MOD CELL U.FL TH |
0 |
|
Datasheet |
Skywire® LTE CAT M1 | 20-DIP Module | Tube | Obsolete | Not Verified | Cellular | 4G LTE CAT-M1 (Verizon) | - | 700MHz, 1.7GHz | 300kbps | - | - | UART, USB | Antenna Not Included, U.FL | - | - | 3.1V ~ 4.5V | - | - | Through Hole | -40°C ~ 85°C |
