RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BT850-ST-T/RRF TXRX MOD BT CAST SMD |
0 |
|
Datasheet |
BT85x | 28-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.402GHz ~ 2.48GHz | 3Mbps | 8dBm | -94dBm | I2S, PCM, USB | Antenna Not Included, Castellation | - | - | 3V ~ 3.6V | - | 55mA | Surface Mount | -30°C ~ 85°C |
|
317990024RF TXRX MOD WHIP TILT TH |
0 |
|
Datasheet |
- | Module | Bulk | Obsolete | Not Verified | - | - | - | 2.4GHz | - | - | - | - | Whip, Tilt | nRF24L01 | - | 3V ~ 3.6V | 115mA | 115mA | Through Hole | - |
|
317990025RF TXRX MODULE THROUGH HOLE |
0 |
|
Datasheet |
- | Module | Bulk | Obsolete | Not Verified | - | - | - | 2.4GHz ~ 2.5GHz | - | - | - | - | - | nRF24L01 | - | 3V ~ 3.6V | 115mA | 115mA | Through Hole | - |
|
317030002RF TXRX MOD BT TH SMD |
0 |
|
- |
- | 34-SMD Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v2.0 | - | 2.4GHz | 2.1Mbps | 4dBm | -84dBm | UART, USB | Integrated, Trace | BlueCore4 | - | 3.3V | - | - | Surface Mount | -25°C ~ 75°C |
|
CYBT-263065-02RF TXRX MOD BT ISM>1GHZU.FL SMD |
0 |
|
Datasheet |
EZ-BT™ | 35-SMD Module | Tape & Reel (TR) | Active | - | Bluetooth, General ISM > 1GHz | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 15dBm | -95dBm | I2C, SPI, UART | Antenna Not Included, U.FL | CYW20819 | 256kB Flash, 176kB RAM | 1.71V ~ 3.3V | 5.9mA | 5.8mA | Surface Mount | -30°C ~ 85°C |
|
|
FC31RDAMDRF TXRX MOD BLUETOOTH WIFI SMD |
0 |
|
- |
- | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - |
|
CYBLE-012011-00RF TXRX MOD BT TH SMD |
0 |
|
Datasheet |
EZ-BLE™ PRoC™ | 31-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz ~ 2.48GHz | 1Mbps | 3dBm | -87dBm | I2C, SPI, UART | Integrated, Trace | - | 128kB Flash, 16kB SRAM | 1.8V ~ 5.5V | 16.4mA | 15.6mA | Surface Mount | -40°C ~ 85°C |
|
113990416RF TXRX MOD WIFI TH+ U.FL SMD |
0 |
|
- |
- | Module | Bulk | Active | Not Verified | WiFi | 802.11b/g/n | 16QAM, 64QAM, BPSK, CCK, DSSS, OFDM, QPSK | 2.4GHz ~ 2.48GHz | 72Mbps | 13.5dBm | -96dBm | I2C, SPI, UART | Integrated, Trace + U.FL | - | 1MB Flash, 256kB SRAM | 2.3V ~ 3.6V | 28mA | 28mA | Surface Mount | -30°C ~ 85°C |
|
113990418RF TXRX MODULE WIFIIPEX SMD |
0 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 150Mbps | - | - | I2C, SPI, UART | Antenna Not Included, I-PEX | - | - | 3V ~ 3.6V | - | - | Surface Mount | -20°C ~ 85°C |
|
|
WRL-17830RF TXRX MOD BT WIFI PCB TH SMD |
0 |
|
- |
- | 38-SMD Module | Bulk | Active | - | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.2 + EDR, Class 2 | 4-DQPSK, 8-DPSK | 2.4GHz | 150Mbps | 19.5dBm | -97dBm | Ethernet, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART | PCB Trace | ESP32-D0WDQ6 | 4MB Flash | 3V ~ 3.6V | 112mA ~ 118mA | 165mA ~ 239mA | Surface Mount | -40°C ~ 85°C |
|
113990417RF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet |
- | Module | Bulk | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DSSS, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz ~ 2.471GHz | 72Mbps | 16dBm | -87dBm | I2C, I2S, SPI, UART | Integrated, Trace | - | 1MB Flash, 256kB SRAM | 2.3V ~ 3.6V | 78mA | 92mA | Surface Mount | -30°C ~ 85°C |
|
BGM121N256V1RRF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet |
- | 56-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v4.2 | GFSK | 2.4GHz | 1Mbps | 8dBm | -90dBm | I2C, I2S, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB RAM | 1.85V ~ 3.8V | 9mA | 8.2mA | Surface Mount | -40°C ~ 85°C |
|
ANNA-B112-00BRF TXRX MODULE BLUETOOTH SMD |
0 |
|
Datasheet |
ANNA-B112 | 52-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 4dBm | -96dBm | ADC, GPIO, I2C, I2S, PDM, SPI, UART | - | nRF52832 | 512kB Flash, 64kB RAM | 1.7V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

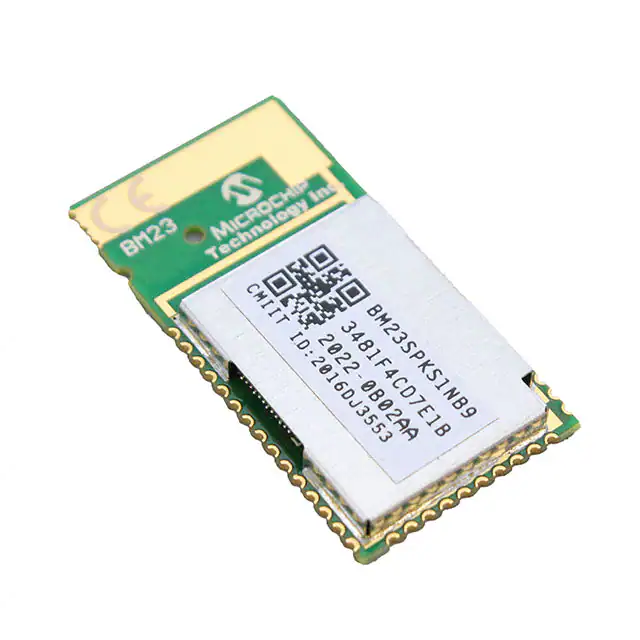

BM23SPKS1NB9-0B02AARF TXRX MOD BT TH SMD |
0 |
|
Datasheet |
BM23 | 43-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | 8DPSK, DQPSK, GFSK | 2.4GHz | - | 4dBm | -91dBm | I2C, UART | Integrated, Trace | - | - | 3V ~ 4.2V | - | - | Surface Mount | -20°C ~ 70°C |
|
|
453-00172CRF TXRX MOD BTMHF4 CHAS MNT |
0 |
|
Datasheet |
Lyra 24 | Module | Strip | Active | - | Bluetooth | Bluetooth v5.0 + EDR | GFSK | 2.4GHz | 2Mbps | 10dBm | -93.5dBm | ADC, GPIO, I2C, PWM, SPI, UART | Antenna Not Included, MHF4 | CYW20820 | 256kB Flash, 1MB ROM, 176kB RAM | 2.6V ~ 3.3V | 6.28mA ~ 6.87mA | 13.95mA ~ 20.1mA | Chassis Mount | -40°C ~ 85°C |
|
|
MGM210L022JNF2RF TXRX MOD 802.15.4 BT TH SMD |
0 |
|
Datasheet |
Mighty Gecko | 18-SMD Module | Strip | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.1, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 12.5dBm | -104.4dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | PCB Trace | EFR32MG21 | 1MB Flash, 96kB RAM | 1.8V ~ 3.8V | 9.1mA ~ 9.9mA | 70mA | Surface Mount | -40°C ~ 105°C (TA) |
|
|
WGM160PX22KGA4RRF TXRX MODULE WIFI CHIP SMD |
0 |
|
Datasheet |
Wi-Fi® | 55-SMD Module | Tape & Reel (TR) | Active | - | WiFi | 802.11b/g/n | - | 2.4GHz | 72.2Mbps | 16dBm | -95.5dBm | Ethernet, I2C, SPI, UART, USART, USB | Integrated, Chip | - | 2MB Flash, 512kB RAM | 3V ~ 3.6V | 34.5mA ~ 38.5mA | 131.4mA ~ 141.3mA | Surface Mount | -40°C ~ 85°C (TA) |
|
NINA-W131-00BRF TXRX MOD WIFICASTELLATION SMD |
0 |
|
Datasheet |
NINA-W1 | 36-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 54Mbps | 16dBm | -96dBm | SPI, UART | Antenna Not Included, Castellation | - | 16Mb Flash, 448kB ROM, 520kB SRAM | 3.3V | 120mA ~ 140mA | 225mA ~ 320mA | Surface Mount | -40°C ~ 85°C |
|
|
NINA-W131-01BRF TXRX MOD WIFICASTELLATION SMD |
0 |
|
Datasheet |
NINA-W13 | 36-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | WiFi | 802.11b/g/n | CCK, DSSS, OFDM | 2.4GHz ~ 2.5GHz | 72Mbps | 19dBm | -96dBm | SPI, UART | Antenna Not Included, Castellation | - | 16MB Flash | 3V ~ 3.6V | 350mA | 350mA | Surface Mount | -40°C ~ 85°C |
|
|
BM78SPP05MC2-0B06AARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet |
- | 33-SMD Module | Tray | Active | - | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | 115.2kBaud | 1.5dBm | -92dBm | I2C, UART | Integrated, Chip | BM78SPPS5MC2/NC2 | 4MB Flash, 320kB ROM, 28kB SRAM | 3.3V ~ 4.2V | 37mA (Max) | 43mA (Max) | Surface Mount | -20°C ~ 70°C |
