RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BGSX22G2A10E6327XTSA1IC RF SWITCH DPDT 6GHZ ATSLP10-2 |
0 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | General Purpose | - | DPDT | 100MHz ~ 6GHz | - | - | - | - | - | - | 50Ohm | 2.3V ~ 3.4V | - | - | - | Surface Mount | PG-ATSLP-10-2 |
|
ADG919BCP-500RL7IC SW SPDT 2:1 REFL MUX 8LFCSP |
7,000 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Bulk | Obsolete | General Purpose | Reflective | SPDT | - | - | - | - | 17dBm (typ) P1dB | 36dBm (typ) | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
|

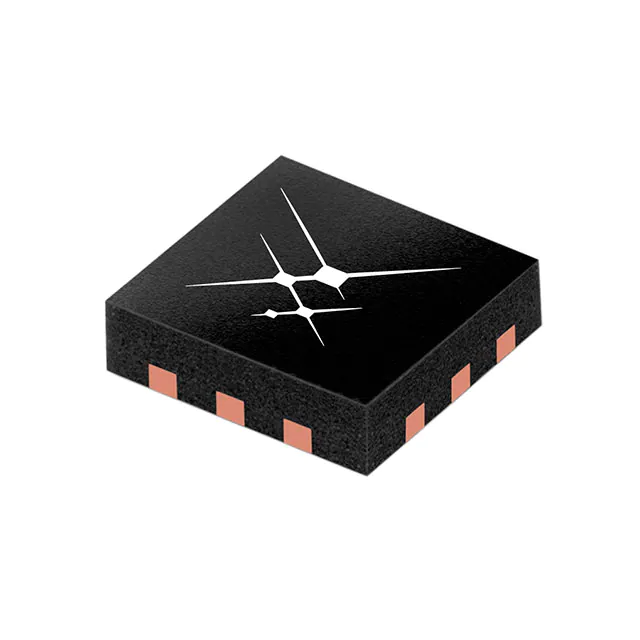

SKY13548-385LFIC RF SWITCH SPDT 1.8GHZ 6QFN |
3,244 |
|
Datasheet |
- | 6-XFQFN | Tape & Reel (TR) | Obsolete | - | - | SPDT | 5MHz ~ 1.8GHz | 25dB | 0.4dB | 900MHz | - | - | - | 75Ohm | - | - | - | - | Surface Mount | 6-QFN (1x1) |
|
SKY13521-001IC RF SWITCH SP4T GPIO |
140,000 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSW7221IC RF SWITCH SPDT 8GHZ 6UDFN |
5,799 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | 5G NR, Cellular, LTE, PCS, WCDMA, WIMAX | Reflective | SPDT | 5MHz ~ 8GHz | 29dB | 0.64dB | 6GHz | 35dBm | 64dBm | - | 50Ohm | 2.7V ~ 3.6V | -40°C ~ 105°C | - | - | Surface Mount | 6-UDFN (1.5x1.5) |
|

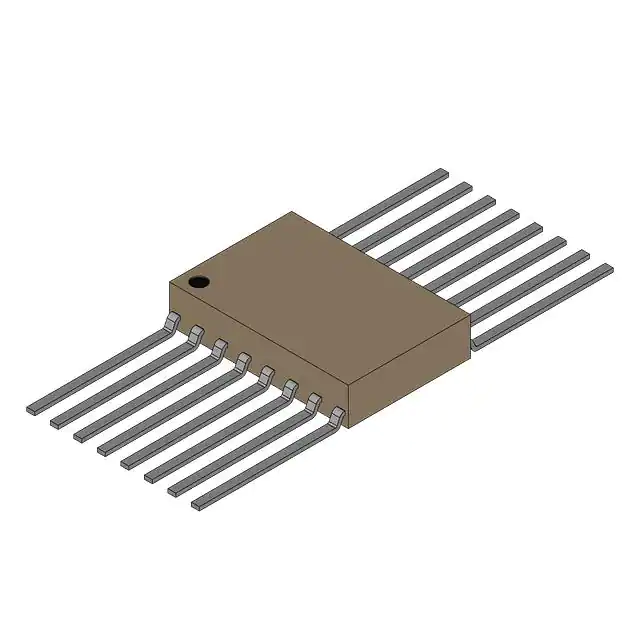

UPD5716GR-E1-AIC RF SWITCH 2.15GHZ 16HTSSOP |
6,000 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Bulk | Obsolete | General Purpose | Absorptive | - | 250MHz ~ 2.15GHz | 29dB | 6.7dB | 2.15GHz | - | - | - | 50Ohm | 4V ~ 5.5V | -40°C ~ 85°C | - | - | - | 16-HTSSOP |
|
UPG2417T6M-E2-AIC RF SW SP6T 13.56MHZ 12TSQFN |
3,000 |
|
Datasheet |
- | 12-XFQFN Exposed Pad | Bulk | Obsolete | NFC, FeliCa | Reflective | SP6T | - | - | - | - | - | - | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 12-TSQFN (2x2) |
|
|
ADG902BCPZ-REEL7IC RF SWITCH SPST 2.5GHZ 8LFCSP |
0 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPST | 0Hz ~ 2.5GHz | 40dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
|
|
UPG2164T5N-E2-AIC RF SWITCH DPDT 6GHZ 6TSON |
6,000 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Active | 802.11a/b/g/WiFi, WLAN | Reflective | DPDT | 2.4GHz ~ 6GHz | 17dB | 0.7dB | 6GHz | 31dBm | 50dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|
UPG2160T5K-E2-AIC RF SWITCH SPDT 3GHZ 6TSSON |
10,000 |
|
Datasheet |
- | 6-PowerXDFN | Bulk | Obsolete | L, S Band | Reflective | SPDT | 500MHz ~ 3GHz | 13dB | 0.5dB | 3GHz | - | - | - | 50Ohm | 2.4V ~ 2.8V | -45°C ~ 85°C | - | - | - | 6-TSSON |
|
|
ADG902BCP-REEL7IC SWITCH SPST 1.65-2.75V 8LFCSP |
27,000 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Bulk | Obsolete | General Purpose | Reflective | SPST | - | - | - | - | 17dBm (typ) P1dB | 36dBm (typ) | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
|
|
ADG901BCP-REEL7IC SWITCH SPST 1.65-2.75V 8LFCSP |
9,000 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Bulk | Obsolete | General Purpose | Absorptive | SPST | - | - | - | - | 17dBm (typ) P1dB | 36dBm (typ) | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
|
|
UPG2162T5N-E2-AIC RF SWITCH DPDT 6GHZ 6TSON |
21,000 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | 802.11a/b/g/WiFi, WLAN | Reflective | DPDT | 2.4GHz ~ 6GHz | 27dB | 0.85dB | 6GHz | 31dBm | 50dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|
|
ADG919BCP-REEL7IC SW SPDT 2:1 REFL MUX 8LFCSP |
15,000 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Bulk | Obsolete | General Purpose | Reflective | SPDT | - | - | - | - | 17dBm (typ) P1dB | 36dBm (typ) | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
|
BGSX24MU16E6327XUSA1IC RF SWITCH DP4T 5GHZ ULGA16-1 |
4,427 |
|
Datasheet |
- | 16-UFLGA Exposed Pad | Tape & Reel (TR) | Obsolete | GSM, LTE, W-CDMA | - | DP4T | 100MHz ~ 5GHz | 34dB | 1dB | 5GHz | - | 77dBm | - | 50Ohm | 1.65V ~ 3.4V | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-ULGA-16-1 |
|
|
BSW7321IC RF SWITCH SPDT 8GHZ 6UDFN |
5,438 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | 5G NR, Cellular, LTE, PCS, WCDMA, WIMAX | Reflective | SPDT | 5MHz ~ 8GHz | 30dB | 0.97dB | 6GHz | 39dBm | 65dBm | - | 50Ohm | 2.7V ~ 3.6V | -40°C ~ 105°C | - | - | Surface Mount | 6-UDFN (1.5x1.5) |
|
|
BSW7421IC RF SWITCH SPDT 8GHZ 6UDFN |
2,637 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Cut Tape (CT) | Active | 5G NR, Cellular, LTE, PCS, WCDMA, WIMAX | Reflective | SPDT | 5MHz ~ 8GHz | 48dB | 0.91dB | 6GHz | 38dBm | 65dBm | - | 50Ohm | 2.7V ~ 3.6V | -40°C ~ 105°C | - | - | Surface Mount | 6-UDFN (1.5x1.5) |
|
BGSF18DM20E6327XUMA1IC RF SWITCH SP8T |
1 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Cellular, 3G, GSM | - | SP8T | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADG902BRM-500RL7IC RF SWITCH SPST 2.5GHZ 8MSOP |
10,500 |
|
Datasheet |
ADG902 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | General Purpose | Reflective | SPST | DC ~ 2.5GHz | 37dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
ADG918BCP-REEL7IC SWITCH SPDT 2:1 MUX 8LFCSP |
13,589 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Bulk | Obsolete | General Purpose | Absorptive | SPDT | - | - | - | - | 17dBm | 36dBm | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-LFCSP (3x3) |
