RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASW-004100-11930WIC RF SWITCH SP4T 26GHZ |
150 |
|
Datasheet |
HMIC™ | - | Tray | Active | General Purpose | Reflective | SP4T | 50MHz ~ 26GHz | 34dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | - |
|
MASW-004100-11930GIC RF SWITCH SP4T 20GHZ DIE |
150 |
|
Datasheet |
HMIC™ | Die | Tray | Active | General Purpose | Reflective | SP4T | 50MHz ~ 20GHz | 34dB | 0.9dB | 20GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
MASW-002103-13630GIC RF SWITCH SPDT 20GHZ |
750 |
|
Datasheet |
HMIC™ | - | Tray | Active | General Purpose | Reflective | SPDT | 50MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
ADRF5300BCCZN-R7IC RF SWITCH SPDT 32GHZ 20LGA |
1,163 |
|
Datasheet |
- | 20-VFLGA Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SPDT | 24GHz ~ 32GHz | 38dB | 1.1dB | 32GHz | - | 65dBm | - | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
MASW-005100-11940WIC RF SWITCH SP5T 26GHZ |
200 |
|
Datasheet |
HMIC™ | - | Tray | Active | - | - | SP5T | 50MHz ~ 26GHz | 38dB | 0.9dB | 20GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | - |
|

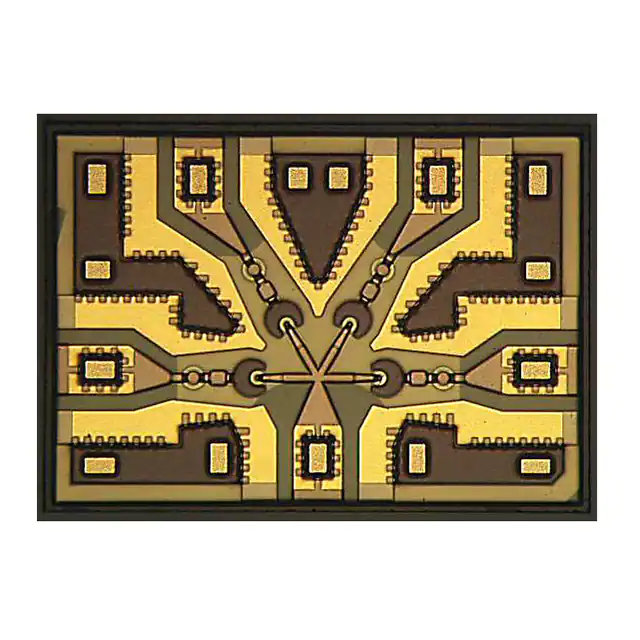

MASW-004103-13650GIC RF SWITCH SP4T 20GHZ |
200 |
|
Datasheet |
HMIC™ | - | Tray | Active | General Purpose | Reflective | SP4T | 50MHz ~ 20GHz | 32dB | 1.2dB | 20GHz | - | 64dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
HMC322ALP4EIC RF SWITCH SP8T 8GHZ 24QFN |
549 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Strip | Active | - | Absorptive | SP8T | 0Hz ~ 8GHz | 40dB | 2.5dB | 6GHz, 8GHz | 26dBm | 40dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
MASW-011030-14040TIC RF SWITCH SP3T 3GHZ 16HQFN |
883 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Reflective | SP3T | 30MHz ~ 3GHz | 40dB | 0.5dB | 2GHz | - | 62dBm | - | - | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-HQFN (3x3) |
|
HMC1084LC4IC RF SWITCH SP4T 30GHZ 24QFN |
361 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Strip | Active | General Purpose | Reflective | SP4T | 23GHz ~ 30GHz | 26dB | 3.3dB | 30GHz | - | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC1084LC4TRIC RF SWITCH SP4T 30GHZ 24QFN |
107 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Reflective | SP4T | 23GHz ~ 30GHz | 26dB | 3.5dB | 30GHz | - | 47dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
MASW-011173-DIEIC RF SWITCH SP2T 55GHZ DIE |
200 |
|
Datasheet |
- | Die | Case | Active | Radar | Reflective | SP2T | 20GHz ~ 55GHz | 28dB | 1.5dB | 55GHz | - | 48dBm | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
|
MASW-011148-TR0500IC RF SWITCH SPDT 44GHZ 22QFN |
381 |
|
Datasheet |
- | 22-UFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Absorptive | SPDT | 20GHz ~ 44GHz | 38dB | 1.3dB | 41GHz | - | - | Single/Dual Line Control | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 22-PQFN (3x4) |
|
|
ADGM1001BCCZIC RF SWITCH SPDT 34GHZ 24LGA |
0 |
|
Datasheet |
ADGM1001 | 24-VFLGA Exposed Pad | Tray | Active | General Purpose | - | SPDT | DC ~ 34GHz | 19dB | 1.5dB | 34GHz | - | 76dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 24-LGA (5x4) |
|

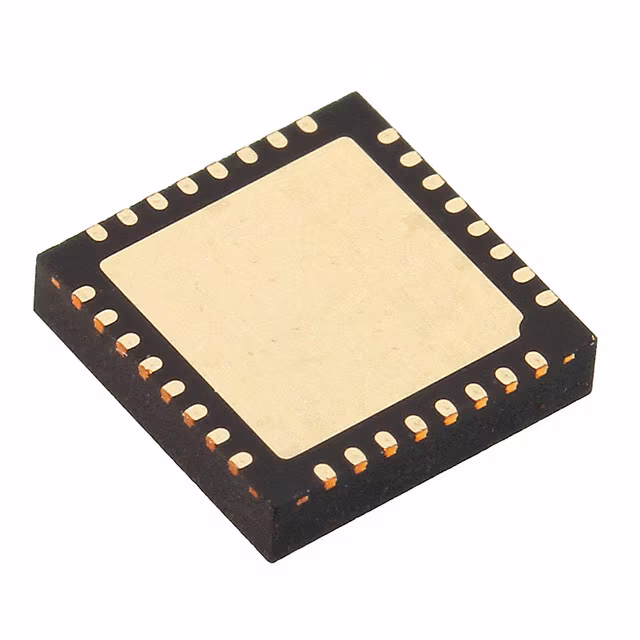

MASL-011023IC RF SWITCH SPDT 3.5GHZ 32HQFN |
37 |
|
Datasheet |
- | 32-LQFN Exposed Pad | Bulk | Active | General Purpose | Reflective | SPDT | 2.7GHz ~ 3.5GHz | 30dB | 0.85dB | 3.5GHz | - | - | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | 32-HQFN (7x7) |
|
ADRF5024SCCZ-EPIC RF SWITCH SPDT 44GHZ 12LGA |
576 |
|
Datasheet |
- | 12-VFLGA | Strip | Active | Cellular, Radar, VSAT | Reflective | SPDT | 100MHz ~ 44GHz | 35dB | 2.1dB | 44GHz | 27.5dBm | 50dBm | - | 50Ohm | 3.15V ~ 3.45V | -55°C ~ 105°C | - | - | Surface Mount | 12-LGA (2.25x2.25) |
|
BGSA144ML10E6327XTSA1IC RF SWITCH SP4T ANT TSLP10-3 |
7,498 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | SP4T | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TSLP-10-3 |
|
|
BGSA149MN10E6327XTSA1IC RF SWITCH ANTENNA DEVICE |
11,949 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | SP4T | 380MHz ~ 7.125GHz | - | - | - | - | - | - | 1.5Ohm | 1.2V ~ 1.8V | - | - | - | Surface Mount | PG-TSNP-10-9 |
|
BGSA403ML10E6327XTSA1IC RF SW 4XSPST 7.125GHZ TSLP10 |
4,750 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | 4 x SPST | 400MHz ~ 7.125GHz | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TSLP-10-3 |
|
BGSA400ML10E6327XTSA1IC RF SW 4XSPST 7.125GHZ TSLP10 |
7,500 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | 4 x SPST | 400MHz ~ 7.125GHz | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TSLP-10-3 |
|

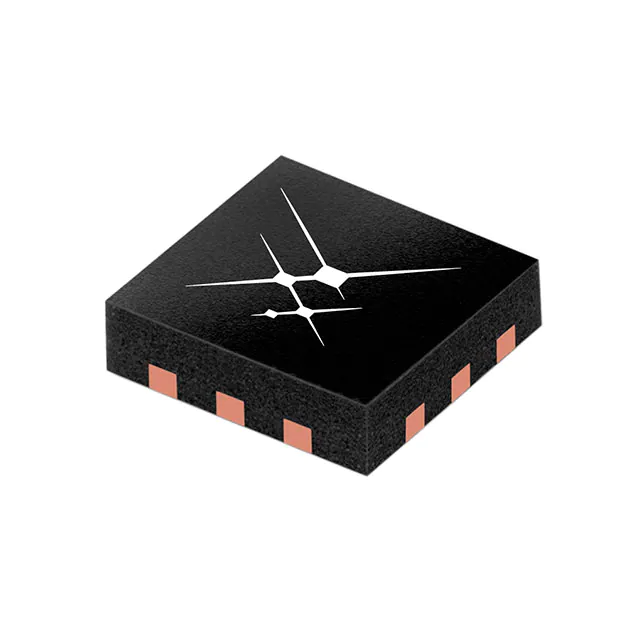

SKY13547-490LFIC RF SWITCH SPDT 1.8GHZ 12QFN |
9,573 |
|
Datasheet |
- | 12-UFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Reflective | SPDT | 5MHz ~ 1.8GHz | - | 0.3dB | 1GHz | 38dBm | - | - | 75Ohm | 2.5V ~ 4.8V | - | - | - | Surface Mount | 12-QFN (2x2) |
