RF Shields
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMS-203FRF SHIELD 1.058" X 1.058" SMD |
874 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.058" (26.87mm) | 1.058" (26.87mm) | - | Surface Mount |
|
9100-0004-94EMI VENT PANEL - 5" X 5" |
20 |
|
Datasheet |
- | Bulk | Active | Shield, 1-Piece | 0.725" (18.42mm) | 5.000" (127.00mm) | 5.000" (127.00mm) | Vent Holes in Pattern | - |
|

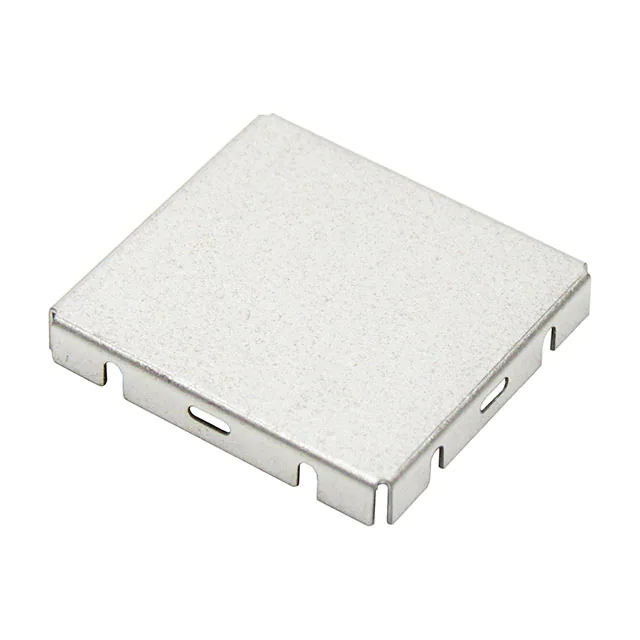

SMS-401CRF SHIELD 0.522" X 0.56" SMD |
748 |
|
Datasheet |
- | Bulk | Active | Cover | 0.079" (2.01mm) | 0.560" (14.22mm) | 0.522" (13.26mm) | Non-Vented | Surface Mount |
|
3610213126SWE-SHC SHIELDING CABINET FRAME |
1,391 |
|
Datasheet |
WE-SHC | Tape & Reel (TR) | Active | Frame | 0.100" (2.54mm) | 0.522" (13.26mm) | - | - | Surface Mount |
|
|
3600213120SRF SHIELD 0.556" SNAP FIT |
709 |
|
Datasheet |
WE-SHC | Tape & Reel (TR) | Active | Cover | 0.079" (2.00mm) | 0.556" (14.12mm) | - | Vent Holes in Pattern | Snap Fit |
|
|
36003300SRF SHIELD 1.215" SNAP FIT |
83 |
|
Datasheet |
WE-SHC | Tape & Reel (TR) | Active | Cover | 0.079" (2.00mm) | 1.215" (30.86mm) | - | Non-Vented | Snap Fit |
|
|
MS300-10FRF SHIELD 0.961"X1.181" SOLDER |
31 |
|
Datasheet |
Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.138" (3.50mm) | 1.181" (30.00mm) | 0.961" (24.40mm) | - | Solder |
|
|
36106326SRF SHIELD 1.244" SNAP FIT |
95 |
|
Datasheet |
WE-SHC | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.244" (31.60mm) | - | - | Snap Fit |
|
|
3671148WE-SHC TWO-PIECE SEAMLESS SHIELD |
34 |
|
Datasheet |
WE-SHC | Tray | Active | Cover | 0.079" (2.00mm) | 0.598" (15.20mm) | 0.366" (9.30mm) | Non-Vented | Surface Mount |
|
|
360002SHIELDIY DO IT YOURSELF CUSTOM S |
11 |
|
Datasheet |
WE-SHC | Bulk | Active | - | 0.008" (0.20mm) | 8.125" (206.40mm) | 5.831" (148.10mm) | - | - |
|
|
54-CBSA-1.0X1.5X0.5RF SHIELD 1" X 1.5" THROUGH HOLE |
9 |
|
Datasheet |
- | Bulk | Active | Shield, 2-Piece | 0.500" (12.70mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | Non-Vented | Through Hole |
|
|
KEMVENT80EMI FAN VENT 80MM |
35 |
|
Datasheet |
- | Bag | Active | Shield, 1-Piece | 0.407" (10.35mm) | 3.327" (84.50mm) | 3.327" (84.50mm) | Vent Holes in Pattern | Surface Mount |
|
|
KEMVENT92EMI FAN VENT 92MM |
30 |
|
Datasheet |
- | Bag | Active | Shield, 1-Piece | 0.407" (10.35mm) | 3.819" (97.00mm) | 3.819" (97.00mm) | Vent Holes in Pattern | Surface Mount |
|
|
KEMVENT120EMI FAN VENT 120MM |
38 |
|
Datasheet |
- | Bag | Active | Shield, 1-Piece | 0.407" (10.35mm) | 4.921" (125.00mm) | 4.921" (125.00mm) | Vent Holes in Pattern | Surface Mount |
|
|
9100-0001-94EMI VENT PANEL - 3" X 3" |
16 |
|
Datasheet |
- | Bulk | Active | Shield, 1-Piece | 0.725" (18.42mm) | 3.000" (76.20mm) | 3.000" (76.20mm) | Vent Holes in Pattern | - |
|
|
MS215-10SRF SHIELD 0.756"X0.846" SOLDER |
287 |
|
Datasheet |
Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.150" (3.80mm) | 0.846" (21.50mm) | 0.756" (19.20mm) | Non-Vented | Solder |
|
|
MS148-10FRF SHIELD 0.350"X0.583" SOLDER |
117 |
|
Datasheet |
Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.079" (2.00mm) | 0.583" (14.80mm) | 0.350" (8.90mm) | - | Solder |
|
|
3600536330SRF SHIELD 1.468" SNAP FIT |
42 |
|
Datasheet |
WE-SHC | Tray | Active | Cover | 0.079" (2.00mm) | 1.468" (37.29mm) | - | Vent Holes in Pattern | Snap Fit |
|
|
MS385-10FRF SHIELD 0.768"X1.516" SOLDER |
88 |
|
Datasheet |
Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.150" (3.80mm) | 1.516" (38.50mm) | 0.768" (19.50mm) | Non-Vented | Solder |
|
|
36503255SRF SHIELD 0.984" THROUGH HOLE |
27 |
|
Datasheet |
WE-SHC | Tray | Active | Frame | 0.118" (3.00mm) | 0.984" (25.00mm) | - | - | Through Hole |
