RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D6DA2G655K2F1-ZLTE BAND 7, SAW FILTER, 1.8X1.4X |
2,875 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 2.5GHz ~ 2.57GHz / 2.62GHz ~ 2.69GHz | 58.00dB | 60.00dB / 90.00dB | - | - | - | Surface Mount |
|
D5PF942M5M3G9-ZRF DUPLEXER 9SMD NO LEAD |
3,194 |
|
Datasheet |
D5 | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
D5PE942M5P3GT-ZRF DUPLEXER 9SMD NO LEAD |
3,000 |
|
Datasheet |
D5 | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
D6DA1G960K2B2-ZRF DUPLEXER 1GHZ-5GHZ 8SMD |
1,198 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz ~ 5GHz | 55.00dB / - | - / 55.00dB | - | - | - | Surface Mount |
|
|
D6RB1G960E1HB-ZRF DUPLEXER 1.875GHZ/1.96GHZ |
395 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Duplexer | 1.85GHz ~ 1.9GHz / 1.93GHz ~ 1.99GHz | - | 47.00dB / 52.00dB | - | - | - | Surface Mount |
|
B39781B8005P810RF DUPLEXER 751MHZ/782MHZ 9SMD |
1,989 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 746MHz ~ 756MHz / 777MHz ~ 787MHz | 54.00dB / 58.00dB | 50.00dB / 57.00dB | - | - | - | Surface Mount |
|
D6HQ2G655DP03-ZRF FBAR DUPLEXER LTE BAND 7 |
6,000 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz / 5GHz | - / 61.00dB | - / 56.00dB | - | - | - | Surface Mount |
|

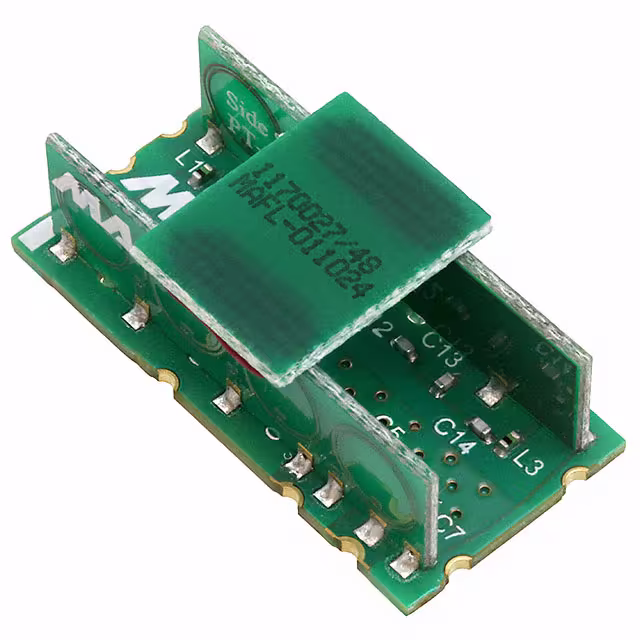

MAFL-011024RF DIPLEXER 45MHZ/555MHZ 11SMD |
117 |
|
Datasheet |
- | 11-SMD Module | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 85MHz / 108MHz ~ 1.002GHz | - | - | 16.0dB / 16.0dB | - | - | Surface Mount |
|
DXP.01.ARF DIPLEXER 1.222/1.575GHZ 8SMD |
400 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 1.196GHz ~ 1.248GHz / 1.574GHz ~ 1.576GHz | - | 25.00dB / 30.00dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|
MAFL-011077RF DIPLEXER 85/102MHZ SMD |
998 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 85MHz / 102MHz ~ 1.218GHz | - | - | 24.0dB / 24.0dB | - | - | Surface Mount |
|
MAFL-011078RF DIPLEXER 42/54MHZ SMD |
788 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1.218GHz | - | - | 24.0dB / 24.0dB | - | - | Surface Mount |
|
|
DPX1608LKF8R2455ADIPLEXER 2.4/5GHZ F8 |
8,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 27.00dB / 38.00dB | 27.00dB / 35.90dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
DPX1608LKU5R2455ADIPLEXER 2.4/5GHZ U5 |
4,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz | 25.00dB / 41.50dB | 30.00dB / 45.00dB | 13.0dB / 13.0dB | - | - | Surface Mount |
|
|
LFD182G45PJ4F520RF-D |
3,750 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 7.125GHz | 25.00dB / 32.00dB | 19.50dB / 25.00dB | 12.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1005LKGBRWH60LDIPLEXER 0.7-2.7GHZ / 5-7GHZ GB |
19,950 |
|
Datasheet |
1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Diplexer | 1.164GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 2.496GHz ~ 2.69GHz / 5.15GHz ~ 5.95GHz, 5.95GHz ~ 6.245GHz, 6.245GHz ~ 7.125GHz | 20.00dB / 25.10dB | 32.00dB / 37.60dB | 12.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKE8R2455ADIPLEXER 2.4/5GHZ E8 |
8,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 27.00dB / 36.50dB | 27.00dB / 41.90dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
DPX1608LKEUR2455LDIPLEXER 1608 2.4/5GHZ EU |
8,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 32.00dB / 39.70dB | 32.00dB / 39.30dB | 15.0dB / 12.0dB | - | - | Surface Mount |
|
|
DPX1608LKEGR2455ADIPLEXER 1608 2.4/5GHZ EG |
8,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.875GHz | 30.00dB / 38.70dB | 40.00dB / 42.40dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKEFR2455LDIPLEXER 2.4/5GHZ EF |
8,000 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.875GHz | 30.00dB / 34.90dB | 40.00dB / 44.10dB | 13.0dB / 13.0dB | - | - | Surface Mount |
|
|
DPX1608LKE7R2460ADIPLEXER WIFI 7 2.4G/5-7G E7 |
7,943 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.125GHz | 33.00dB / 44.10dB | 35.00dB / 60.90dB | 10.0dB / 10.0dB | - | - | Surface Mount |
