RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200000108DPF 2/6 H-6/8 N.. |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 152MHz ~ 175MHz | - | - | - | - | - | Chassis Mount |
|
200000100DPF 2/6H-4/6N |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 152MHz ~ 175MHz | - | - | - | - | - | Chassis Mount |
|
200000130DPF 2/6 L-4/6N |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 138MHz ~ 156MHz | - | - | - | - | - | Chassis Mount |
|
200000113DPF 2/6 H-8/10N |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 152MHz ~ 175MHz | - | - | - | - | - | Chassis Mount |
|

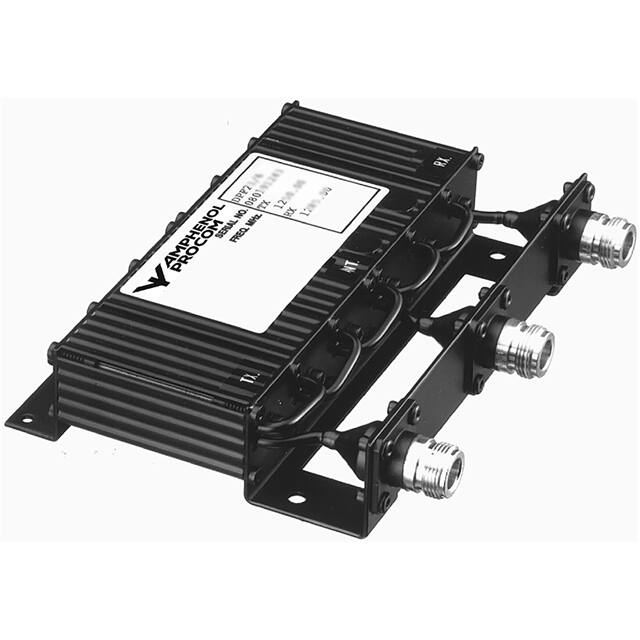

200000049DPF 23/6 N |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 1.24MHz ~ 1.3MHz | - | - | - | - | - | Chassis Mount |
|
2501.17.0094RF DIPLEXER 80MHZ 2.17GHZ MODULE |
0 |
|
- |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 2.17GHz / 2.4GHz ~ 2.5GHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
200000249DPF 3/6-HX-150 N |
0 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 112MHz ~ 136MHz | - | - | - | - | - | Chassis Mount |
|
|
2501.17.0095RF DIPLEXER 80MHZ 2.69GHZ MODULE |
0 |
|
- |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 2.69GHz / 3.3GHz ~ 5.85GHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
|
2501.17.0092RF DIPLEXER 80MHZ 960MHZ MODULE |
0 |
|
Datasheet |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 960MHz / 1.695MHz ~ 2.7GHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
7501.17.0011RF DIPLEXER 80MHZ 2.17GHZ MODULE |
0 |
|
- |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 2.17GHz / 2.4GHz ~ 2.5GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
200002253PRO-DIPX 174/200-SMA |
0 |
|
Datasheet |
- | Module | Box | Active | Diplexer | 0Hz ~ 174MHz / 200MHz ~ 960MHz | - | - | - | - | - | Chassis Mount |
|
|
2501.17.0097RF DIPLEXER 80MHZ 2.17GHZ MODULE |
0 |
|
- |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 2.17GHz / 4.9GHz ~ 5.85GHz | - | - | 17.0dB / 15.0dB | - | - | Chassis Mount |
|
|
2501.17.0091RF DIPLEXER 80MHZ 520MHZ MODULE |
0 |
|
Datasheet |
- | Module | Bulk | Active | Diplexer | 80MHz ~ 520MHz / 694MHz ~ 2.7GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
B39931B4018Z810RF DUPLEXER 8SMD NO LEAD |
0 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Obsolete | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
B39931B4040Z810RF DIPLEXER 8SMD NO LEAD |
0 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | Surface Mount |
|
|
ACFM-7101-BLKRF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
0 |
|
- |
- | 6-SMD, No Lead | Bag | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 30.00dB / - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
ACFM-7102-BLKRF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Bag | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 50.00dB / - | 16.0dB / 17.0dB | - | - | Surface Mount |
|
|
ACFM-7102-TR1RF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 50.00dB / - | 16.0dB / 17.0dB | - | - | Surface Mount |
|
|
ACFM-7103-BLKRF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Bag | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 50.00dB / - | 17.0dB / 15.0dB | - | - | Surface Mount |
|
|
ACFM-7103-TR1RF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
0 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 50.00dB / - | 17.0dB / 15.0dB | - | - | Surface Mount |
RF Multiplexers Electronic Components
Explore RF Multiplexers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
