RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFDIP1608060L1TDIPLEXER |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
|
RFDIP1608060LCTDIPLEXER |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP1608060LATDIPLEXER |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP1608060L9TDIPLEXER |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
|
RFDIP1608060L7TDIPLEXER |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
|
RFDIP1608060L5TDIPLEXER |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
.jpg)
|
RFDIP1608060L0TRF DIPLEXER 2.45GHZ/5.4GHZ 0603 |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
RFDIP1608060L3TRF DIPLEXER 2.45GHZ/5.4GHZ 0603 |
0 |
|
Datasheet |
RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
2450DP14S5400001TIC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
DPX1608LKVHR2460LDIPLEXER WIFI 7 2.4G/5-7G VH |
0 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.3GHz, 5.925GHz ~ 6.425GHz, 6.525GHz ~ 6.875GHz, 6.875GHz ~ 7.125GHz | 20.00dB / 29.60dB | 35.00dB / 58.40dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKECR2460ADIPLEXER WIFI 7 2.4G/5-7G EC |
0 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.875GHz, 5.875GHz ~ 7.125GHz | 30.00dB / 37.30dB | 38.00dB / 42.00dB | 13.0dB / 11.0dB | - | - | Surface Mount |
|
|
RFTIP2109ATM0T63TRIPLEXER |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
DPX1608LKF4R2460ADIPLEXER WIFI 7 2.4G/5-7G F4 |
0 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.483GHz / 5.17GHz ~ 7.125GHz | - / 43.60dB | - / 45.80dB | - | - | - | Surface Mount |
|
|
DPX1608LKUAR2460LDIPLEXER WIFI 7 2.4G/5-7G UA |
0 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz, 5.95GHz ~ 7.15GHz | 45.00dB / 58.60dB | 40.00dB / 53.30dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LKFFR2460LDIPLEXER WIFI 7 2.4G/5-7G FF |
0 |
|
Datasheet |
1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 5.875GHz, 5.875GHz ~ 7.125GHz | 30.00dB / 34.00dB | 35.00dB / 42.50dB | 13.0dB / 11.0dB | - | - | Surface Mount |
|
|
2450DP14R5400001TIC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz | 40.00dB / 50.00dB | 40.00dB / 45.00dB | 9.5dB / 9.5dB | - | - | - |
|
|
2450DP14Q5400001TIC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 21.00dB / 23.00dB | 27.00dB / 30.00dB | 10.0dB / 10.0dB | - | - | - |
|
|
RFDIP2012050LBTDIPLEXER |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP2012050LCTDIPLEXER |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|

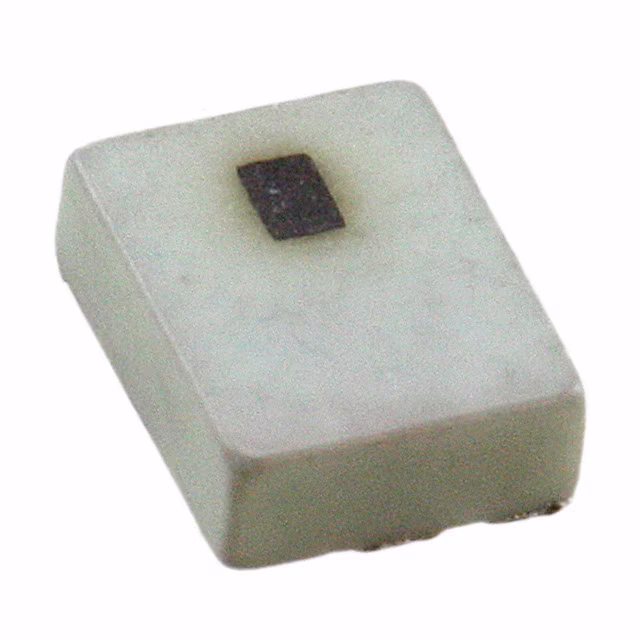

RFDIP2520080TM0T62RF DIPLEXER 1.575/2.45GHZ 1008 |
0 |
|
Datasheet |
RFDIP | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz | - | 30.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
RF Multiplexers Electronic Components
Explore RF Multiplexers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
