RF Multiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE8DP1008Diplexer 75 Ohm Type F Female, 5 |
11 |
|
Datasheet |
- | Module | Retail Package | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1GHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|
|
PE8DP1006Diplexer 75 Ohm Type F Female, 5 |
6 |
|
Datasheet |
- | Module | Retail Package | Active | Diplexer | 5MHz ~ 42MHz / 54GHz ~ 1.25GHz | - | - | 12.0dB / 12.0dB | - | - | Chassis Mount |
|
|
BK-21EDpl 80-2170/2400-2500MHz |
4 |
|
Datasheet |
- | Module | Tape & Box (TB) | Active | Diplexer | 80MHz ~ 2.17GHz / 2.4GHz ~ 2.5GHz | - | - | - | - | - | Chassis Mount |
|
|
AM2355-2130D1178-C2355 MHZ / 2130 MHZ CONNECTORIZE |
10 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.35GHz ~ 2.36GHz / 1.125GHz ~ 2.135GHz | - | - / 40.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AM763-793D1132-C758-768 MHZ / 788-798 MHZ CONNEC |
6 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 758MHz ~ 768MHz / 788MHz ~ 798MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AM710-740D1179-C704-716 MHZ / 734-746 MHZ CONNEC |
5 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 704MHz ~ 716MHz / 734MHz ~ 746MHz | - / 55.00dB | - / 55.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AM751-782D1039-C751 / 782 MHZ CONNECTORIZED CERA |
4 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 746MHz ~ 756MHz / 777MHz ~ 787MHz | - | - | - | - | - | Chassis Mount |
|
|
AM2355-2310D1176-C2355 MHZ / 2310 MHZ CONNECTORIZE |
4 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 2.35GHz ~ 2.36GHz / 2.305GHz ~ 2.315GHz | - / 40.00dB | - / 40.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

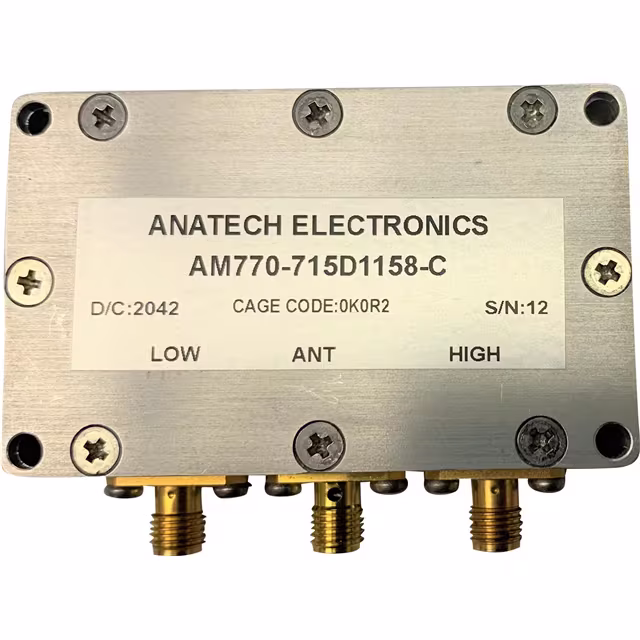

AM770-715D1158-C770.5 / 715.5 MHZ CONNECTORIZED |
2 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 703MHz ~ 728MHz / 758MHz ~ 783MHz | - | - | - | - | - | Chassis Mount |
|
|
AM806-847D1073-C806/847 MHZ CONNECTORIZED CERAMI |
3 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 791MHz ~ 821MHz / 832MHz ~ 862MHz | 35.00dB / 50.00dB | 30.00dB / 50.00dB | - | - | - | Chassis Mount |
|
|
AE680-634CD1204-C663-698 MHZ / 617-652 MHZ CONNEC |
9 |
|
Datasheet |
- | Module | Box | Active | Duplexer | 663MHz ~ 698MHz / 617MHz ~ 652MHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|

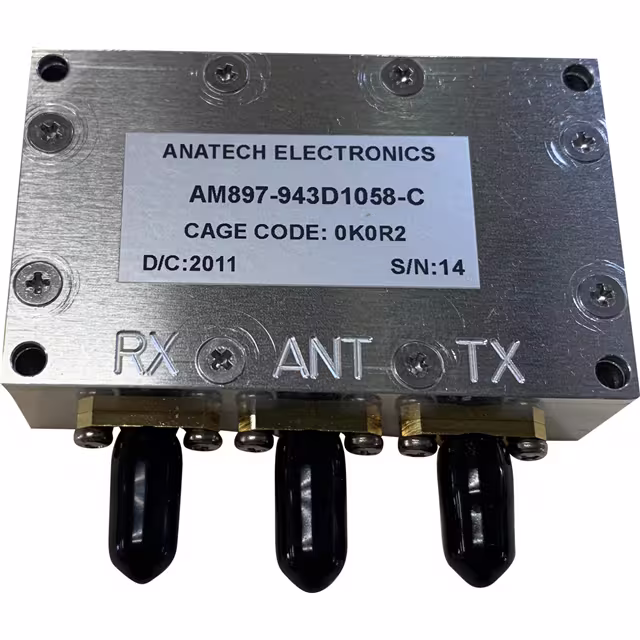

AM897-943D1058-C897-943 MHZ CONNECTORIZED CERAMI |
6 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | Duplexer | 879MHz ~ 915MHz / 925MHz ~ 961MHz | - | - | - | - | - | Chassis Mount |
|
|
BK-2005EDplx AWS1/AWS3 Low PIM 4.3-10 |
12 |
|
Datasheet |
- | Module | Tape & Box (TB) | Active | Diplexer | 1.71GHz ~ 1.735GHz / 2.16GHz ~ 2.18GHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
BK-2028EDPlx 698-803/824-2700 10W 4.3-10 |
6 |
|
Datasheet |
- | Module | Tape & Box (TB) | Active | Diplexer | 698MHz ~ 803MHz / 2.5GHz ~ 2.7GHz | - | - | - | - | - | Chassis Mount |
|
|
BK-2021NDplx 808-810/853-855 60W N IP67 |
4 |
|
Datasheet |
- | Module | Tape & Box (TB) | Active | Duplexer | 808MHz ~ 810MHz / 853MHz ~ 855MHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
MCC200-301MCC Tplx 600-700/PCS/AWS 4.3-10 |
5 |
|
Datasheet |
MCC | Module | Tape & Box (TB) | Active | Triplexer | 617MHz ~ 798MHz / 2.11GHz ~ 2.2GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-302MCC Tplx PCS/AWS/BRS 4.3-10 |
2 |
|
Datasheet |
MCC | Module | Tape & Box (TB) | Active | Triplexer | 1.695GHz ~ 1.78GHz / 2.496GHz ~ 2.7GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-403Quad 600-700/PCS/AWS/BRS 4.3-10 |
16 |
|
Datasheet |
MCC | Module | Tape & Box (TB) | Active | Quadplexer | 617MHz ~ 798MHz / 2.496GHz ~ 2.69GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-401Quad 600-700/850/PCS/AWS 4.3-10 |
8 |
|
Datasheet |
MCC | Module | Tape & Box (TB) | Active | Quadplexer | 617MHz ~ 798MHz / 2.11GHz ~ 2.2GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-501MUX 600-700/850/PCS/AWC/WCS 4310 |
10 |
|
Datasheet |
MCC | Module | Tape & Box (TB) | Active | Pentaplexer | 617MHz ~ 798MHz / 2.305GHz ~ 2.36GHz | - | - | - | - | - | Chassis Mount |
