RF Mixers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD-158-PINMIXER,DB,RF |
9 |
|
Datasheet |
- | FP-2 | Tray | Active | General Purpose | 5MHz ~ 1.5GHz | 1 | - | - | - | - | - | Surface Mount | FP-2 |
|
M2TMIXER,STANDARD |
4 |
|
Datasheet |
- | TO-8 Style, 4 Lead | Tray | Active | General Purpose | 10MHz ~ 2.4GHz | 3 | - | 7dB | Down Converter | - | - | - | TO-8 |
|
SM5T17MIXER,SURFACE MOUNT |
2 |
|
Datasheet |
- | 4-SMD Module | Tray | Active | General Purpose | 50MHz ~ 5GHz | 1 | - | 8.5dB | Down Converter | - | - | - | - |
|
PE86X1017Double Balanced Mixer Operating |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 100MHz ~ 1.2GHz | 2 | - | - | SMA Connectors | 40mA | - | Chassis Mount | - |
|
|
F1751EVBIBOARD |
3 |
|
Datasheet |
- | 20-WQFN Exposed Pad | Box | Active | General Purpose | 1.4GHz ~ 2.5GHz | 1 | 10.8dB | 10.5dB | Down Converter | 190mA | 4.75V ~ 5.25V | Surface Mount | 20-QFN (5x5) |
|
|
F1763EVBIBOARD |
3 |
|
Datasheet |
- | 20-WQFN Exposed Pad | Box | Active | General Purpose | 2GHz ~ 2.9GHz | 1 | 11dB | 10.9dB | Down Converter | 200mA | 4.75V ~ 5.25V | Surface Mount | 20-QFN (5x5) |
|

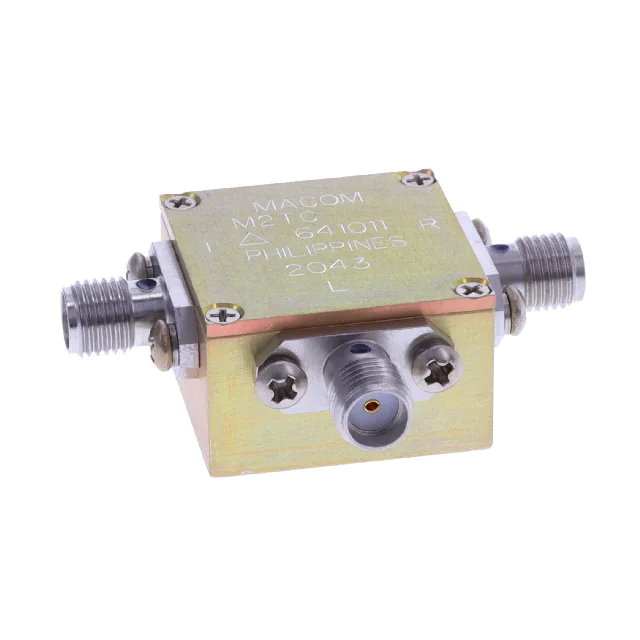

M2TCMIXER,STANDARD |
2 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | General Purpose | 10MHz ~ 2.4GHz | 3 | - | 7dB | Down Converter | - | - | - | - |
|

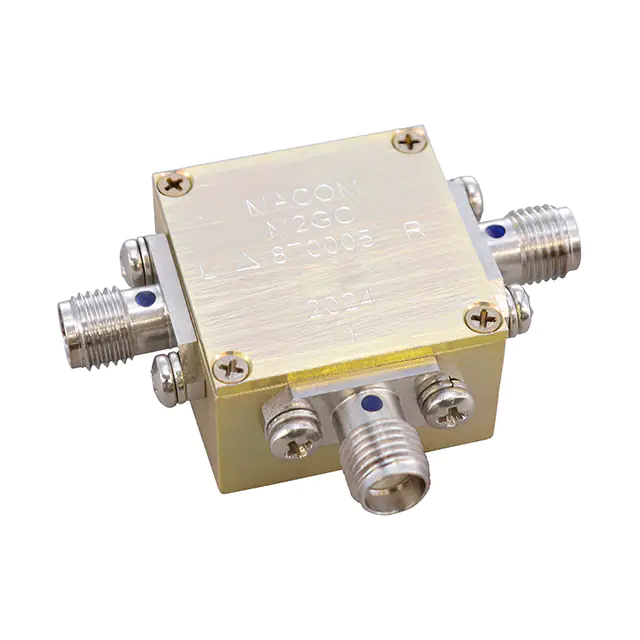

M2GCMIXER,DOUBLE BALANCED,CASCADED |
4 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | General Purpose | 1GHz ~ 2.2GHz | 2 | - | 8dB | Down Converter | - | - | - | - |
|
|
PE86X1006Double Balanced Mixer Operating |
3 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 5GHz ~ 20GHz | 2 | - | - | SMA Connectors | - | - | Chassis Mount | Module |
|
|
PE86X1020Double Balanced Mixer Operating |
5 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 1MHz ~ 2.7GHz | 2 | - | - | SMA Connectors | - | - | Chassis Mount | - |
|
M80MIXER,MICROWAVE |
10 |
|
Datasheet |
- | Module | Tray | Active | General Purpose | 6GHz ~ 18GHz | 2 | - | 7dB | Down Converter | - | - | - | - |
|
MY50AMIXER,MICROWAVE |
8 |
|
Datasheet |
- | Module | Tray | Active | General Purpose | 2GHz ~ 18GHz | 3 | - | 8dB | Down Converter | - | - | - | - |
|
M14AMIXER,DOUBLE BALANCED |
5 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | General Purpose | 6GHz ~ 14GHz | 2 | - | 7.5dB | Down Converter | - | - | - | - |
|
|
PE8650Double Balanced Mixer Operating |
20 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 2GHz ~ 8GHz | 2 | - | - | - | 100mA | - | Chassis Mount | Module |
|
|
MY50ACMIXER,MICROWAVE |
7 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | General Purpose | 2GHz ~ 18GHz | 3 | - | 8dB | Down Converter | - | - | - | - |
|
IRM0208LC2QI&Q MIXER IMAGE REJECTION MIXER |
15 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | General Purpose | 2GHz ~ 8GHz | 1 | - | 9.5dB | Up/Down Converter | - | - | Connector Mount | Module |
|
DM0052LA2HIGH ISOLATION DOUBLE BALANCED |
2 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | General Purpose | 500MHz ~ 2GHz | 2 | - | 8.5dB | Up/Down Converter | - | - | Connector Mount | Module |
|
LT5520EUF#PBF1.3GHZ TO 2.3GHZ HIGH LINEARITY |
61 |
|
Datasheet |
LT5520 | 16-WQFN Exposed Pad | Bulk | Active | General Purpose | 1.3GHz ~ 2.3GHz | 1 | -1dB | 15dB | Up Converter | 60mA | 4.5V ~ 5.25V | Surface Mount | 16-QFN (4x4) |
|
|
PE86X1014Double Balanced Mixer Operating |
4 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 5MHz ~ 1GHz | 2 | - | - | SMA Connectors | 40mA | - | Chassis Mount | - |
|
|
PE86X1013Double Balanced Mixer Operating |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | Radar, VSAT | 500kHz ~ 500MHz | 1 | - | - | SMA Connectors | - | - | Chassis Mount | Module |
RF Mixers Electronic Components
Explore RF Mixers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
