RF Directional Coupler
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CP0805A1960DWTRRF DIR COUPLER 1.93-1.99GHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 1.93GHz ~ 1.99GHz | 6.5 ± 1dB | PCS | 2.15dB | 3W | -15dB | -13dB | 0805 |
|
|
CP0805A2442BWTRRF DIR COUPLER 2.4-2.484GHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.484GHz | 10 ± 1dB | Wireless LAN | 0.9dB | 3W | - | - | 0805 |
|
|
CP0805A2442CWTRRF DIR COUPLER 2.4-2.484GHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.484GHz | 6 ± 1dB | Wireless LAN | 2.5dB | 3W | -14dB | -12dB | 0805 |
|
|
CP0805A2442DWTRRF DIR COUPLER 2.4-2.484GHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.484GHz | 5.5 ± 1dB | Wireless LAN | 2.4dB | 3W | -14dB | -12dB | 0805 |
|
CP0805A1441CWTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
CP0805A1441CSTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
CP0805A1441DSTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
CP0805A1880CSTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
CP0805A1441DWTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
CP0805A0902ESTRDIRECTIONAL COUPLER |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - |
|
|
DB0603N2400ANTR\500DIRECTIONAL COUPLER |
0 |
|
- |
- | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.5GHz | - | Cellular | 0.25dB | 10W | 23dB | 17dB | 0603 |
|

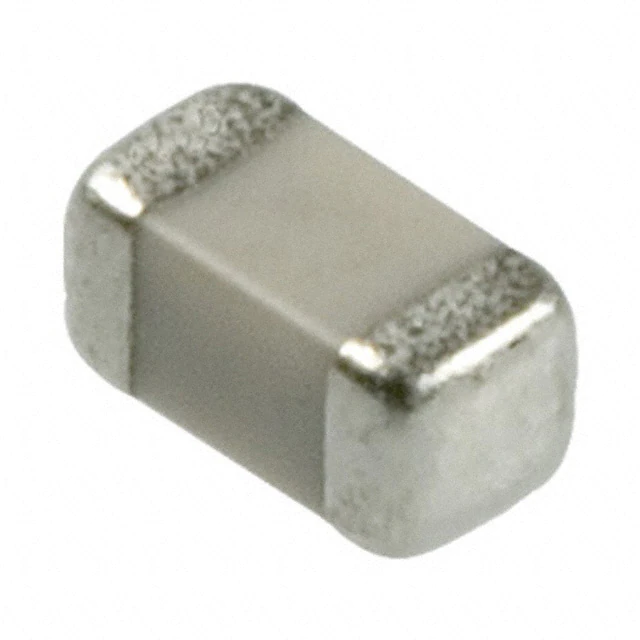

CP0603V0836CNTRRF DIR COUPLER 824-849MHZ 0603 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 824MHz ~ 849MHz | - | General Purpose | - | - | - | - | 0603 |
.jpg)
|
CP0603V1880BNTRRF DIR COUPLER 1.85-1.91GHZ 0603 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.85GHz ~ 1.91GHz | - | PCS | - | - | - | - | 0603 |
|
|
CP0402A2655ENTRRF DIR COUPLER 2655MHZ 0402 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 2.655GHz | - | - | - | 3W | - | - | 0402 |
|
|
CP0805A0836AWTRRF DIR COUPLER 824-849MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 824MHz ~ 849MHz | 16.5 ± 1db | AMPS | 0.25dB | 3W | -36dB | -24dB | 0805 |
|
|
CP0805A0836BWTRRF DIR COUPLER 824-849MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 824MHz ~ 849MHz | 19 ± 1dB | AMPS | 0.25dB | 3W | -29dB | -32dB | 0805 |
|
|
CP0805A0881AWTRRF DIR COUPLER 869-894MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 869MHz ~ 894MHz | 16 ± 1dB | AMPS | 0.25dB | 3W | -35dB | -23dB | 0805 |
|
|
CP0805A0881BWTRRF DIR COUPLER 869-894MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 869MHz ~ 894MHz | 18.5 ± 1dB | AMPS | 0.25dB | 3W | -28dB | -31dB | 0805 |
|
|
CP0805A0881CWTRRF DIR COUPLER 869-894MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 869MHz ~ 894MHz | 13.5 ± 1dB | AMPS | 0.5dB | 3W | -19dB | -23dB | 0805 |
|
|
CP0805A0902AWTRRF DIR COUPLER 890-915MHZ 0805 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Standard | 890MHz ~ 915MHz | 16 ± 1dB | GSM | 0.25dB | 3W | -24dB | -23dB | 0805 |
