RF Directional Coupler
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R432431000COUPLER: SMA 1-2GHZ 3DB |
0 |
|
Datasheet |
- | Bulk | Active | Standard | 1GHz ~ 2GHz | 3dB | General Purpose | 0.3dB | 100W | 25dB | - | - |
|
SMW19EC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
0 |
|
Datasheet |
- | Bag | Active | Standard | 40GHz ~ 60GHz | 20 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
SMW19EC001-10WG COUPLER WR-19 40-60 GHZ 10 DB |
0 |
|
Datasheet |
- | Bag | Active | Standard | 40GHz ~ 60GHz | 10 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
HH-107-SMAHYBRID,BROAD-BAND,180DEG |
0 |
|
- |
- | Bulk | Active | Standard | 2MHz ~ 200MHz | - | General Purpose | 1dB | 1W | 35dB | - | Module |
|

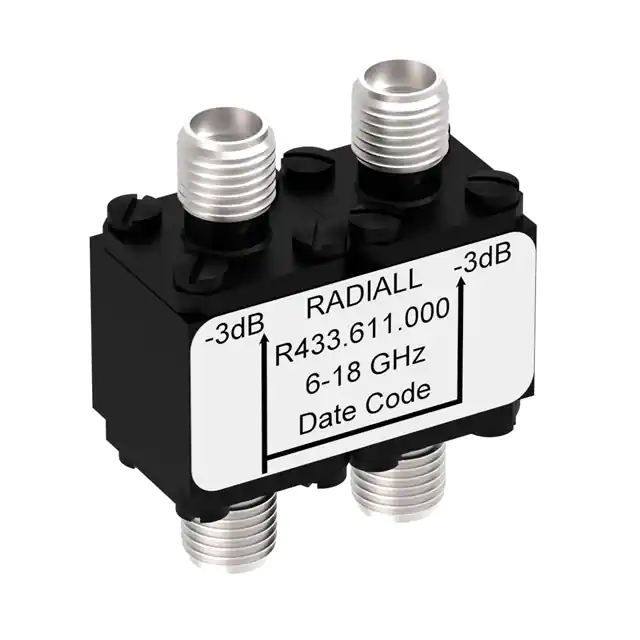

R433611000COUPLER: SMA 6-18GHZ 3DB |
0 |
|
Datasheet |
- | Bulk | Active | Standard | 6GHz ~ 18GHz | 3dB | General Purpose | 0.6dB | 30W | 16dB | - | - |
|
R433623000COUPLER: SMA 3.7-8.3GHZ 10DB FLA |
0 |
|
Datasheet |
- | Bulk | Active | Standard | 3.7GHz ~ 8.3GHz | 10dB | General Purpose | 1dB | 50W | - | - | - |
|
R432374000COUPLER: N 0.5-1GHZ 20DB |
0 |
|
Datasheet |
- | Bulk | Active | Standard | 500MHz ~ 1GHz | 20 ± 0.3dB | General Purpose | 0.4dB | 300W | - | - | - |
|
|
FMCP1146-30COUPLER 0.5-1 GHZ 500 W TYPE N |
0 |
|
Datasheet |
- | Bag | Active | Standard | 500MHz ~ 1GHz | 30 ± 0.8dB | General Purpose | 0.1dB | - | - | - | - |
|
|
FMCP1154HYBRID SMA 1.4MHZ-6GHZ 30 W |
0 |
|
Datasheet |
- | Bag | Active | Standard | 1.4GHz ~ 6GHz | 3dB | General Purpose | 1.2dB | - | 30dB | - | Module |
|
|
2020-4018-06COUPLER,DIRECTIONAL, |
0 |
|
- |
2020 | Bulk | Active | Standard | 7GHz ~ 12.4GHz | 6 ± 1dB | General Purpose | 0.4dB | 50W | - | - | - |
|
R433524000COUPLER: SMA 1.7-4.2GHZ 20DB FLA |
0 |
|
Datasheet |
- | Bulk | Active | Standard | 1.7GHz ~ 4.2GHz | 20 ± 0.8dB | General Purpose | 0.4dB | 50W | - | - | - |
|
|
FMWCP1083-50WG COUPLER WR-112 6.57-9.99 GHZ |
0 |
|
Datasheet |
- | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 50 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
FMWCP1083-30WG COUPLER WR-112 6.57-9.99 GHZ |
0 |
|
Datasheet |
- | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 30 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
ZCDC10-06263-S+DIR COUP SMA-F 6-26.5GHZ |
0 |
|
- |
- | Tray | Active | Standard | 6GHz ~ 26.5GHz | 10 ± 1.5dB | Cellular | 1dB | 20W | 29dB | 28dB | - |
|
|
FMWCP1080-20WG COUPLER WR-15 50-75 GHZ 20 DB |
0 |
|
Datasheet |
- | Bag | Active | Standard | 50GHz ~ 75GHz | 20 ± 1dB | General Purpose | 1dB | - | - | - | Module |
|
|
SMW19HC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
SH7223HYBRID SMA 2MHZ-18GHZ 50 W |
0 |
|
Datasheet |
- | Bag | Active | Standard | 2GHz ~ 18GHz | 3dB | General Purpose | - | - | 15dB | - | Module |
|
|
MC0626-10COUPLER 6-26.5 GHZ 10 W 2.92MM |
0 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
FMWCP1086S-40WG COUPLER WR-62 11.9-18 GHZ 40 |
0 |
|
Datasheet |
- | Bag | Active | Standard | 11.9GHz ~ 18GHz | 40 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
|
|
FMWCP1086S-30WG COUPLER WR-62 11.9-18 GHZ 30 |
0 |
|
Datasheet |
- | Bag | Active | Standard | 11.9GHz ~ 18GHz | 30 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
RF Directional Coupler Electronic Components
Explore RF Directional Coupler electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
